SICK MAX Series User Manual

3
Damping
4
Diameter of the pressure pipe
5
Position magnet
MAX30
2
3
1
45 5
L ±0.5 (0.02)
28.2
(1.11)
21.2 -0.2
(0.83 -0.01)
11.5
(0.45)
Ø 31 f7
(1.22)
Ø 24
(0.94)

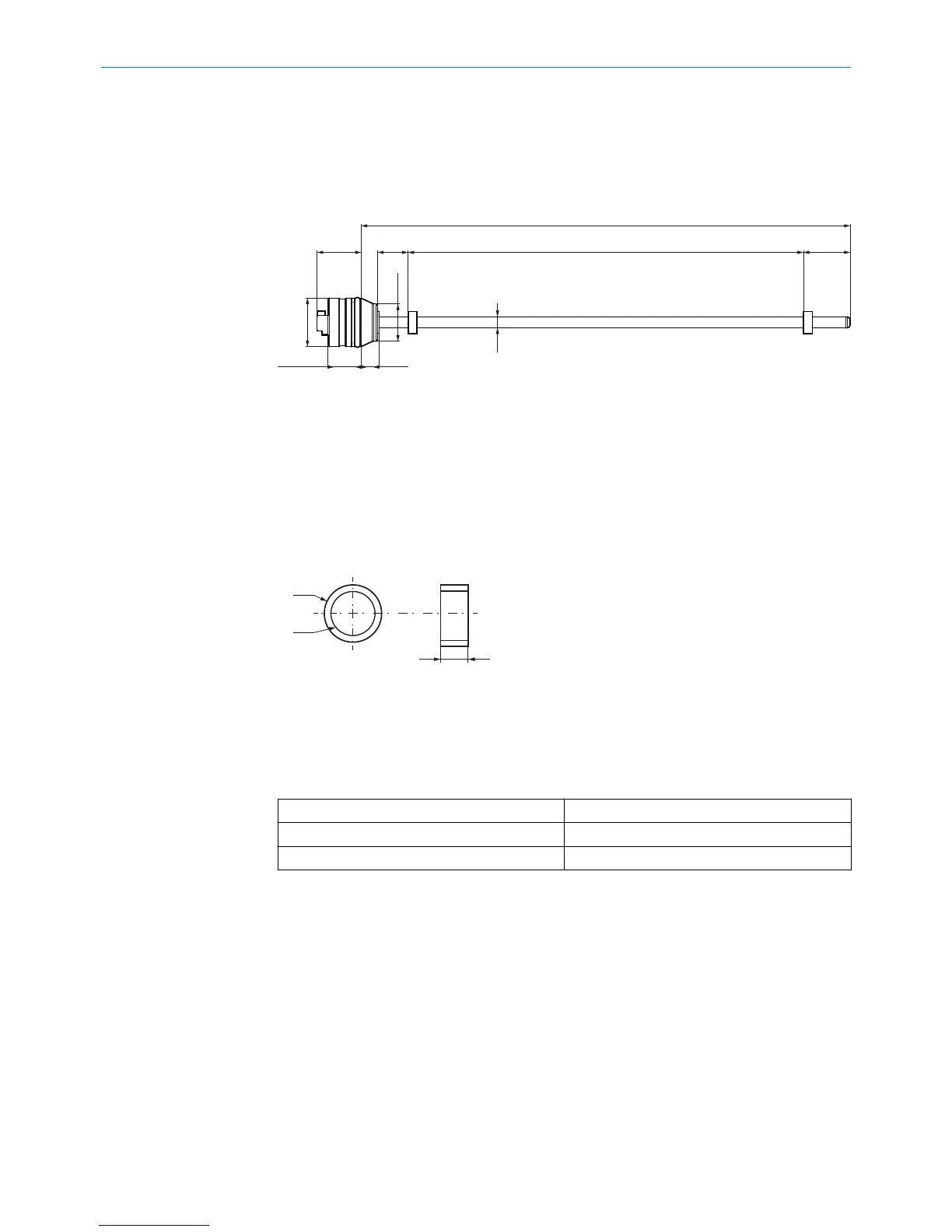

Figure 33: MAX30 dimensional drawing
1
Null zone
2
Measuring range
3
Damping
4
Diameter of the pressure pipe
5
Position magnet
10.4 Position magnet dimensions
1
2
3
Figure 34: Dimensional drawing for position magnet
1
Outer diameter
2
Inner diameter
3
Height
Table 42: Dimensions of position magnet
Outer diameter 17.4 mm ± 0.1
Inner diameter 12.0 mm ± 0.1
Height 10.6 mm ± 0.1
Max. surface pressure or mechanical load, e.g., by spring washers: 40 N/mm
2
in the
axial direction.
TECHNICAL DATA 10
8022793/ZXZ4/2018-07-24 | SICK O P E R A T I N G I N S T R U C T I O N S | MAX
49
Subject to change without notice
