SICK MAX Series User Manual

11.2 Spare parts
O-ring
Included with delivery (installed). Not available as accessory. (Manufacturer: Parker)
Ø 40.87
(1.61)
Ø 3.53
(0.14)

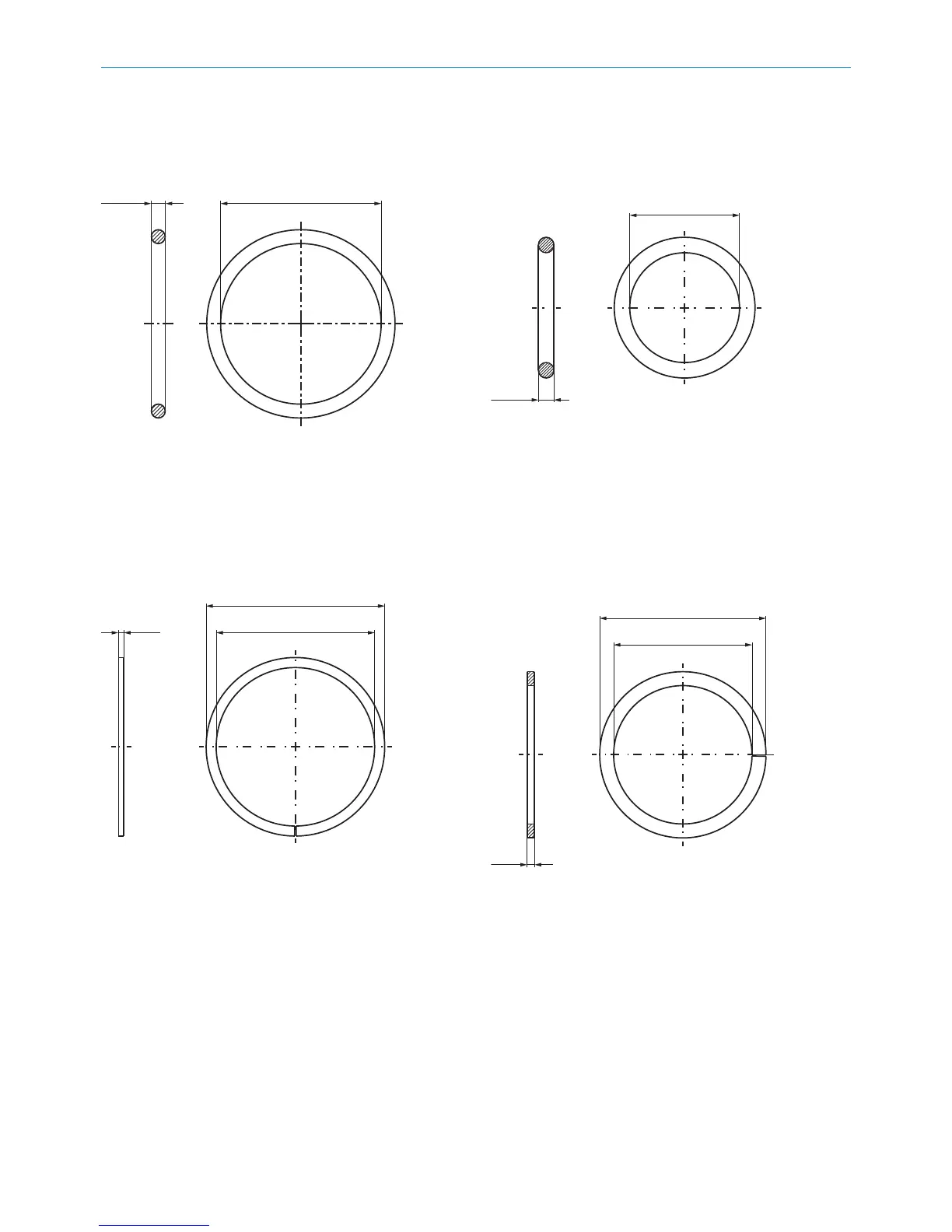

Figure 41: O ring – MAX48
Ø 3.53
(0.14)
Ø 24.99
(0.98)
Figure 42: O ring – MAX30
•
Material: NBR 70
•
Dimensions (MAX48): 40.87 x 3.53
•
Dimensions (MAX30): 24.99 x 3.53
Support ring
Included with delivery (installed). Available as accessory.
Ø 48
(1.89)
Ø 42.6
(1.68)
1.4
(0.06)
Figure 43: Support ring – MAX48
1.4
(0.06)
Ø 31
(1.22)
Ø 25.8
(1.02)
Figure 44: Support ring – MAX30
•
Material: PTFE
•
Dimensions (MAX48): 42.6 x 48.0 x 1.4
•
Dimensions (MAX30): 25.8 x 32.0 x 1.4
M12 flange
Included with delivery (installed). Available as accessory.
•
Material: nickel-plated brass housing, NBR 70 O-ring
•
Dimensions: M12 x 1.20 x 20 mm - 14 mm hole pattern
•
Mounting: 4 x M3x6 screws (not included with delivery)
ANNEX 11
8022793/ZXZ4/2018-07-24 | SICK O P E R A T I N G I N S T R U C T I O N S | MAX
53
Subject to change without notice
