Circlip
Not included with delivery. Available as accessory. (Manufacturer: Smalley)
ID
OD
H
GAP

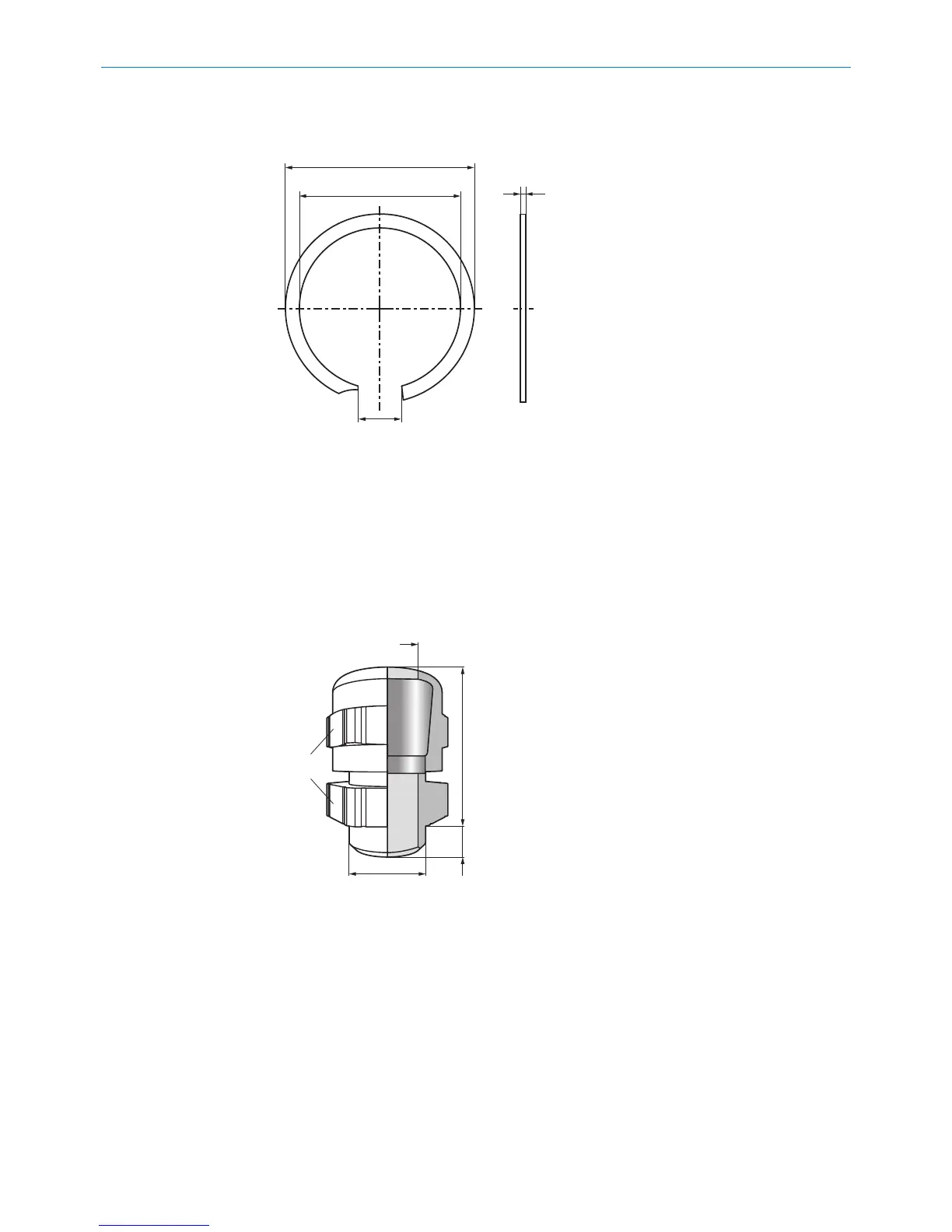

Figure 39: Circlip
•
Material: Stainless steel
•
Dimensions: OD x ID x H 19.18 x 18.0 x 0.94 (mm)
For installing the cable connection
Cable gland
Not included with delivery. Available as accessory.
1
2
3
4
SW x E
Figure 40: Cable gland
1
Ø 8 ... 2 mm
2
21 mm
3
5 mm
4
M12 x 1.5
•
Material: nickel-plated brass housing
•
Dimensions: SW x E (17 x 18.9 mm)
11
ANNEX
52
O P E R A T I N G I N S T R U C T I O N S | MAX 8022793/ZXZ4/2018-07-24 | SICK
Subject to change without notice
