SICK MAX Series User Manual

1 2

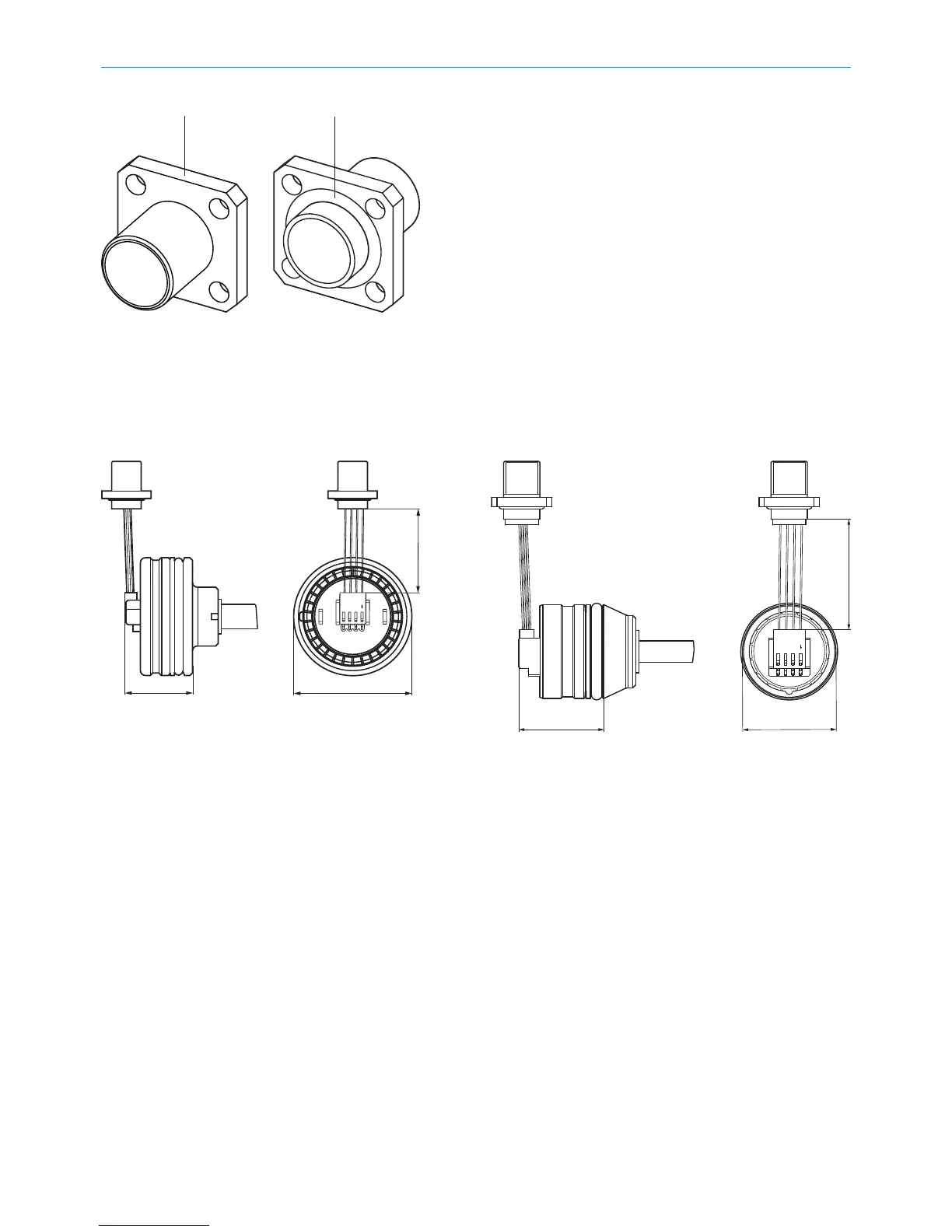

Figure 45: Accessories for M12 connector system
1
M12 flange
2
O-ring
M12 connecting cable
Included with delivery (installed). Available as accessory.
Ø 48 f7
(1.89)
1
27.6 -0.2
(1.09 -0.01)
Figure 46: M12 connecting cable – MAX48
1
Wire/cable length
1
Ø 31 f7
(1.22)
28.2 ± 0.2
(1.11 ± 0.01)
Figure 47: M12 connecting cable – MAX30
•
Material: Glass fiber reinforced polyamide M12 male connector, nickel-/gold-plated brass contacts
•
Dimensions: 060 ... 240 mm cable lengths
Cable connector
Included with delivery (installed). Available as accessory.
11 ANNEX
54
O P E R A T I N G I N S T R U C T I O N S | MAX 8022793/ZXZ4/2018-07-24 | SICK
Subject to change without notice
