Line connection and line-side power components
3.8 Line reactors
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
105

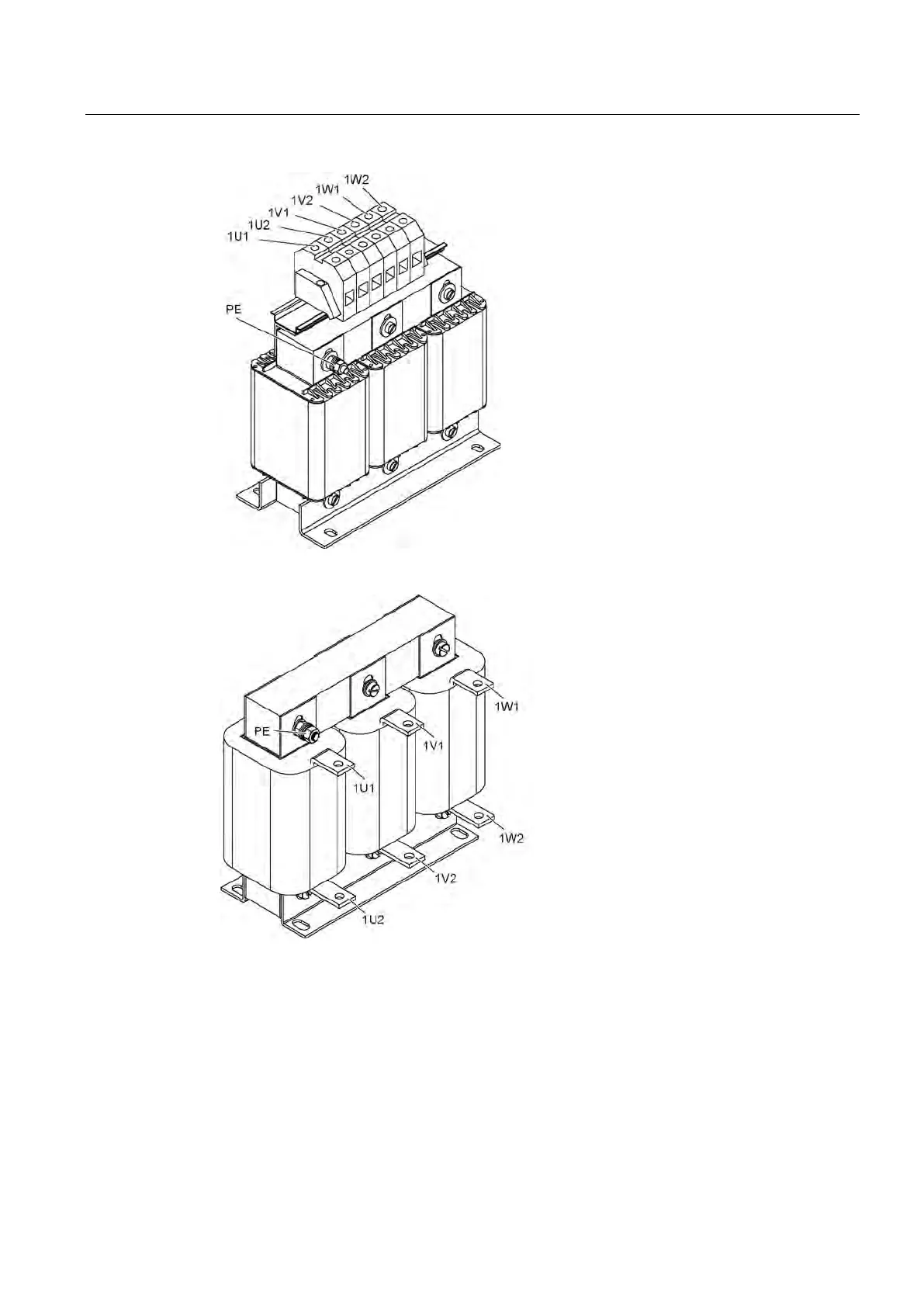

Figure 3-40 Interface overview, line reactor for Basic Line Modules (40 kW)
Figure 3-41 Interface overview, line reactor for Basic Line Modules (100 kW)
