Line Modules Booksize
4.7 Basic Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
263

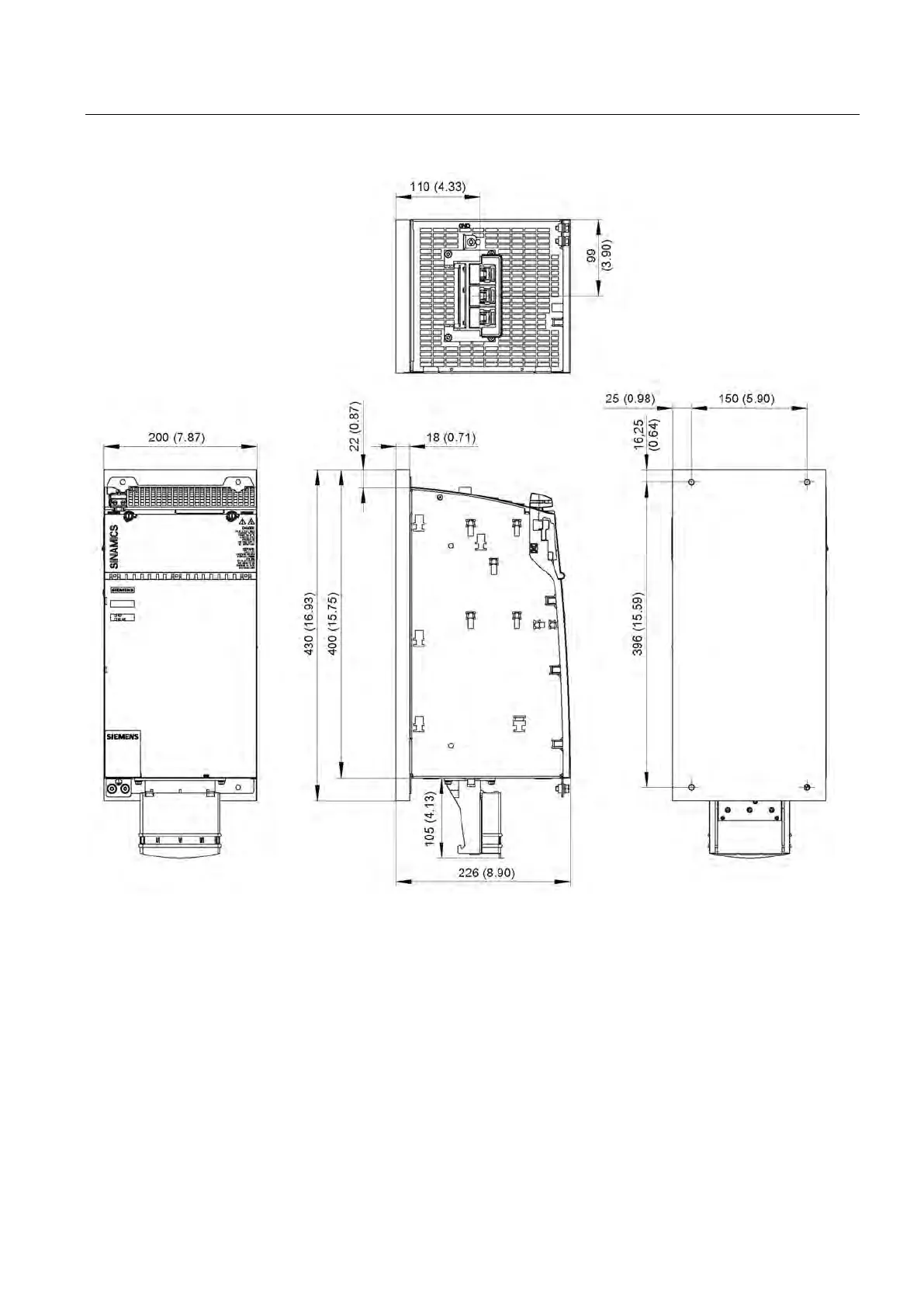

Figure 4-66 Dimension drawing of 100 kW Basic Line Module with cold plate, all dimensions in mm and (inches)
