Motor Modules Booksize
6.2 Motor Modules with internal air cooling
Booksize Power Units
390 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

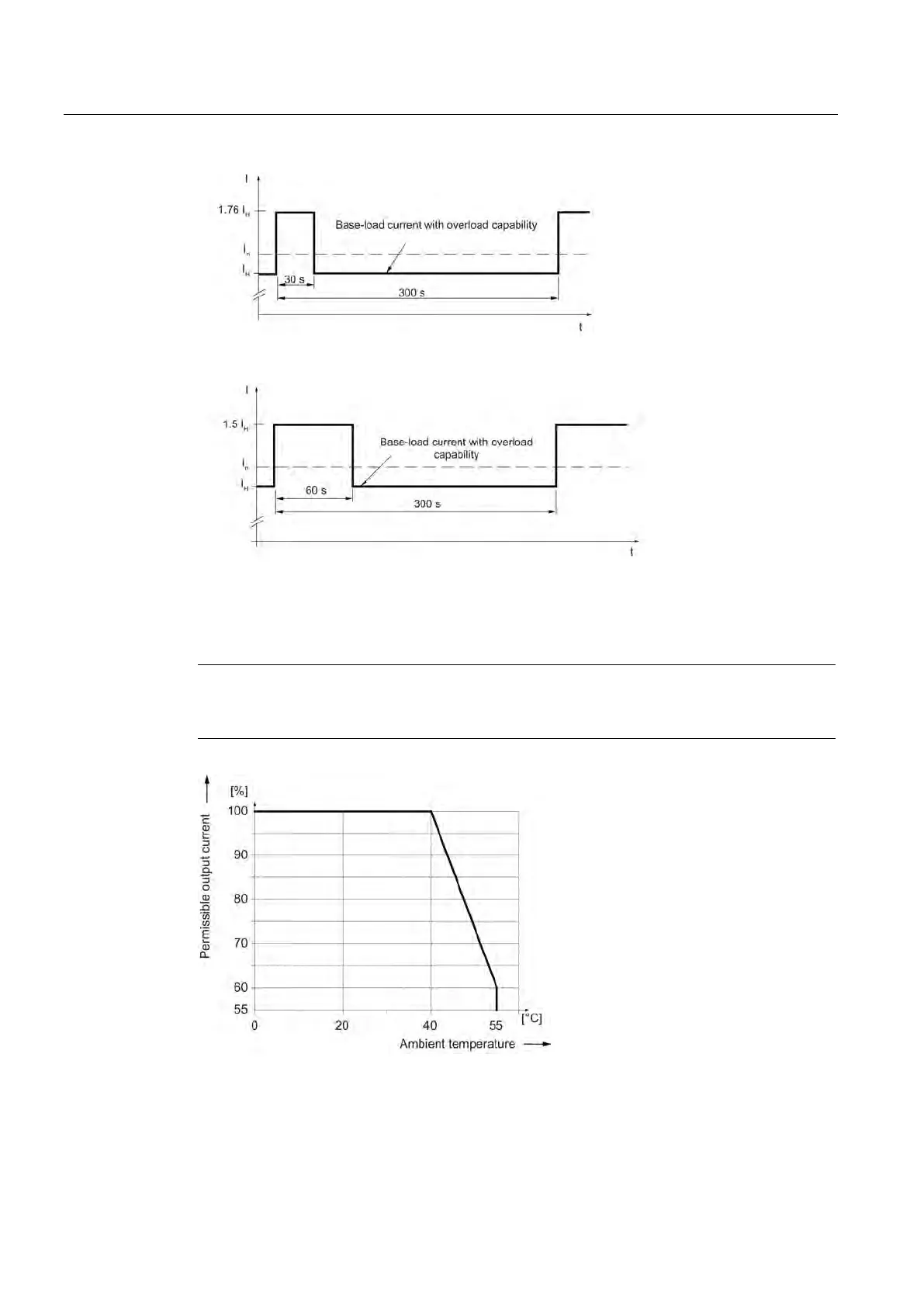

Figure 6-16 Duty cycle with 30 s overload for a duty cycle duration of 300 s
Figure 6-17 Duty cycle with 60 s overload for a duty cycle duration of 300 s
Derating characteristics for Motor Modules Booksize
Note
For additional information, see Chapter
Derating as a function of the installation altitude and
(Page 47).
Figure 6-18 Output current as a function of the ambient temperature
