Motor Modules Booksize
6.2 Motor Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
391

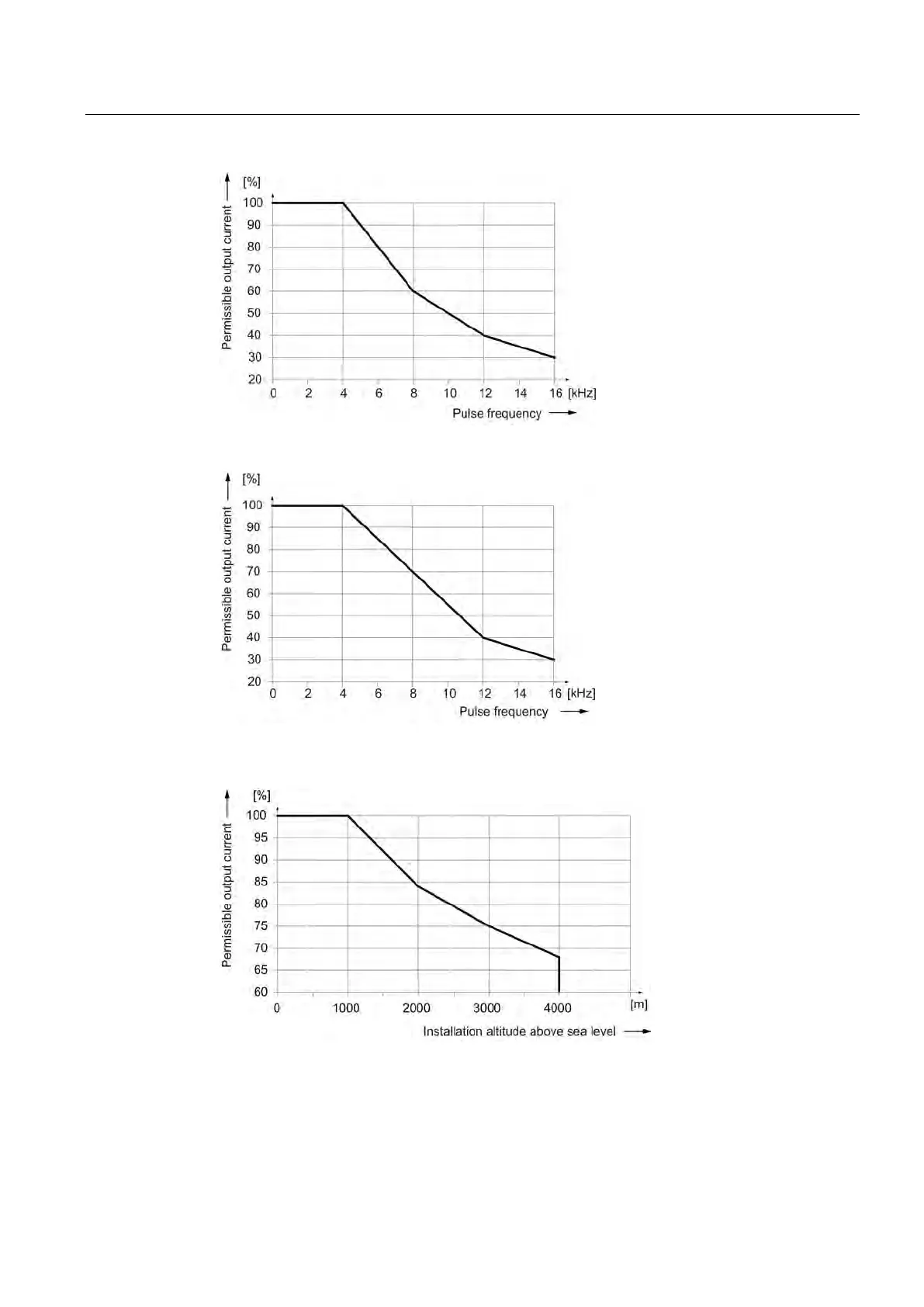

Figure 6-19 Output current as a function of the pulse frequency
Figure 6-20 Output current as a function of the pulse frequency for 200 A Motor Modules
(applies from order number 6SL312x-1TE32-0AA4)
Figure 6-21 Output current as a function of the installation altitude
