Siemens 6SL3120-2TE21-0AA3

Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
413

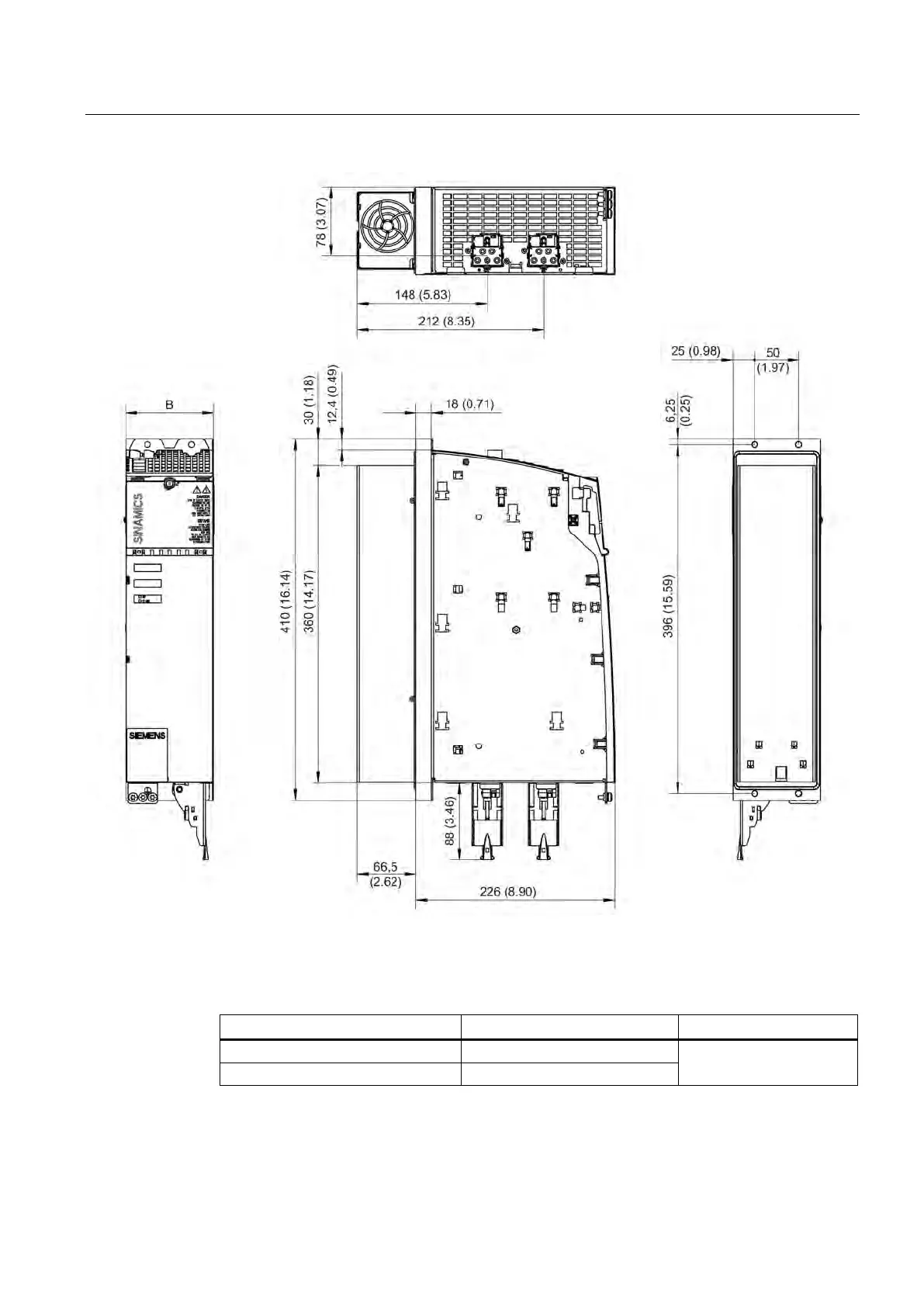

Figure 6-39 Dimension drawing of 30 A and 2 x 18 A Motor Modules Booksize with external air cooling, all dimensions in
mm and (inches); example: 2 x 18 A Double Motor Module
Table 6- 23 Dimensions of 30 A and 2 x 18 A Motor Modules Booksize with external air cooling
Motor Module
Order number
B [mm] (inches)
Single Motor Module 30 A
6SL3121-1TE23-0AAx
100 (3.94)
Double Motor Module 18 A
6SL3121-2TE21-8AAx
