6.3 Motor Module with external air cooling
Booksize Power Units
416 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

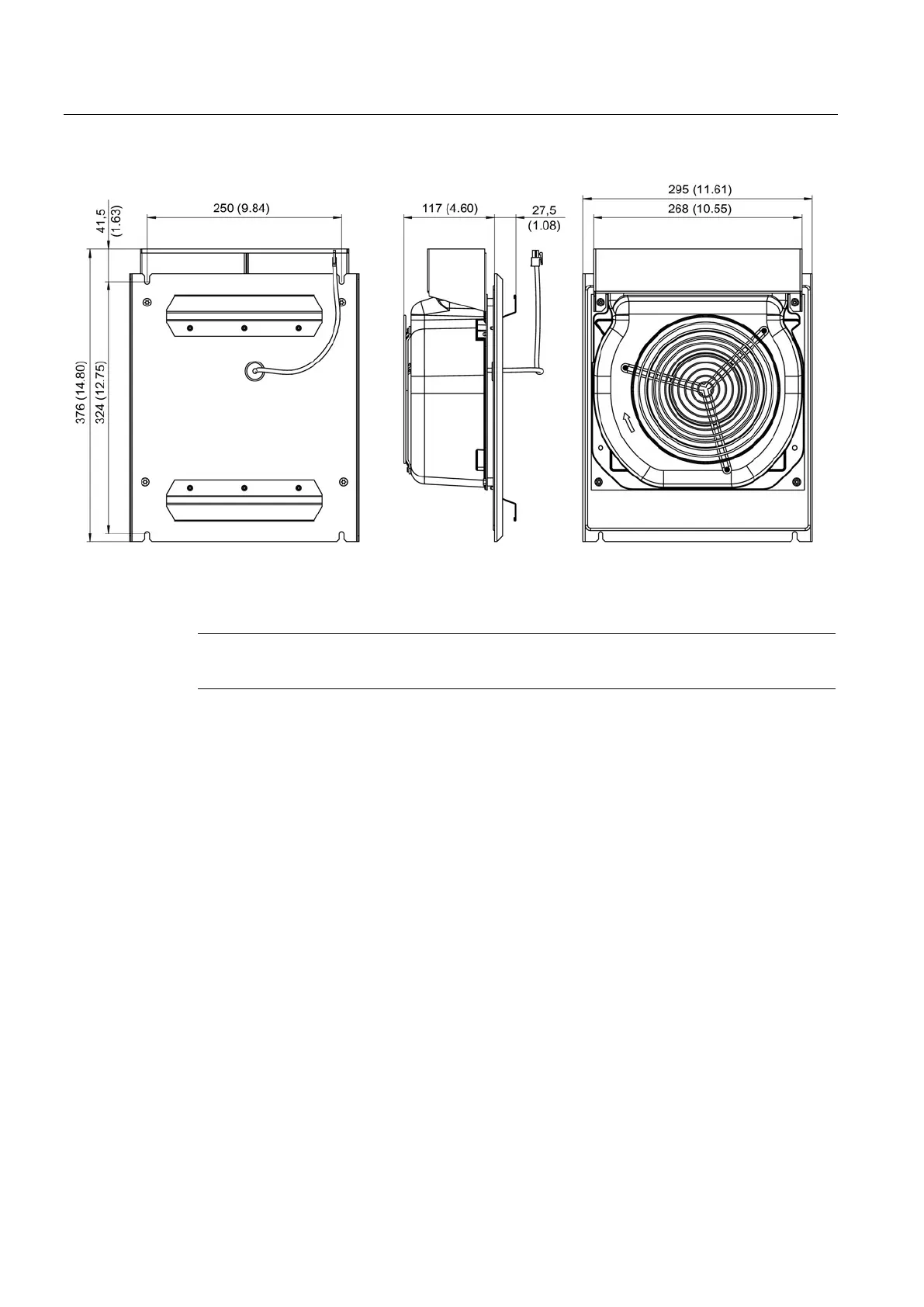

Figure 6-42 Dimension drawing of fan for 132 A and 200 A Motor Modules Booksize with external air cooling, all
dimensions in mm and (inches)
Note
The fans for the 132 kW and 200 kW Motor Modules are included in the scope of delivery.
