Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
415

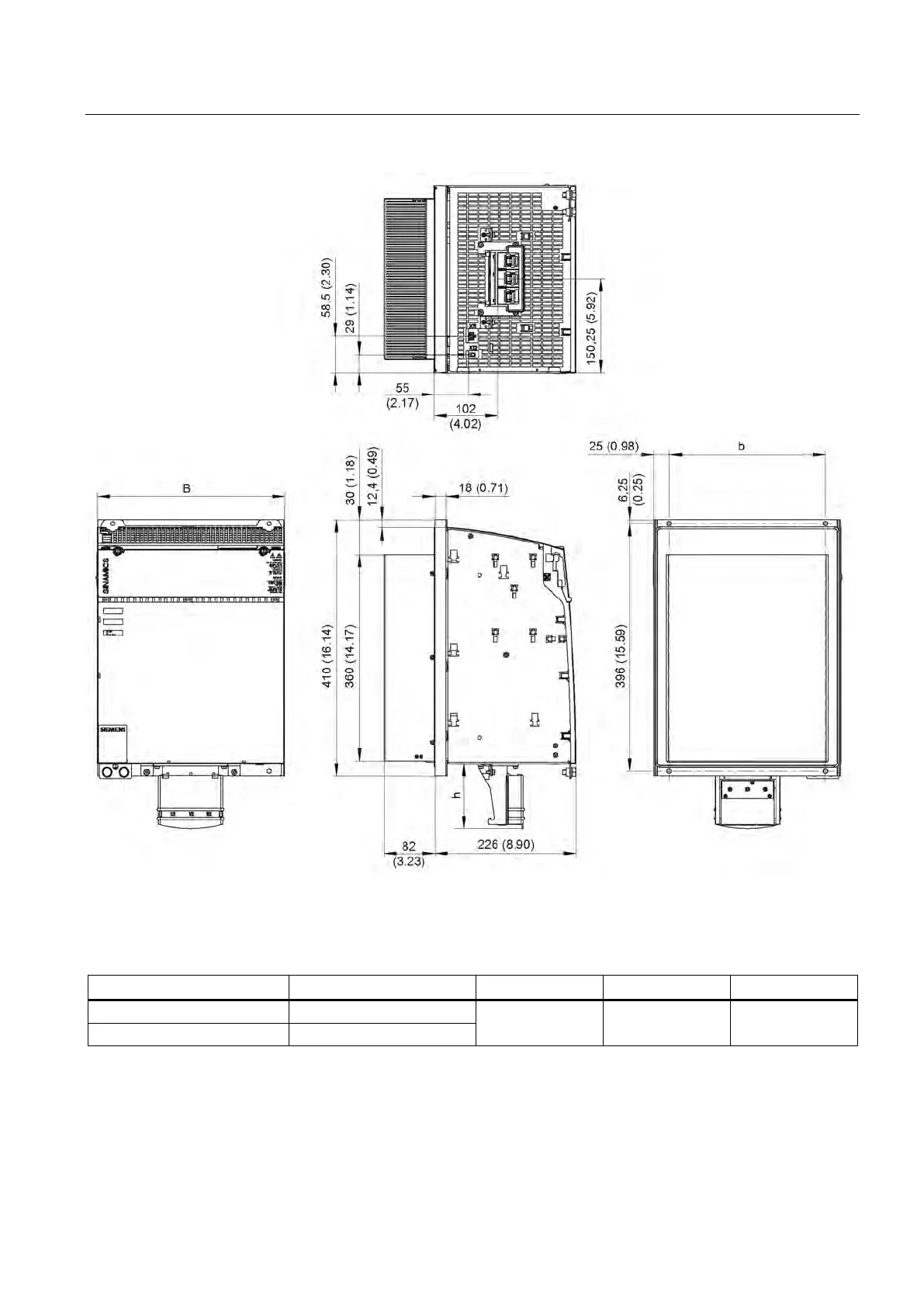

Figure 6-41 Dimension drawing of 132 A and 200 A Motor Modules Booksize, all dimensions in mm and (inches);
example: 200 A Single Motor Module
Table 6- 25 Dimensions of 132 A and 200 A Motor Modules Booksize with external air cooling
Single Motor Module 132 A 6SL3121-1TE31-3AAx
300 (11.81)
250 (9.84)
105 (4.13)
Single Motor Module 200 A
