UMSITRAPDS3-1 Model Designations and Specifications
November 2005
9-33
1
2
3
4
5
10
11
Process connection ¼ -18NPT
Mounting thread M10 or 7/16 –20 UNF
Connection side
Electronics side, digital display
Sealing screw
Blanking plug (only for PG 13.5 and Han 7D)
Access cover over magnetic pushbuttons
12
Electrical connection:
Cable gland Pg 13.5
1, 2
M20 x 1.5
2
or ½ - 14 NPT or Han 7D plug
1, 2
1 – not for explosion proof degree of protection
2 – not in FM exp/CSA degree of protection
This Figure is for Models 7MF4433 and 7MF4533 with
H03 option.

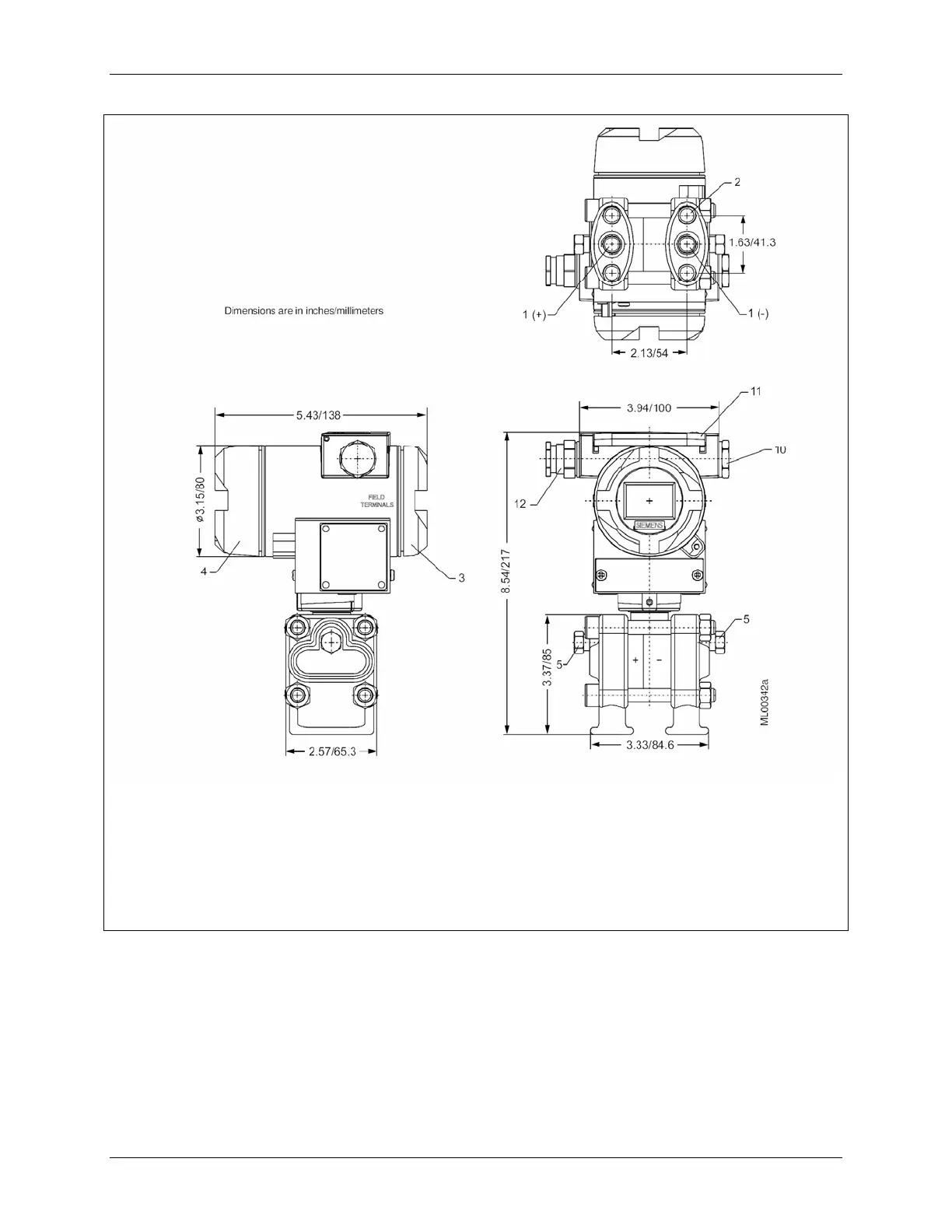

FIGURE 9-3 Dimensions, Differential Pressure and Flow Models with H03 Option
