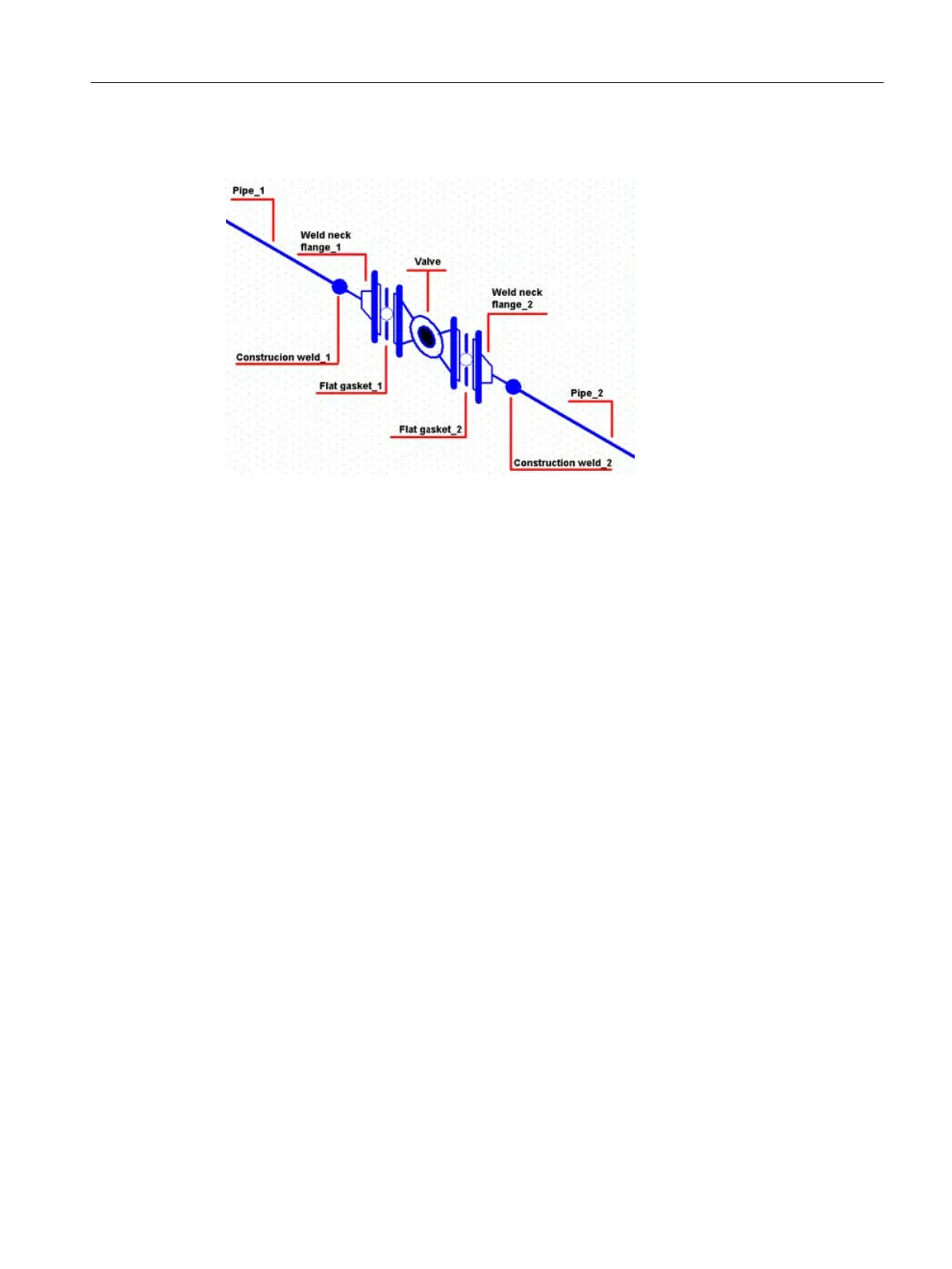

Result on the isometric drawing
8.8 "Fastening table" tab
8.8.1
General information
This tab is only available for COMOS pipe specs.
On the "Fastening table" tab, you determine the combinations for attachment types for certain
connection types.
8.8.2 Configuring the fastening table
The table is composed of the values that have been selected at the pipe part in use on the
"Attributes > Connector <1-n>" tab, "Attachment type" list.
Requirement
● You have drawn pipe parts with fastening connectors onto the "Pipe parts" tab.
Connections: "CM<counter>"
Example: Pipe with flange
● You have drawn fastening parts onto the "Pipe parts" tab.
● You have opened the "Fastening table" tab.
Configuring pipe specs
8.8 "Fastening table" tab
PipeSpec Designer
Operating Manual, 09/2014, A5E32076948-AA 105

Siemens COMOS Specifications

General

Manufacturer	Siemens
Description	COMOS is plant engineering software for the process industry. It manages plant projects and documentation. It covers the entire plant lifecycle from engineering and design to operation and maintenance.
Functionality	Plant design and engineering
Integration	Integrates with Siemens TIA Portal, SIMATIC PCS 7, and other third-party systems
Data Management	Centralized data management
Modules	Includes modules for process engineering, electrical engineering, instrumentation, and automation
Collaboration	Supports multi-disciplinary team collaboration with role-based access
Documentation	Automated generation of documentation (e.g., P&IDs, loop diagrams, instrument lists), document management, version control.
Customization	Highly customizable to meet specific project requirements and industry standards. Allows for scripting and API integration.
Industry Standards	ISO, IEC
