Siemens COMOS User Manual

Database reference
13

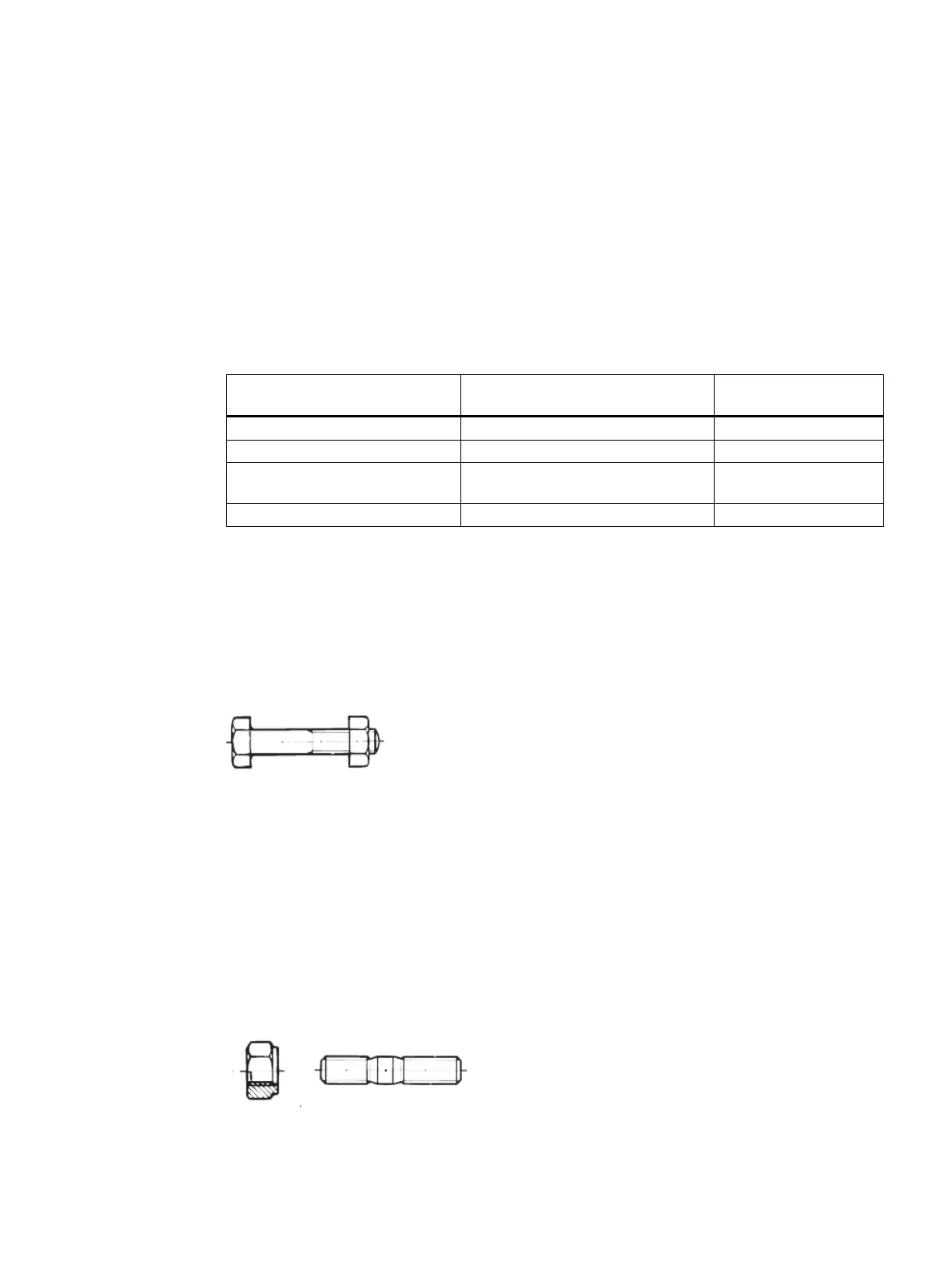

13.1 Bolted types
Standard table for bolted types
"Standard tables > Y10 > M23 > A20 > Y10M23N00028 Bolted types"
Bolt type Description of the standard table entry "Value 1" of the standard
table entry
Normal bolted connection "Normal" "1"
Blind hole bolted connection "Threaded blind hole" "2"
Normal and blind hole bolted con‐
nection
"Threaded hole" "3"
Clamp bolted connection "Cycle (wafer type)" "4"
Normal bolted connection
Normal bolted connection is used as standard.
Different types of bolts can be used for a normal bolted connection, e.g. screw bolts with two
nuts.
Example: DIN 601, ISO 4016***
Hexagon bolt Mxx
1 x nut Mxx
Optional: 2 x washers
Blind hole bolted connection
Blind
hole bolted connections are used when flange plates have blind holes. This means that
the bolt cannot be pushed through. Different types of bolts can be used, e.g. hexagon bolts
(without nuts), stud bolts (with nut).
Example:
Stud bolt Mxx
PipeSpec Designer
Operating Manual, 09/2014, A5E32076948-AA 145
