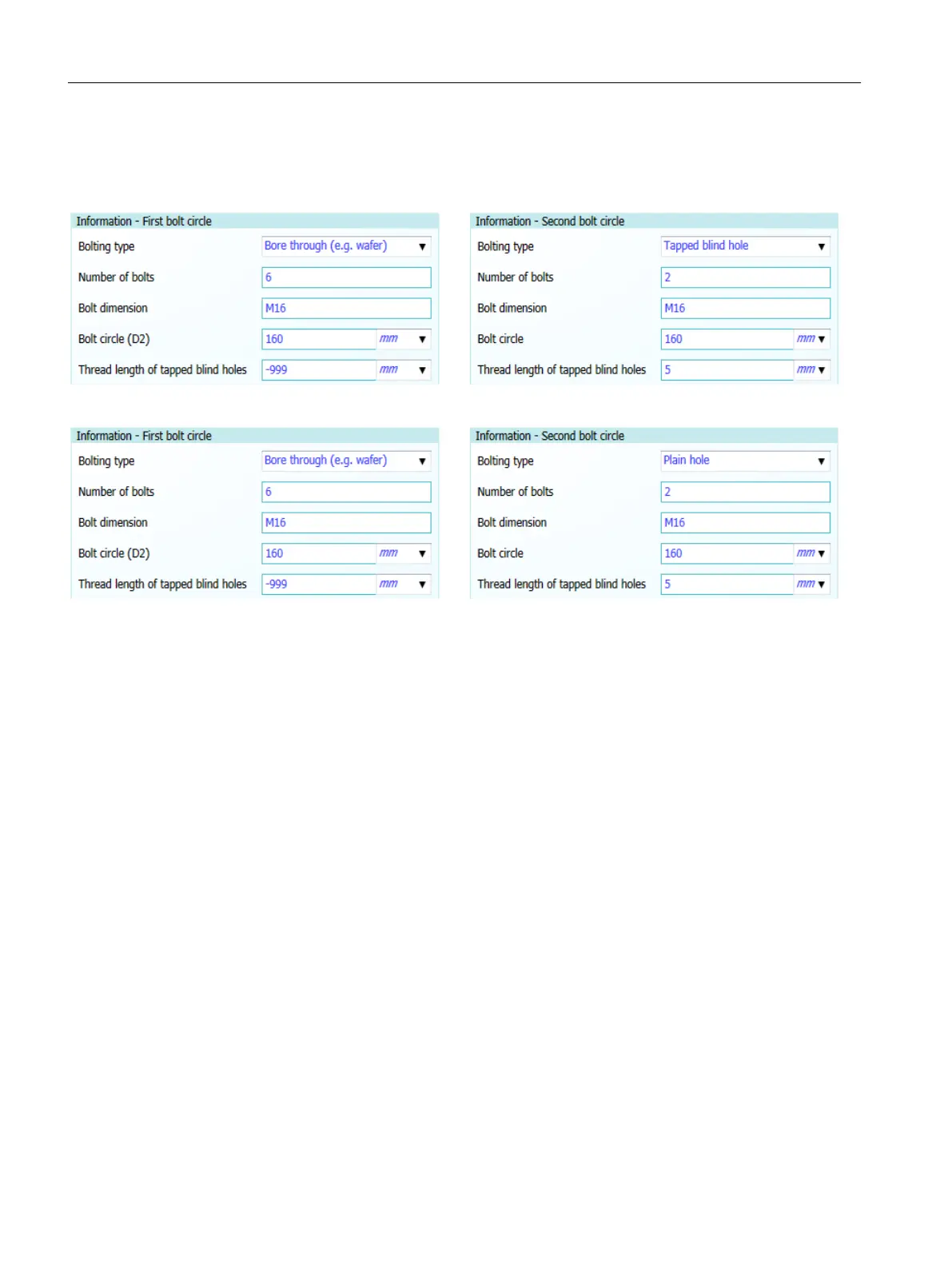

Define the following settings for bolt sets in the "Connection 1" and "Connection 2" tabs at the
valve in the pipe parts catalog :
●
"Connection 1":
● "Connection 2":
Result
After you have connected the pipe parts, a bolt set group is created. If you have performed
the bolt calculation, the following bolt sets are generated:
●
One for the "normal" bolt type that connects all three pipe parts with one another
● One for the "Threaded blind hole" bolt type, which connects the valve with the flange on
one side
● One for the "Normal" bolt type, which connects the valve with the flange on the other side
8.12.7.3 Deleting a bolt set group
Procedure
To delete a bolt set group, dissolve the connection of the pipe parts that are connected to the
bolt set group.
Result
The bolt set group and all associated bolt sets are deleted.
If the bolt sets in a group connect three pipe parts and you only dissolve the connection
between two pipe parts, the bolt set of the connection that you have not separated will also be
deleted. See also chapter Example of a connection via a bolt set group (Page 115).
Configuring pipe specs
8.12 Using bolt sets in pipe specs
PipeSpec Designer
116 Operating Manual, 09/2014, A5E32076948-AA
