3. Select "New > New base object" in the context menu.
COMOS creates the base object for the new bolt set.
4.
Open the properties of the bolt set.
5. Enter the name and the description of the bolt set in the "General" control group on the
"System" tab.
6. Go to the "Attributes > Bolt set part" tab.
You are working in the "Bolt set definition" control group.

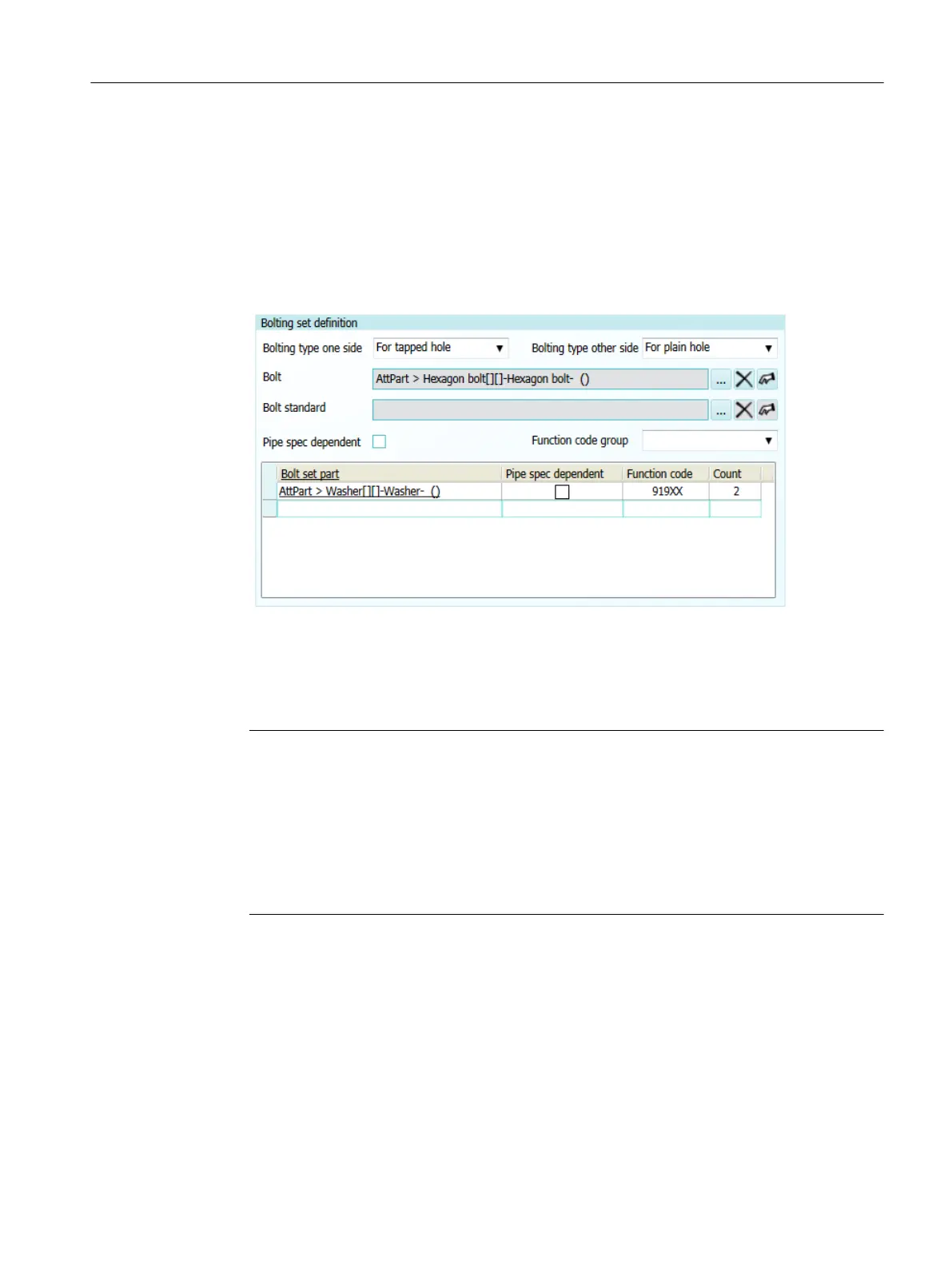

7. Define the bolted connection type for both sides of the bolt set in the "Type on one side"
and "Type on the other side" fields.
8.
In the Navigator, select the base object of the bolt which is to belong to the bolt set.
9. Use drag&drop to move the bolt from the Navigator to the "Bolt" field.
Note
Pipe spec-dependent bolts
The
content in the 'Bolt' field is not analyzed if the following conditions are fulfilled. Instead,
the bolt that has been defined in the pipe spec is used.
● The "Pipe spec-dependent" option is activated.
● The function code group of the selected bolt is set in the "Function code group" list. The
function code group is made up of the function code with placeholders. Example:
"919XX"
10.Set a reference to a geometry table for bolts in the "Bolt standard" field.
If
you do not enter a reference in the "Bolt standard" field, make sure that a reference to a
geometry table for bolts exists at the base object of the bolt in the pipe part catalog, "3D
geometry" tab.
11.In the Navigator, select the base object of the nut or washer which is to belong to the bolt
set.
Preparing for creation and maintenance of pipe specs
3.8 Preparing bolt sets
PipeSpec Designer
Operating Manual, 09/2014, A5E32076948-AA 65
