26 RM400 C Models U24802-J-Z146-2-7600
4
Installing the system unit
4.2 Mounting the stabilizers

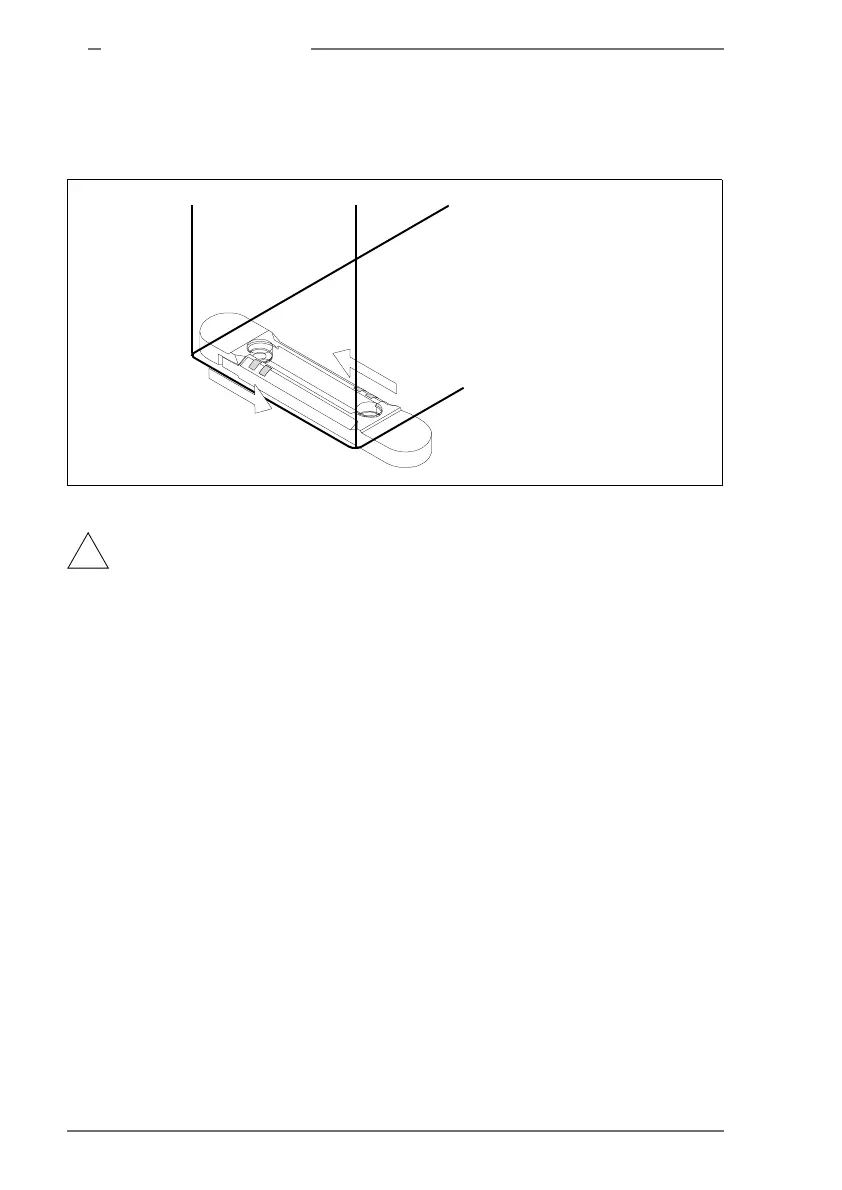

Figure 3: Mounting the stabilizers
It is essential that you mount the stabilizers, as otherwise the stability of
the system cannot be guaranteed.
The system comes with two stabilizers per cabinet. Each stabilizer is in two parts
which slot into one another and must be pushed together until they lock into place.
The stabilizers can only be mounted if the system is standing on a flat surface.
Ê Slide every part of the stabilizer around the feet from both sides of the system
unit.
Ê Slot the two parts into one another until they lock in place.
Ê Repeat the procedure for the other pair of system cabinet feet.
!
