28 RM400 C Models U24802-J-Z146-2-7600
4
Installing the system unit
Attaching the keyboard
Ê Plug the connector on one end of the keyboard connecting cable into the
matching socket on the underside of the keyboard. The cable connector must
lock into place.
Ê Plug the other end of the keyboard connecting cable into the 6-pin socket
labeled Keyboard (directly beside the mouse socket) on the system unit
backplane.
The arrow on the cable connector must be at the top as you push the connector
into the socket.
Attaching the monitor
33 cm (14"), 35 cm (15"), 40 cm (17") and 50 cm (21") monitors can be attached to
the system. Monitors are shipped with a power cord and a connecting cable.
If you have installed the optional PCI graphics controller, you must connect monitors
to this controller, as the default SVGA socket can then not be used. The optional PCI
graphics controller provides a higher resolution.
– Attaching monitors with the optional PCI graphics controller
Ê Plug the 15-pin connector on the monitor connecting cable into the 15-pin
socket of the PCI graphics controller and tighten the securing screws.

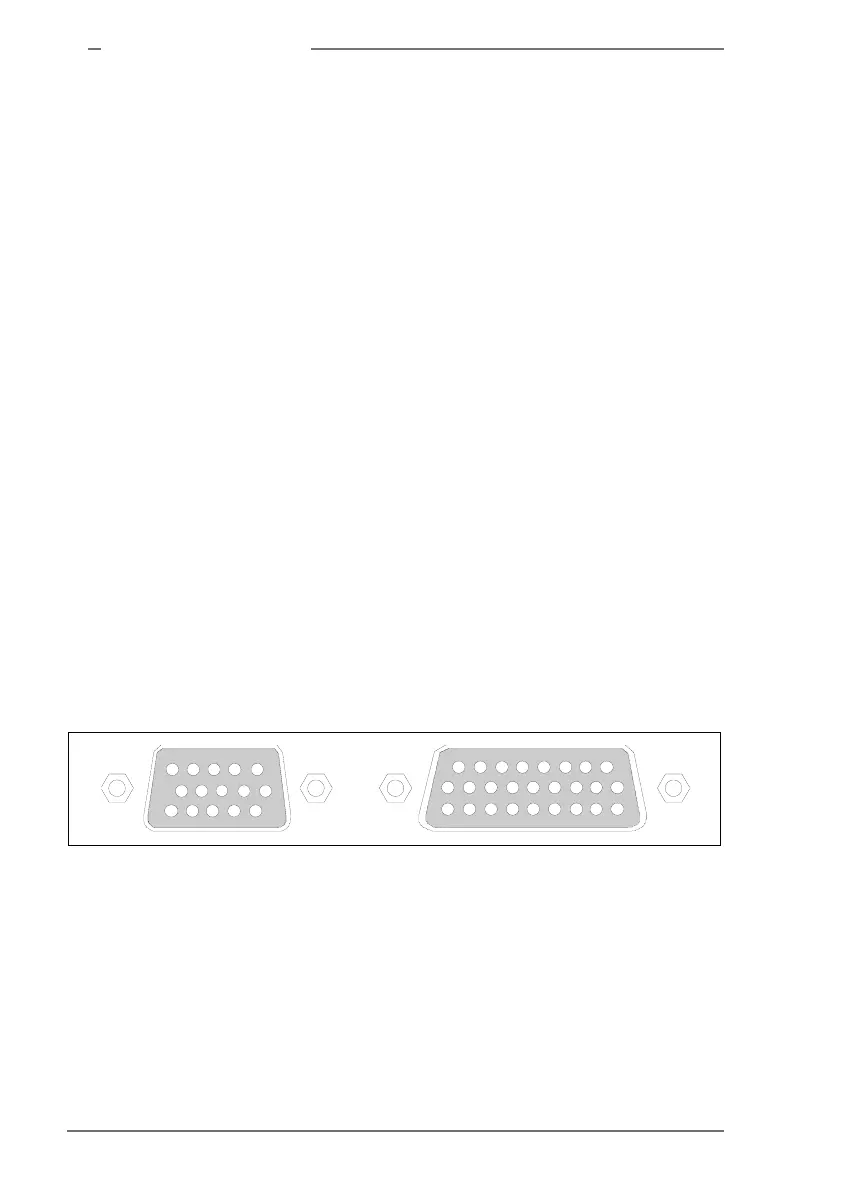

Figure 5: Optional PCI graphics controller (CG16, CG17)
These two sockets are on one of the card slots for controllers on the rear of the
system unit. The 15-pin socket (left) is designed for attaching monitors to the
PCI graphics controller; the 26-pin socket (right) is reserved for future
enhancements.
Ê Plug the other end of the cable into the matching socket on the back of the
monitor.
