Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
148 Configuration Manual, 10/2014, C79000-G8976-C187-22
● X (black) The port is a member of the aggregation, but is not currently active.
In this case, port not active means that the port was removed dynamically from the
aggregation. The reasons for this may be as follows:
– Ports of the aggregation have different configurations (for example speed)
– The port is not connected with the same device
– The port does not have a link
– The port was not authenticated according to 802.1x
– ...
● X (blue) The port is a member of the aggregation and is its master port and is not active.
a SCALANCE X414-3E, although the gigabit ports 5.1 and 5.2 can be configured with
a Fast Ethernet port in an aggregation, they will never be active along with other Fast
Ethernet ports, even if they are set to Fast Ethernet.
Creating a new link aggregation

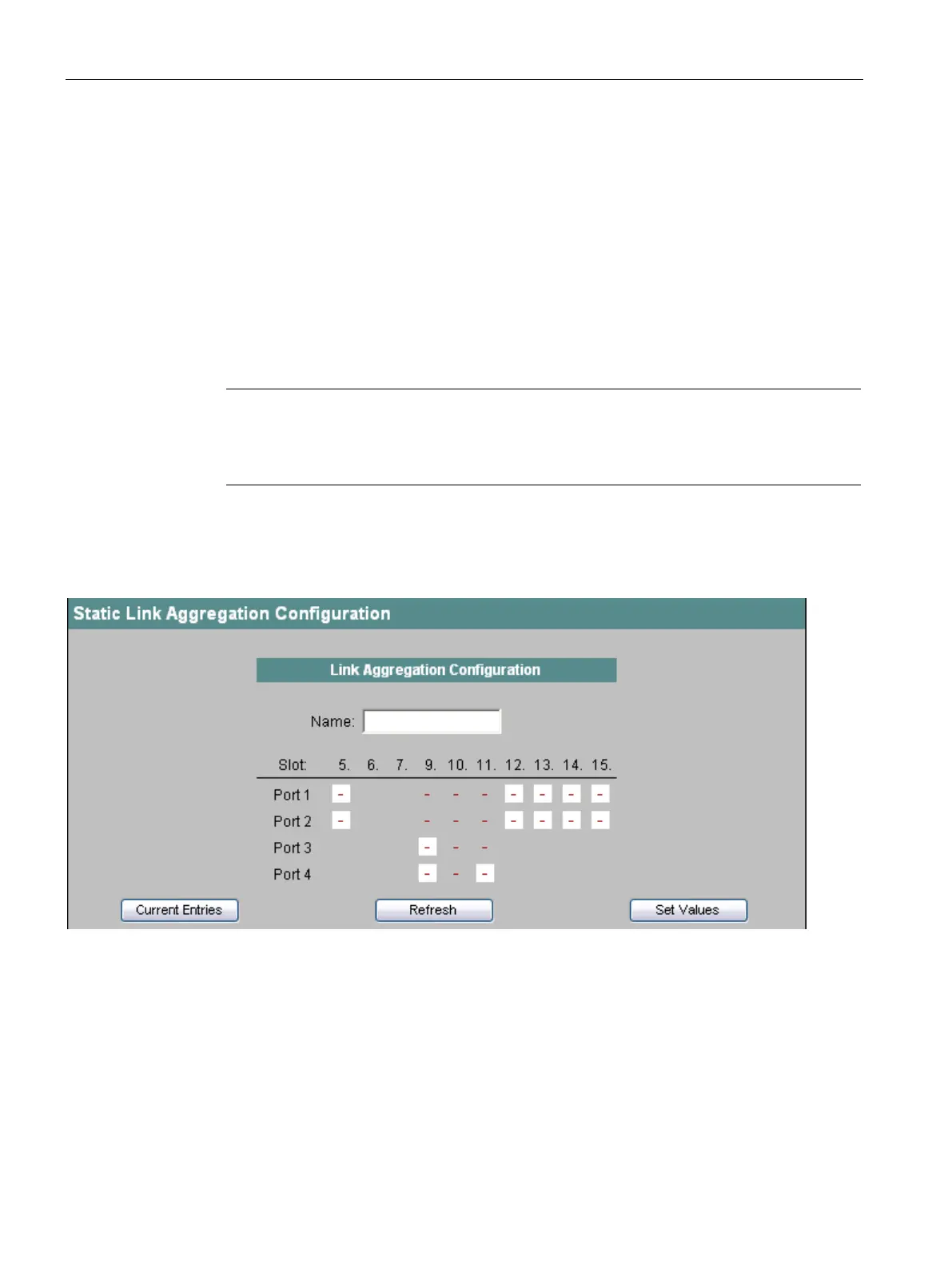

Click the New Entry button to create a new link aggregation. The following screen appears:
Figure 4-53 Link Aggregation Configuration
Here, you can specify a symbolic name for the new link aggregation. If you do not enter a
name here, it is set automatically by the system.
