Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
162 Configuration Manual, 10/2014, C79000-G8976-C187-22
Click on the "New Entry" button to add an entry to the address table. The "Static Unicast
Configuration" page opens in which you can make the necessary entries:

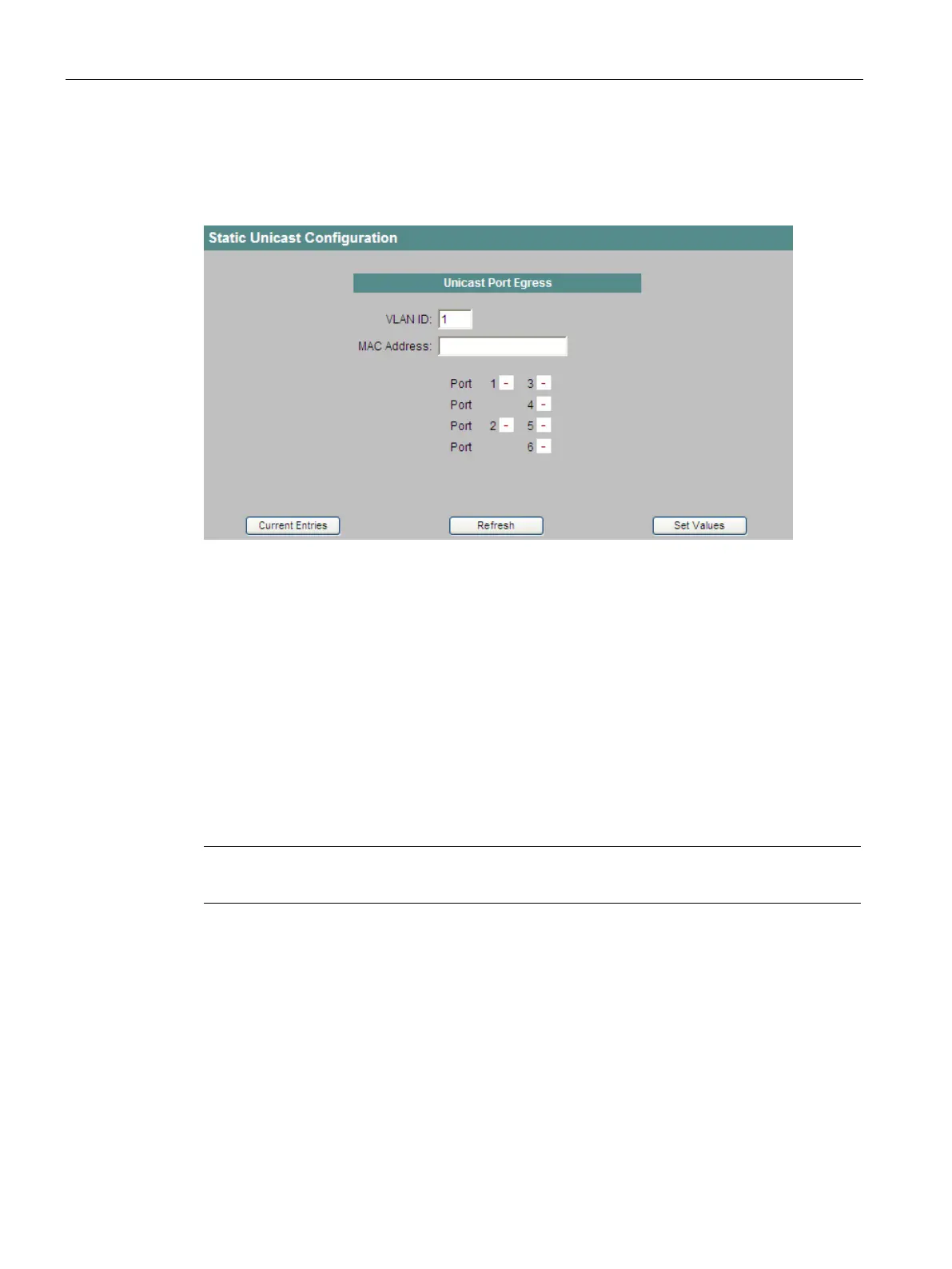

Figure 4-61 Static Unicast Configuration II
Enter the ID of the VLAN to which the MAC address belongs. If nothing is set, the VLAN ID 1
(default VLAN) is set as the basic setting.
Enter the MAC address you want to add to the address table. This address matches the
target address of a received frame.
Select the slot and the port to which the frames with the entered destination address will be
forwarded. After clicking on the appropriate box, "M" appears.
Invalid ports are marked with "#". If a port is marked with "?", the VLAN configuration
contradicts the unicast configuration.
only specify
port for unicast addresses.
By clicking this button, you return to the list of MAC addresses.
Click this button to create a new entry in the filter table.
Click this button to delete the displayed entry from the filter table.
