Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
186 Configuration Manual, 10/2014, C79000-G8976-C187-22
● G
(Guest VLAN) The port is a member of the guest VLAN. Registration was dynamic using
the "Guest VLAN" authentication, see section "802.1x Port Configuration (Page 156)".
● A
(Authenticated) The port is a member of the VLAN. Registration was dynamic using the
"MAC Authentication" method, see section "802.1x Port Configuration (Page 156)".
With a new definition, all ports have the identifier "-".
Link Aggregation Member List
Shows the settings of the link aggregation. The meaning of the entries is as follows:
● "-"
The port is not a member of the link aggregation.
● M
(Member) The port is a member of the link aggregation.
Click the New Entry button to specify how frames are sent via ports when working with a
VLAN. The Static VLAN Configuration page opens in which you can make the necessary
entries:

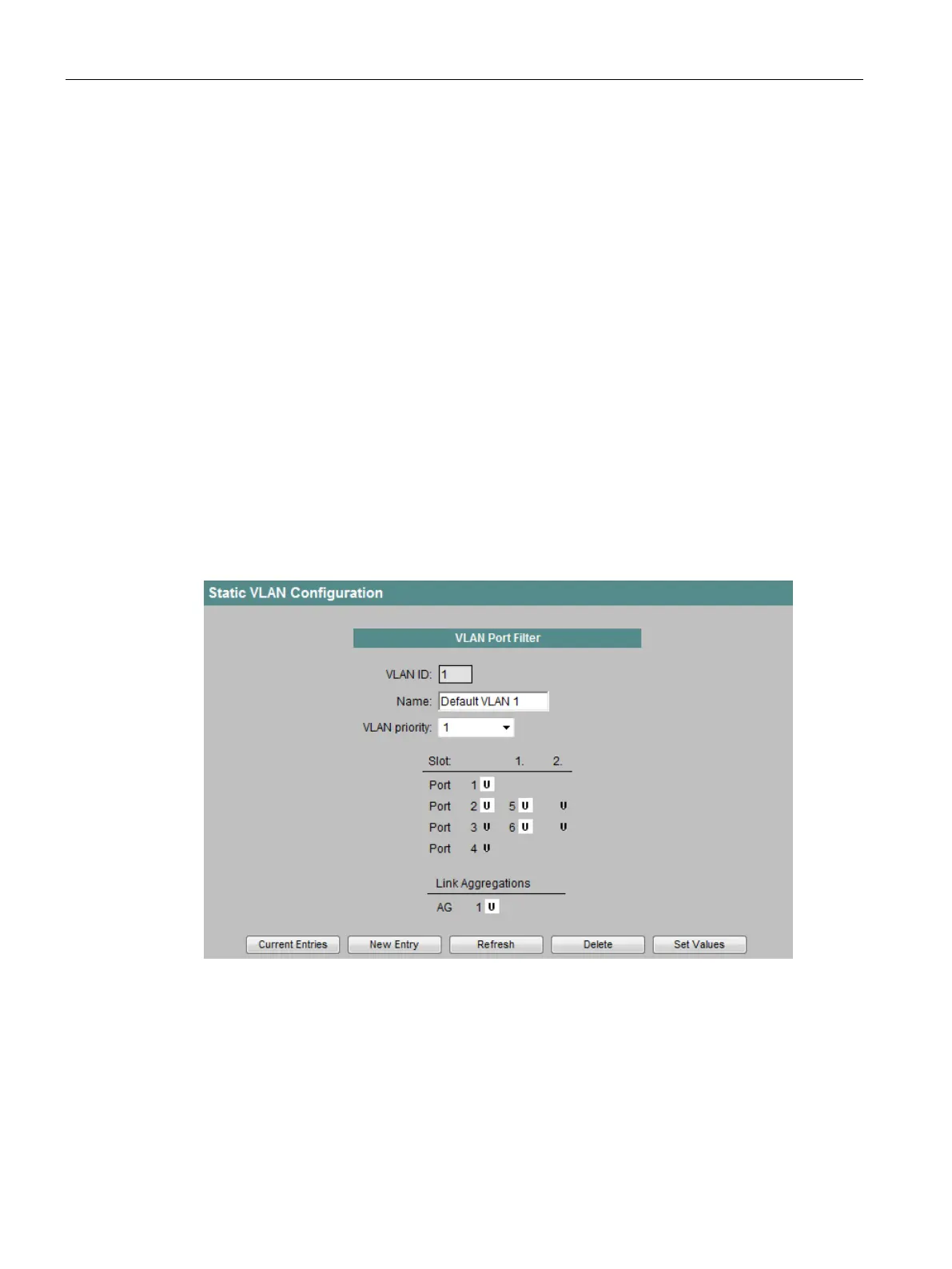

Figure 4-77 Static VLAN Configuration
Enter the ID of the VLAN here. The VLAN-ID is a number between 1 and 4094.
Here, enter a name for the VLAN. The name has no effect on the configuration.
