Configuration using Web Based Management and Command Line Interface
4.7 The Router menu (SCALANCE X414-3E)
SCALANCE X-300 / X-400
286 Configuration Manual, 10/2014, C79000-G8976-C187-22
Creating a new static route
With the "New Entry" button in the "Current Routes" dialog, you can create a new route.
Routes created in this way are always static.

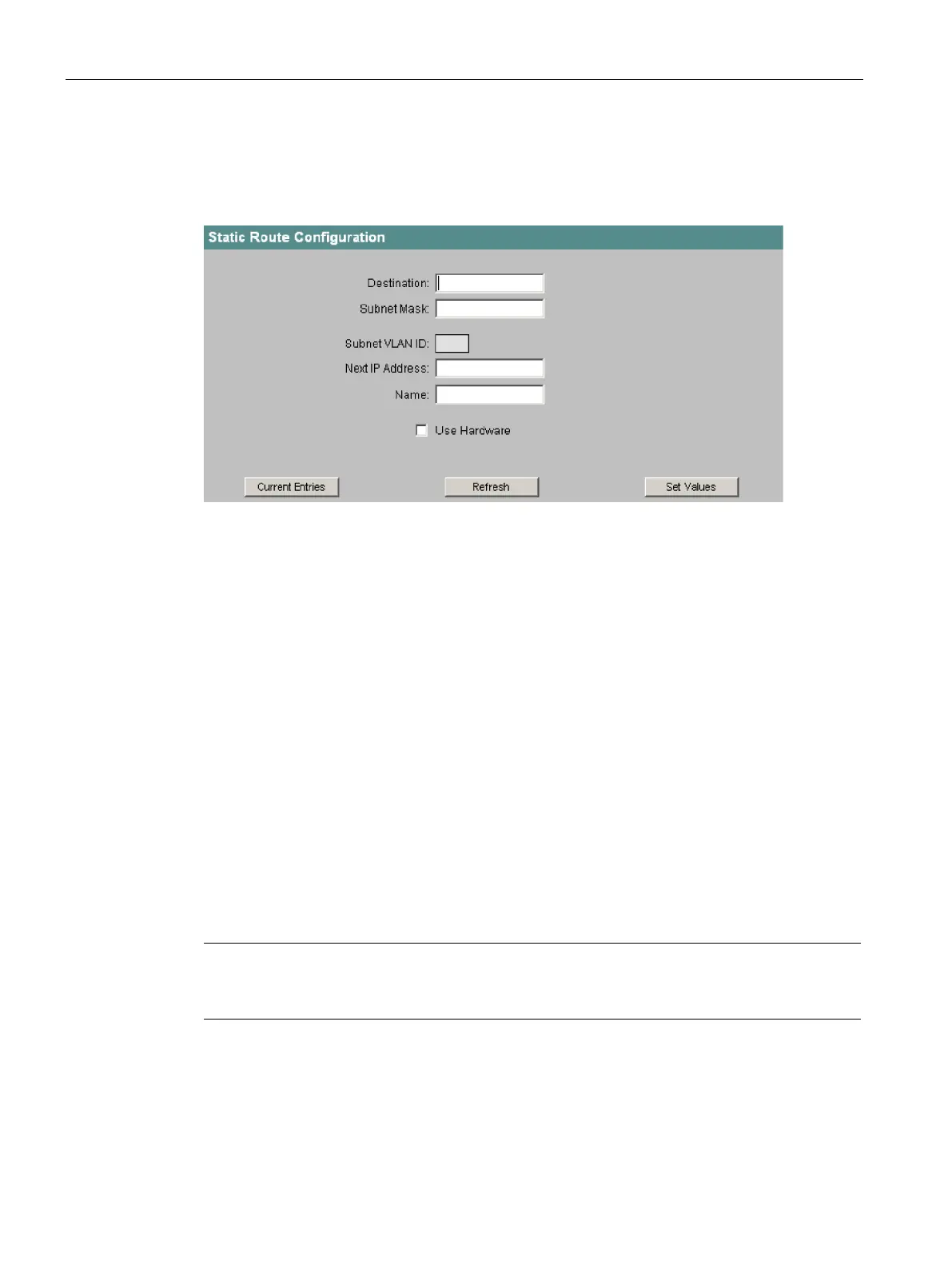

Figure 4-131 Static Route Configuration
Here, you enter an IP address to which the routing table entry relates.
Enter the subnet mask of the routing entry here. This shows which bits of the address are
valid for the routing comparison.
The subnet VLAN ID is calculated automatically from the next IP address and is empty in
new systems.
Here, enter the address of the next router to which the packets of this route will be sent. The
router must be located in a connected subnet.
Here, you enter the name of the route (this is no effect on the functionality).
Enable this check box, if you want the route to be written to the hardware. If the option is
enabled, the route is written to the hardware the first time a packet is successfully forwarded
and can then be used more quickly.
Note
The route can only be written to the hardware when there is still adequate storage space
available.
