Configuration using Web Based Management and Command Line Interface
4.7 The Router menu (SCALANCE X414-3E)
SCALANCE X-300 / X-400
Configuration Manual, 10/2014, C79000-G8976-C187-22
313

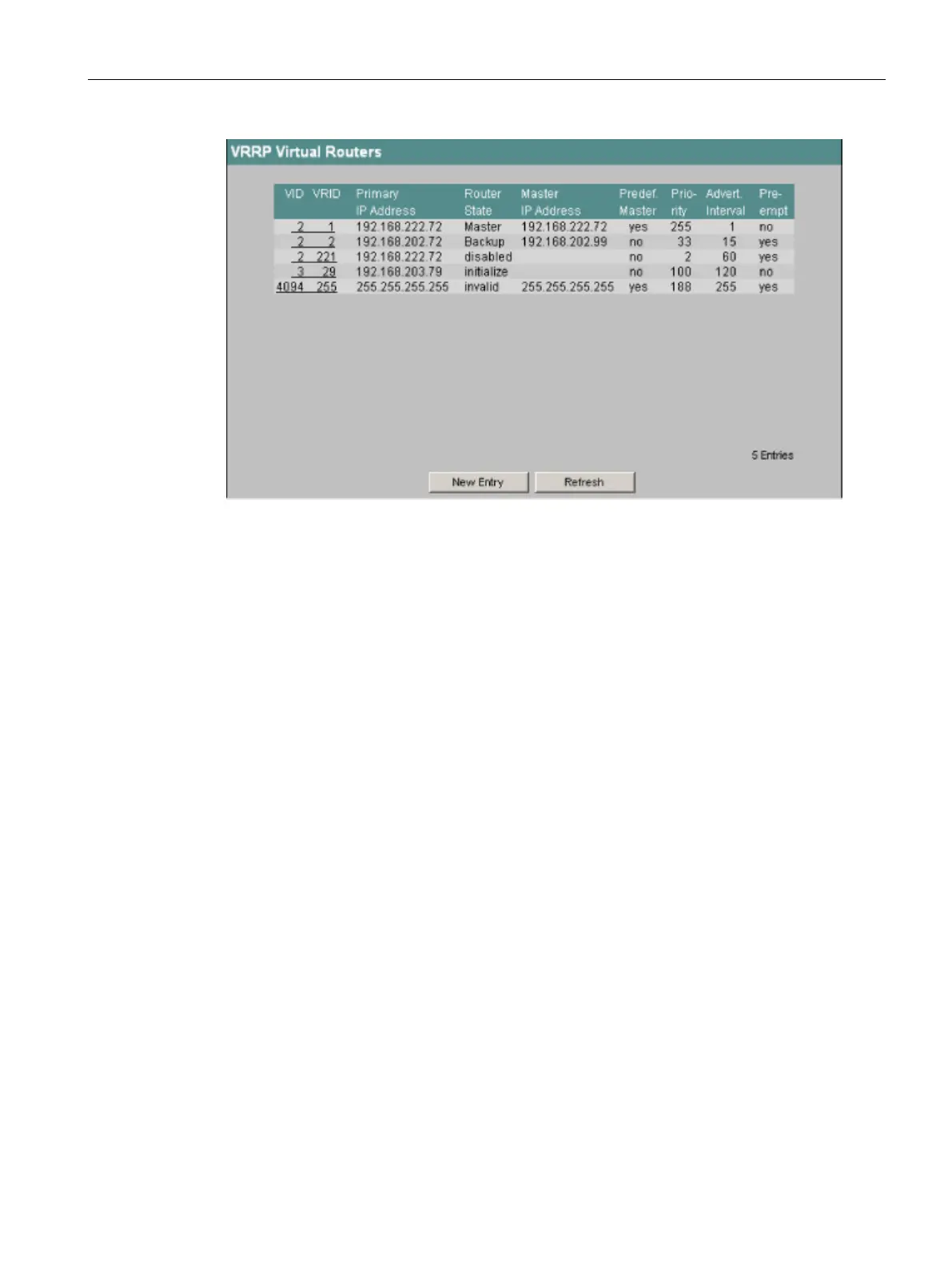

Figure 4-147 VRRP Virtual Routers
VLAN ID of the subnet. The IP addresses set up for this and all subnet parameters can be
found in the "Router Subnets" menu.
The ID of the virtual router is displayed in this column. This assigned ID must be unique for
this VLAN. Valid values are 1 through 255.
The primary IP address on this VLAN is displayed in this column. The entry 0.0.0.0 means
that the smallest address on this VLAN is used. Otherwise all IP addresses configured on
this VLAN in the "Router Subnets" menu are valid addresses.
The current state of the virtual router is displayed in this column. Possible values are:
● Master: This router handles the routing functionality for all assigned IP addresses.
● Backup: Currently, a different router handles the routing functionality is in the "Master"
state. The displayed router takes over the redundancy function and is ready to take over
if the master fails.
● Disabled: This router was disabled by the administrator. It no longer handles router
redundancy.
● Initialize: The virtual router has just been turned on. It will soon change to the "Master" or
"Backup" state.
● Invalid: The configuration of this virtual router is invalid. Please check the configuration.
The IP address of the router currently handling routing functionality is displayed in this
column.
