Configuration using Web Based Management and Command Line Interface
4.7 The Router menu (SCALANCE X414-3E)
SCALANCE X-300 / X-400
314 Configuration Manual, 10/2014, C79000-G8976-C187-22
This column indicates whether at least one redundant router address belongs to this
IE Switch X-400. In this case, the priority is predefined at 255 and the
IE Switch X-400 immediately changes to the "Master" status when it is turned on.
The priority of the virtual router is set in this column. Valid values are 1 through 255. 255 is
intended for the owner of the redundant router addresses. All other priorities can be
distributed freely among the redundant routers. The higher the priority, the earlier the router
becomes "Master".
This column shows the interval at which the master router sends its advertisement packets.
This column indicates whether a router with higher priority will interrupt a different router with
lower priority.
Creating or changing a virtual router
With the "New Entry" button in the "VRRP Virtual Routers" dialog, you can create a new
virtual router.

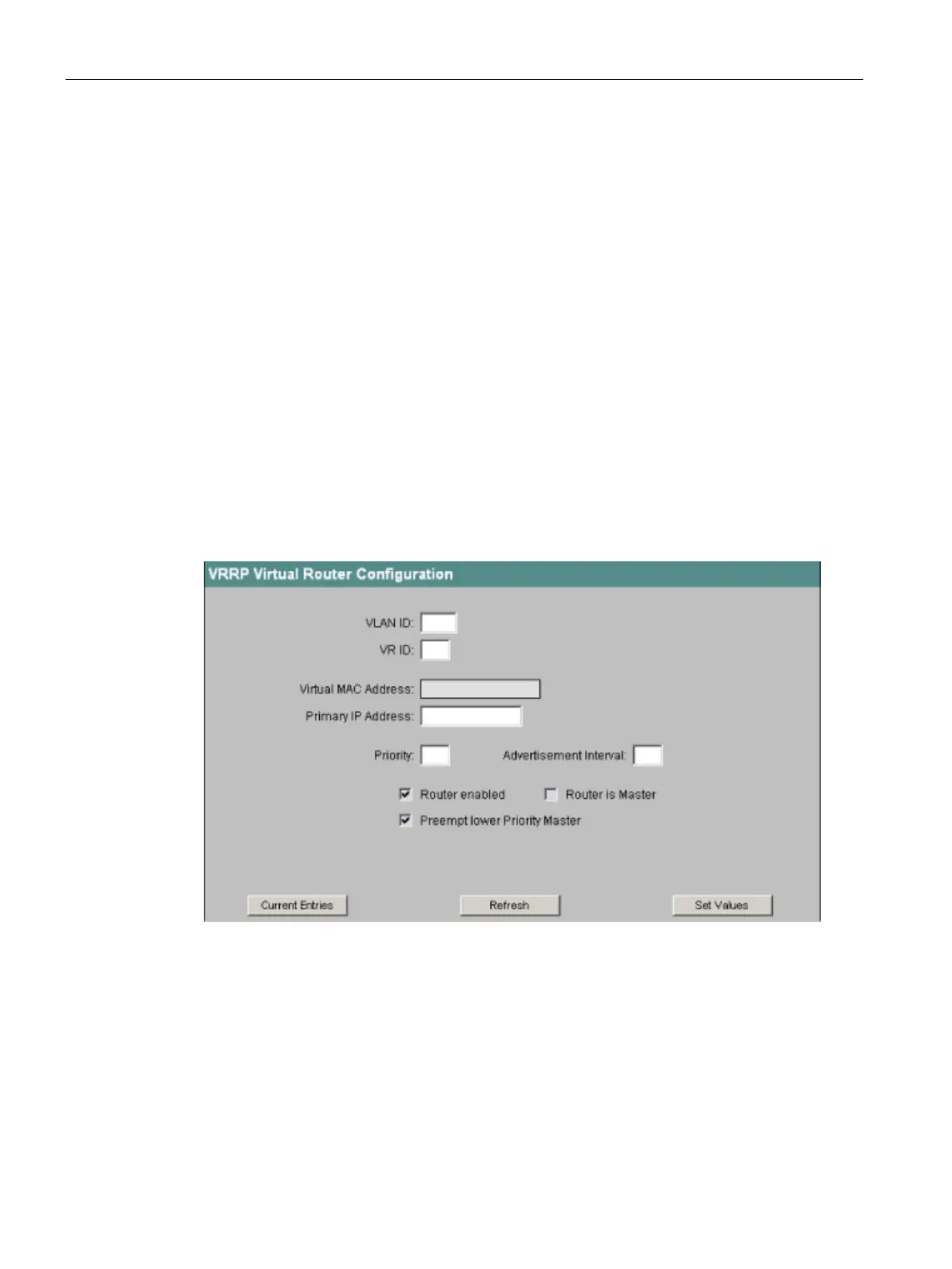

Figure 4-148 VRRP Virtual Router Configuration
Here, you enter the VLAN on which the virtual router will be active. Valid values are all IDs of
VLANs that have at least one configured IP subnet.
Enter the ID of the virtual router here. This must be unique on the connected LAN.
The virtual MAC address is derived automatically from the IP of the virtual router and a fixed
prefix.
