Siemens SIMATIC ET 200SP Function Manual

Communication
14 Function Manual, 11/2019, A5E03735815-AH
Product overview
2
CPUs, communications modules and processors, and PC systems of the S7-1500,
ET 200MPET 200SPET 200pro and ET 200AL systems provide you with interfaces for
communication via PROFINET, PROFIBUS and point-to-point connections.
CPUs, communications modules and communications processors
PROFINET and PROFIBUS DP interfaces are integrated in the S7-1500 CPUs. The
CPU 1516-3 PN/DP for example has two PROFINET interfaces and one PROFIBUS DP
interface. Other PROFINET and PROFIBUS DP interfaces are available by using
communications modules (CM) and communications processors (CP).

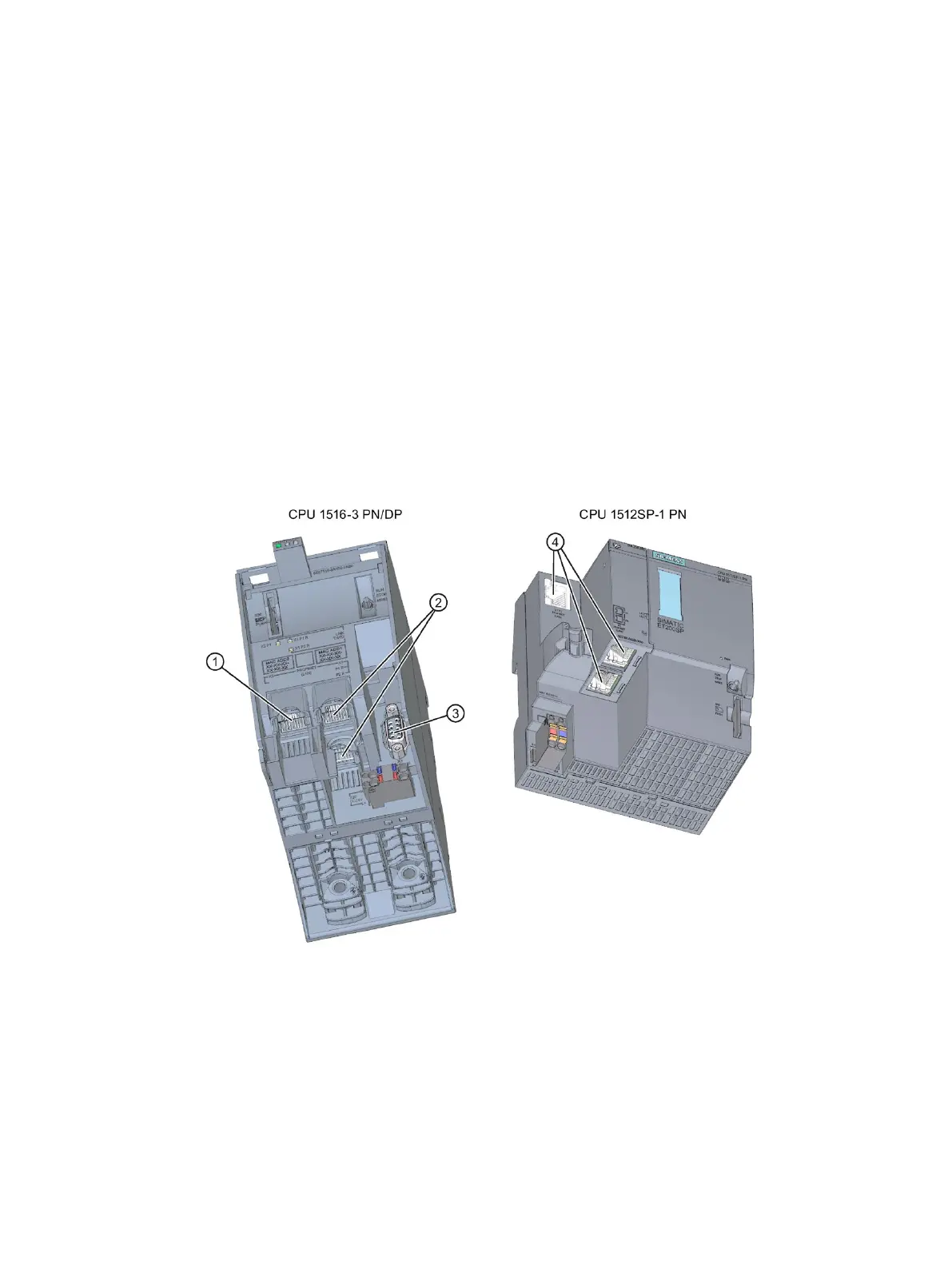

①
PROFINET interface (X2) with 1 port
②
PROFINET interface (X1) with 2-port switch
③
PROFIBUS DP interface (X3)
④
PROFINET interface (X1) with 3-port switch
Figure 2-1 Interfaces of the CPU 1516-3 PN/DP and CPU 1512SP-1 PN

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
