Siemens SIMATIC ET 200SP Function Manual

OPC UA communication
9.4 Using the S7-1500 CPU as an OPC UA client
Communication
264 Function Manual, 11/2019, A5E03735815-AH
12. Click on the small black triangle next to "Objects".
STEP 7 now also displays the level below Objects.
13. Click on the small black triangle next to "Productionline".
STEP 7 now also displays the level below Productionline.
14. Now open additional lower-level folders:

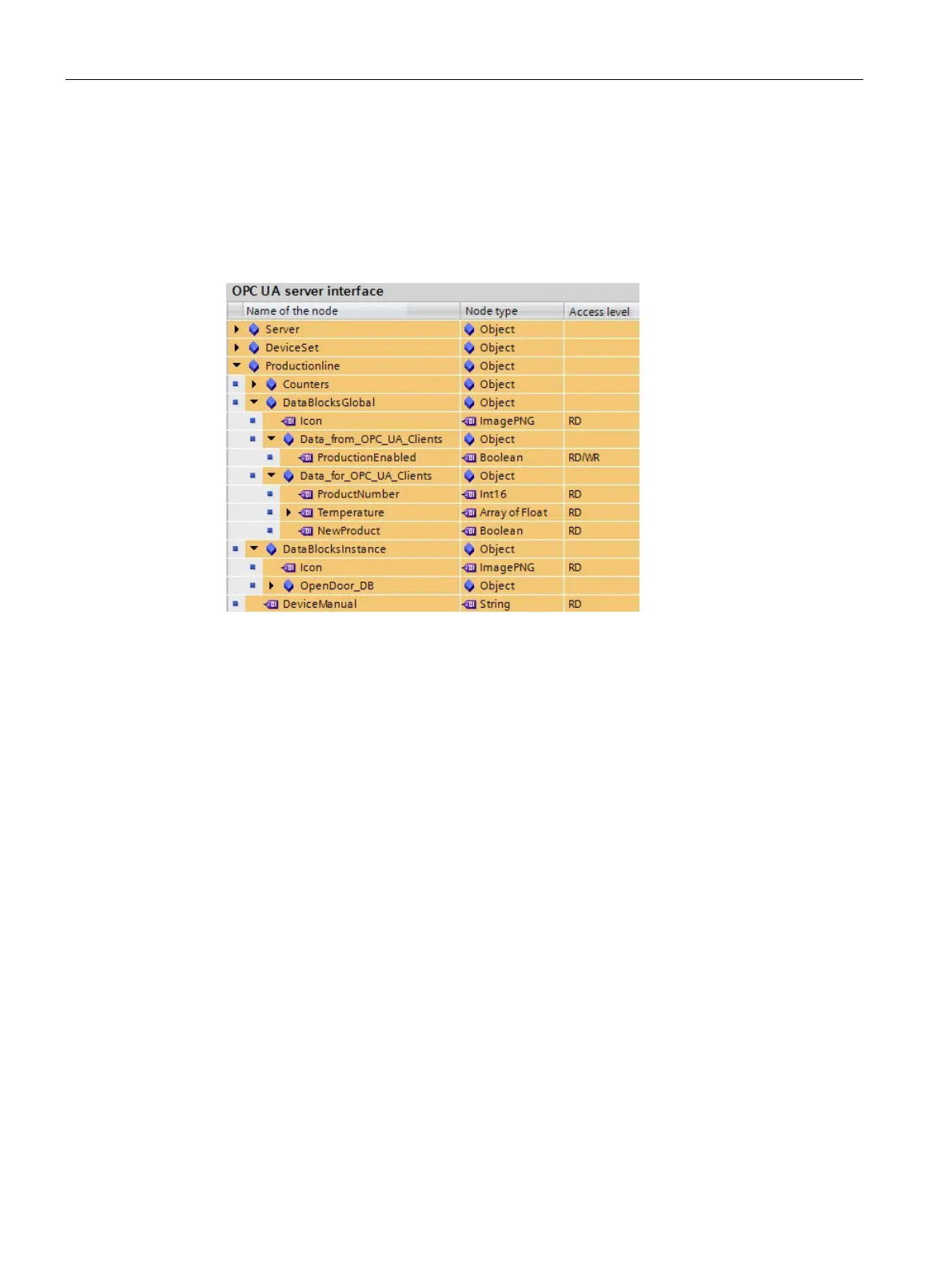

Figure 9-67 Online view of OPC UA server interface
See also
Mapping of data types (Page 142)
Creating client interfaces (Page 251)
9.4.7 Using multilingual texts
In the client interface editor, you are also importing texts that can be displayed in different
languages with the OPC UA XML files (information models). Multilingualism is optional, and
each node can be defined differently regarding the languages it offers.
In the XML file, these are the following fields that can be prepared for different languages:
● Display name
● Description

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
