Siemens SIMATIC ET 200SP Function Manual

OPC UA communication
9.3 Using the S7-1500 as an OPC UA server
Communication
198 Function Manual, 11/2019, A5E03735815-AH
9.3.3.10 License for OPC UA
Runtime licenses
A license is required to run the OPC UA server of the S7-1500 CPU. The type of license
required depends on the performance of the respective CPU. The following license types are
differentiated:
● SIMATIC OPC UA S7-1500 small (required for CPU 1511, CPU 1512, CPU 1513,
ET 200SP CPUs, CPU 1515SP PC)
● SIMATIC OPC UA S7-1500 medium (required for CPU 1515, CPU 1516, Software
Controller CPU 1507, CPU 1516pro-2PN)
● SIMATIC OPC UA S7-1500 large (required for CPU 1517, CPU 1518)
The required license type is displayed under "Properties > General > Runtime licenses >
OPC-UA > Type of required license":

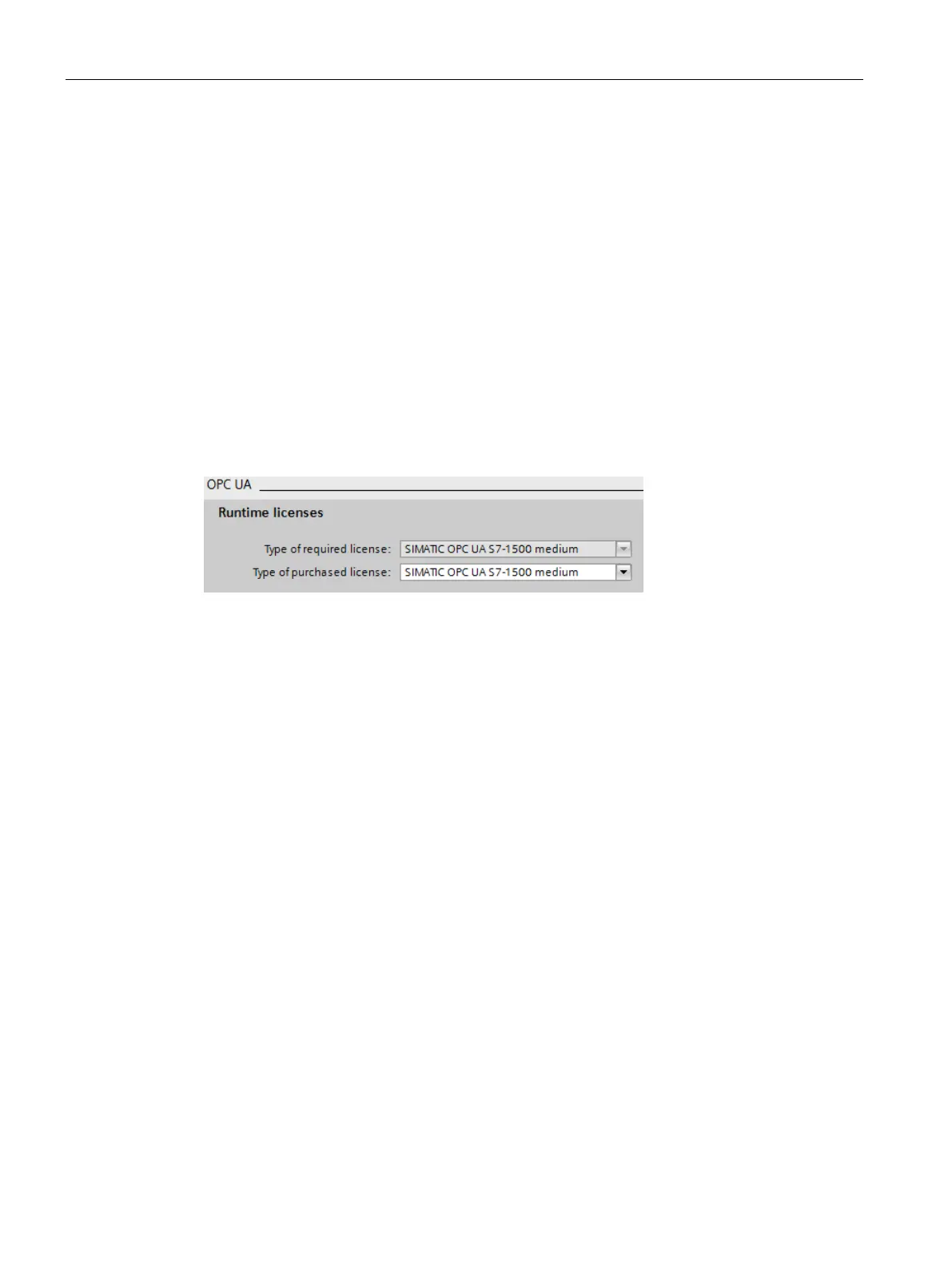

Figure 9-26 OPC UA server Runtime licenses
To confirm purchase of the required license, follow these steps:
1. Click "Runtime licenses > OPC UA" in the properties of the CPU.
2. Select the required license from the "Type of purchased license" drop-down list.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
