Siemens SIMATIC ET 200SP Function Manual

Connection resources
11.3 Display of the connection resources
Communication
316 Function Manual, 11/2019, A5E03735815-AH
11.3 Display of the connection resources
Display of the connection resources in STEP 7 (offline view)
You can display the connection resources of an automation system in the hardware
configuration. You will find the connection resources in the Inspector window in the
properties of the CPU.

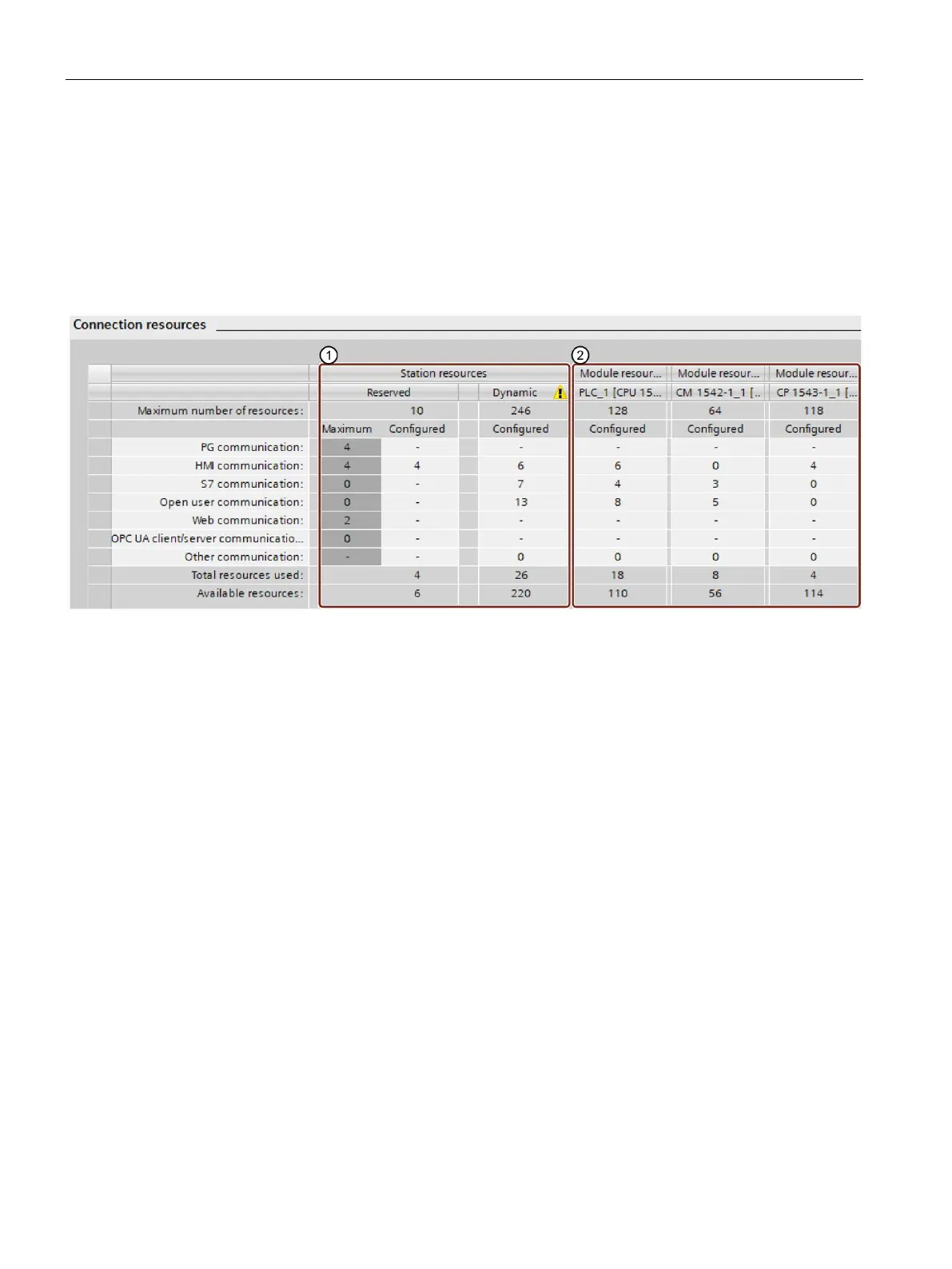

Figure 11-4 Example: Reserved and available connection resources (offline view)
① Station-specific connection resources
The columns of the station-specific connection resources provide information about the used
and available connection resources of the station.
In the example, a maximum of 256 station-specific connection resources are available for the
automation system.
● 10 reserved connection resources, of which 4 are already in use and a further 6 available.
The used resources are divided up as follows:
– 4 Resources for HMI communication
● 246 dynamic connection resources, of which 26 are already in use and a further 220
available.
The used resources are divided up as follows:
– 6 resources for HMI communication
– 7 resources for S7 communication
– 13 resources for Open User Communication

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
