Siemens SIMATIC ET 200SP Function Manual

Communication
320 Function Manual, 11/2019, A5E03735815-AH
Diagnostics and fault correction
12
12.1 Connection diagnostics
Connections table in the online view
After selecting a CPU in the Devices & networks editor of STEP 7, you will see the status of
your connections displayed in the online view of the connections table.

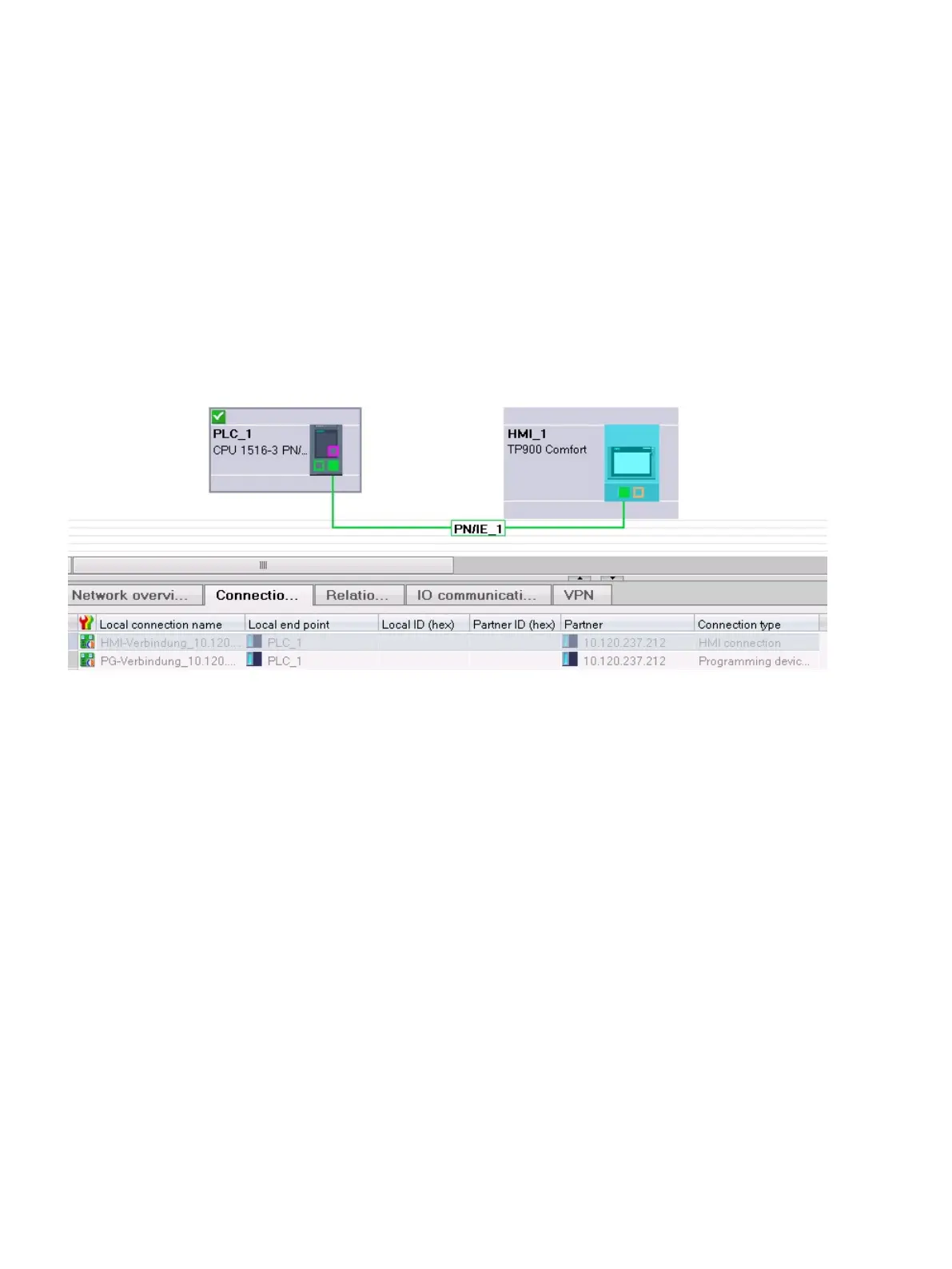

Figure 12-1 Online view of the connections table
After selecting the connection in the connections table, you obtain detailed diagnostic
information in the "Connection information" tab.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
