Siemens SIMATIC ET 200SP Function Manual

OPC UA communication
9.3 Using the S7-1500 as an OPC UA server
Communication
Function Manual, 11/2019, A5E03735815-AH
165
Reading CPU operating mode over OPC UA server
The OPC UA server allows you to read out the CPU mode, see figure below:

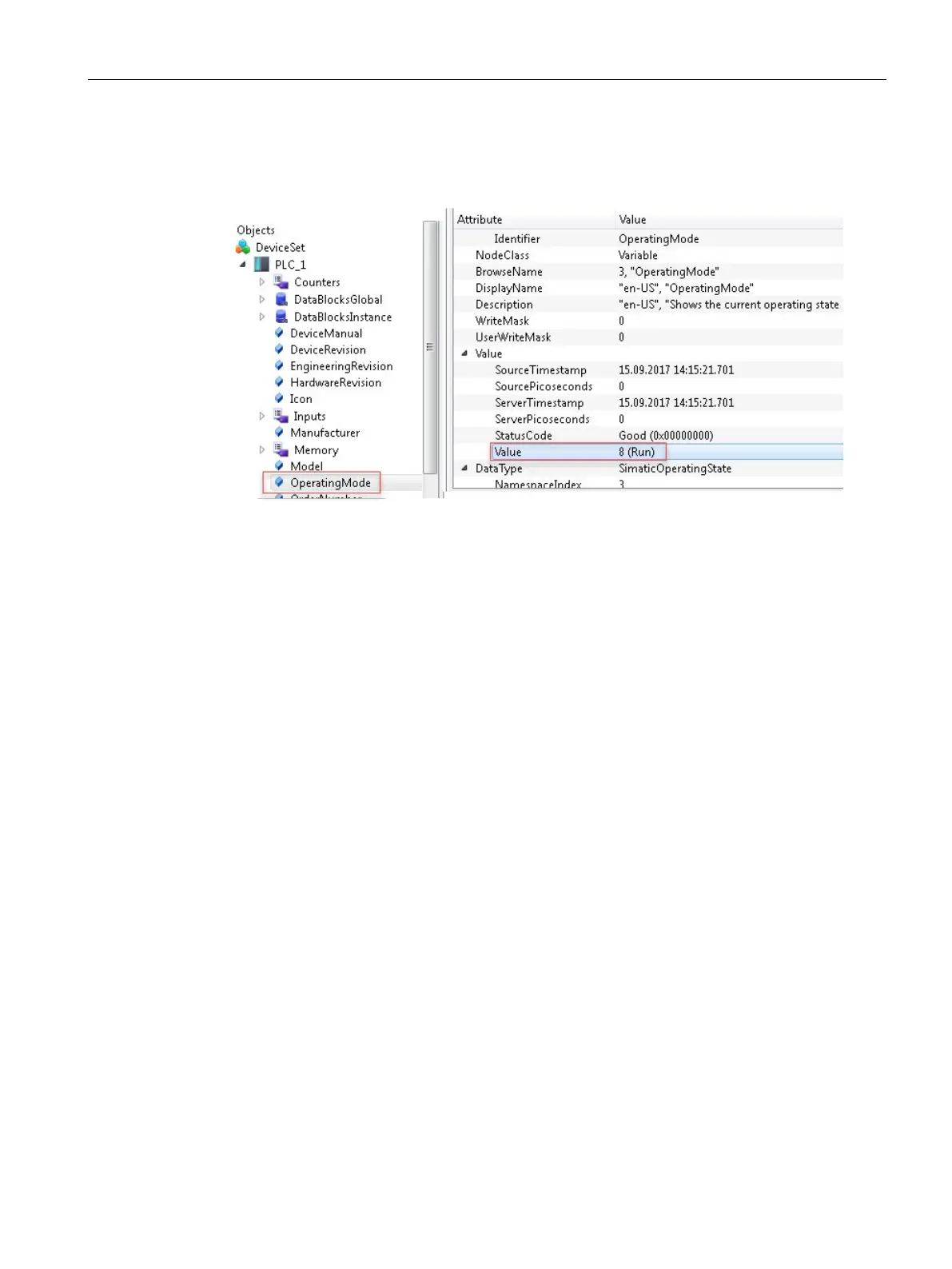

Figure 9-9 Reading CPU operating mode over OPC UA server
In addition to the operating mode of the CPU you can, for example, read out information in
the manual (DeviceManual) or firmware version (HardwareRevision).
9.3.2 Configuring access to PLC tags
9.3.2.1 Managing write and read rights
Enabling PLC tags and DB tags for OPC UA
OPC UA clients can have read and write access to PLC tags and DB tags if the tags are
enabled for OPC UA (default setting). For an enabled tag the check box "Accessible from
HMI/OPC UA" is activated.
You can change the default setting in the settings of the TIA Portal: Command "Settings >
PLC programming > General" in "Options" menu. You will find the corresponding options in
the "Block interface/data block elements" area.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
