Siemens SIMATIC ET 200SP Function Manual

OPC UA communication
9.3 Using the S7-1500 as an OPC UA server
Communication
162 Function Manual, 11/2019, A5E03735815-AH

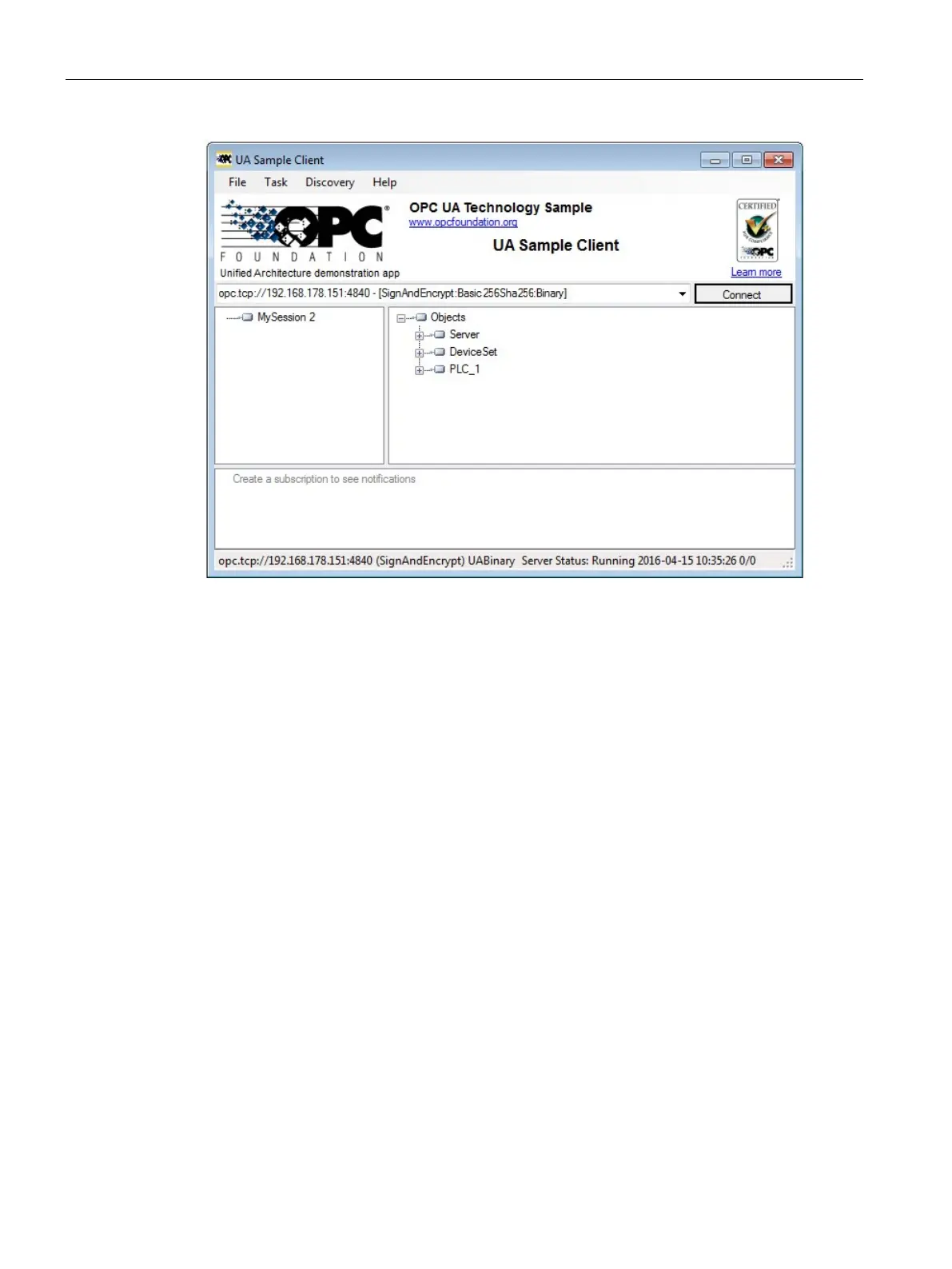

Figure 9-8 "UA Sample Client" program of the OPC Foundation
A connection to a server end point is only established if the OPC UA client complies with the
security policies of that end point.
Through the information provided by the OPC UA server
OPC UA servers provide a wide range of information:
● The values of PLC tabs and DB components which clients may access.
● The data types of these PLC tags and DB components.
● Information on the OPC UA server itself and on the CPU.
This gives clients an overview and allows them to read out specific information. Previous
knowledge of the PLC program and the CPU data is not required. You do not need to ask
the developer of the PLC program when PLC tags are to be read. All necessary information
is stored on the server itself (for example, the data types of the PLC tags).

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
