9.3 Using the S7-1500 as an OPC UA server
Communication
210 Function Manual, 11/2019, A5E03735815-AH
12. Click "OK".

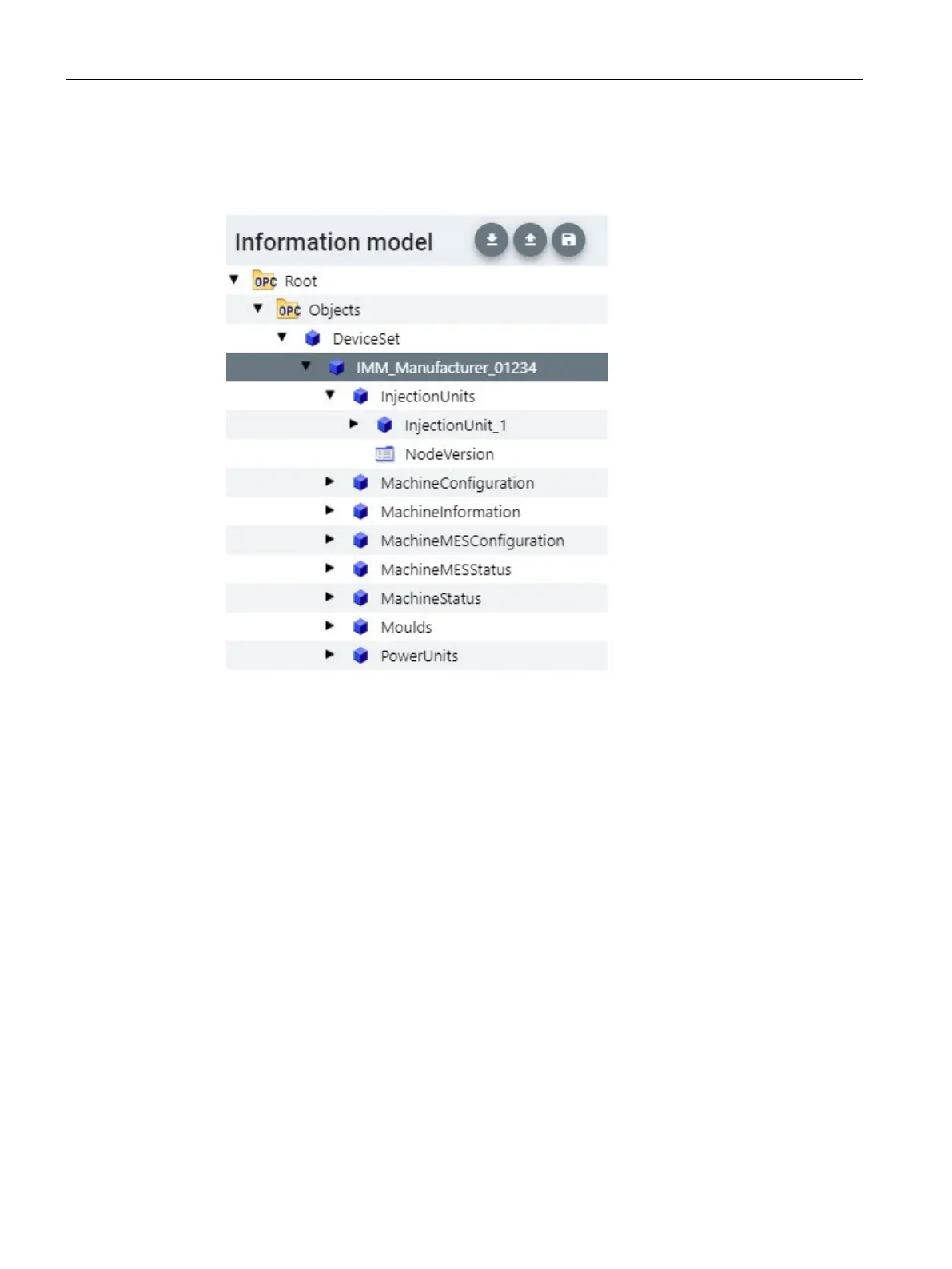

SiOME shows the new instance "IMM_Manufacturer_01234" in the "Information model"
area under "DeviceSet":
Figure 9-36 Display information model
13. Create an instance of the data type "InjectionUnitType".
To do this, right-click on the "InjectionUnits" directory in the "Information model" area and
select "Add Instance".
SiOME displays the "Add Instance" dialog.
For "Name", enter a meaningful name for the instance.
In the example, enter "InjectionUnit_1".
For "TypeDefinition", select "InjectionUnitType".
Click "OK".
14. Create a new "Mould_1" instance of the "MouldType" object type in the "Moulds"
directory.
15. Create a new instance "PowerUnit_1" of the "PowerUnitType" object type in the
"PowerUnits" directory.
