Siemens SIMATIC ET 200SP Function Manual

OPC UA communication
9.4 Using the S7-1500 CPU as an OPC UA client
Communication
Function Manual, 11/2019, A5E03735815-AH
261
3. Double-click the selected client interface.
The editor for client interfaces is displayed.

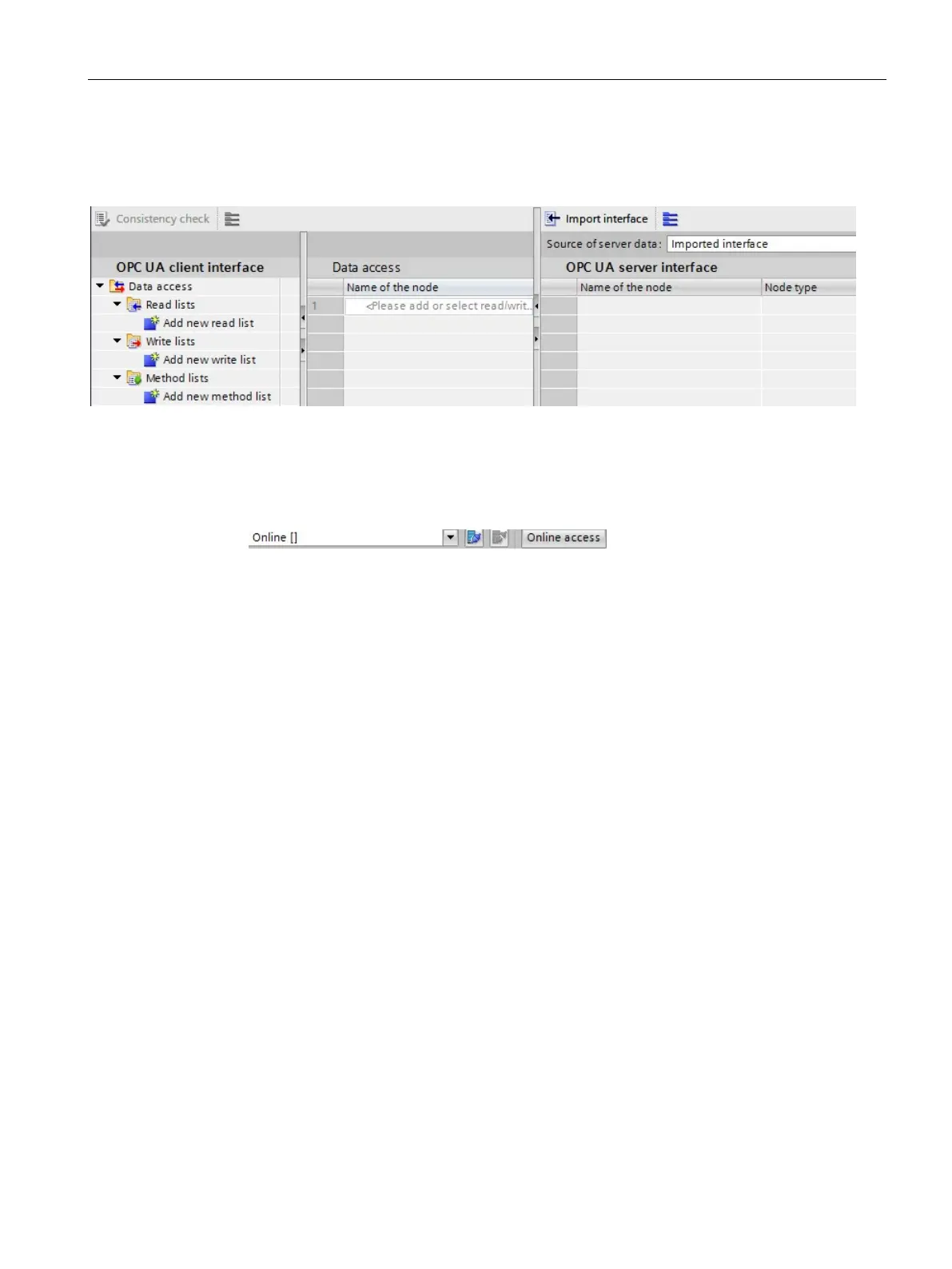

Figure 9-64 Editor for client interface
4. In the left section of the editor, click "Add new read list", "Add new write list", or "Add new
method list".
5. In the right field of the editor, select "Online[]" as data source for "Source of server data":

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
