Routing
10.4 Data record routing
Communication
302 Function Manual, 11/2019, A5E03735815-AH
Example: Data record routing with the Port Configuration Tool (PCT)
You can use the Port Configuration Tool (PCT) to configure the IO link master of the ET200
and assign parameters to connected IO link devices. The subnets are connected via data
record routers. Data record routers are, for example, CPUs, CPs, IMs, IO link master.
You can learn about the constellations of data record routers supported by the PCT in this
FAQ (http://support.automation.siemens.com/WW/view/en/87611392
).

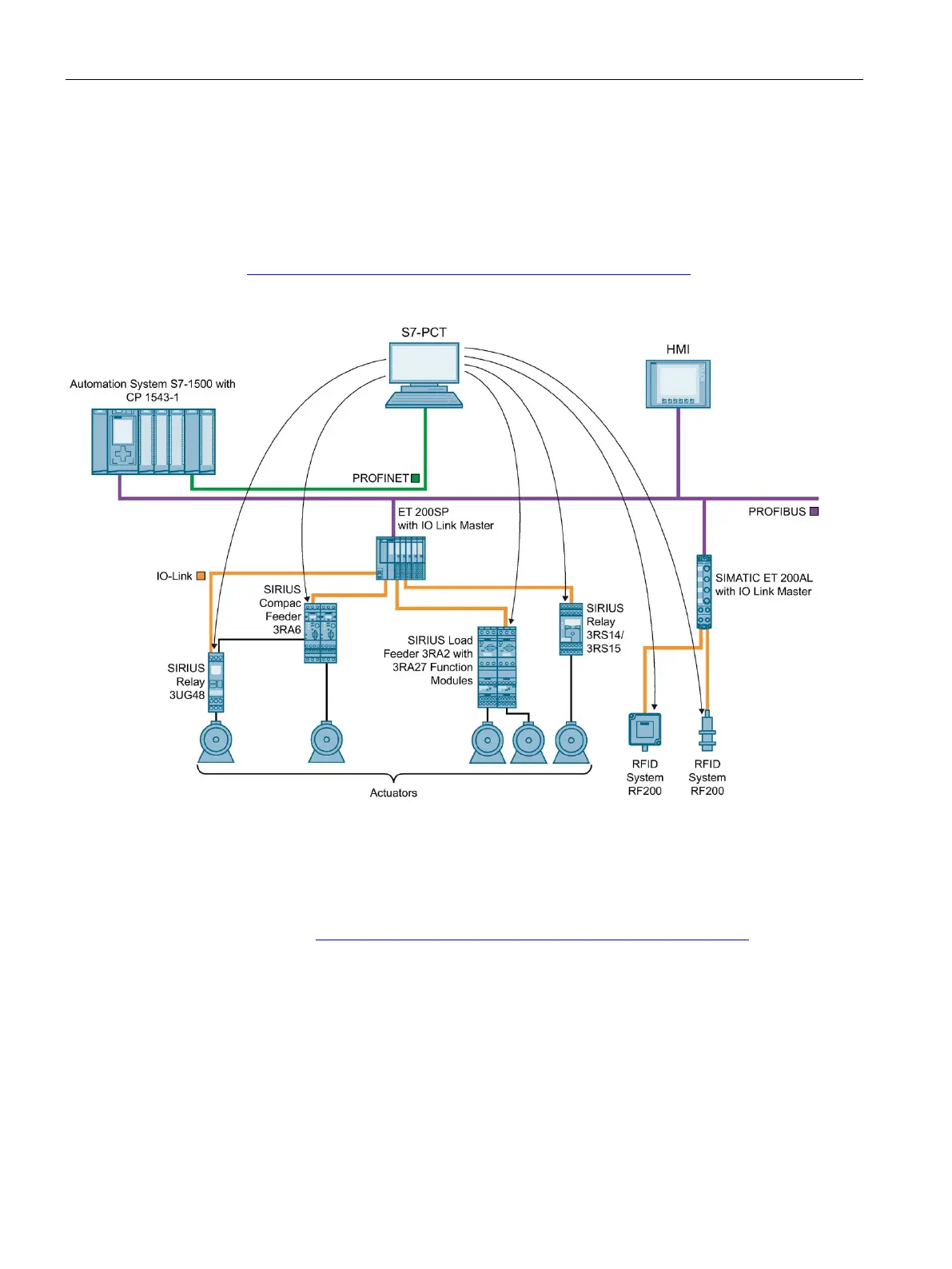

The figure below shows an example configuration with the data record routing with PCT.
Figure 10-13 Example configuration for data record routing with PCT
Additional information
● The differences that exist between "normal" routing and data record routing are described
in this FAQ (https://support.industry.siemens.com/cs/ww/en/view/7000978
).
● Whether or not the CPU, CP or CM you are using supports data record routing can be
found in the relevant manuals.
● The allocation of connection resources with data record routing is described in the section
Allocation of connection resources (Page 311).
● You can find additional information on configuration with STEP 7 in the STEP 7 online
help.
