Siemens SIMATIC ET 200SP Function Manual

Diagnostics and fault correction
12.1 Connection diagnostics
Communication
322 Function Manual, 11/2019, A5E03735815-AH

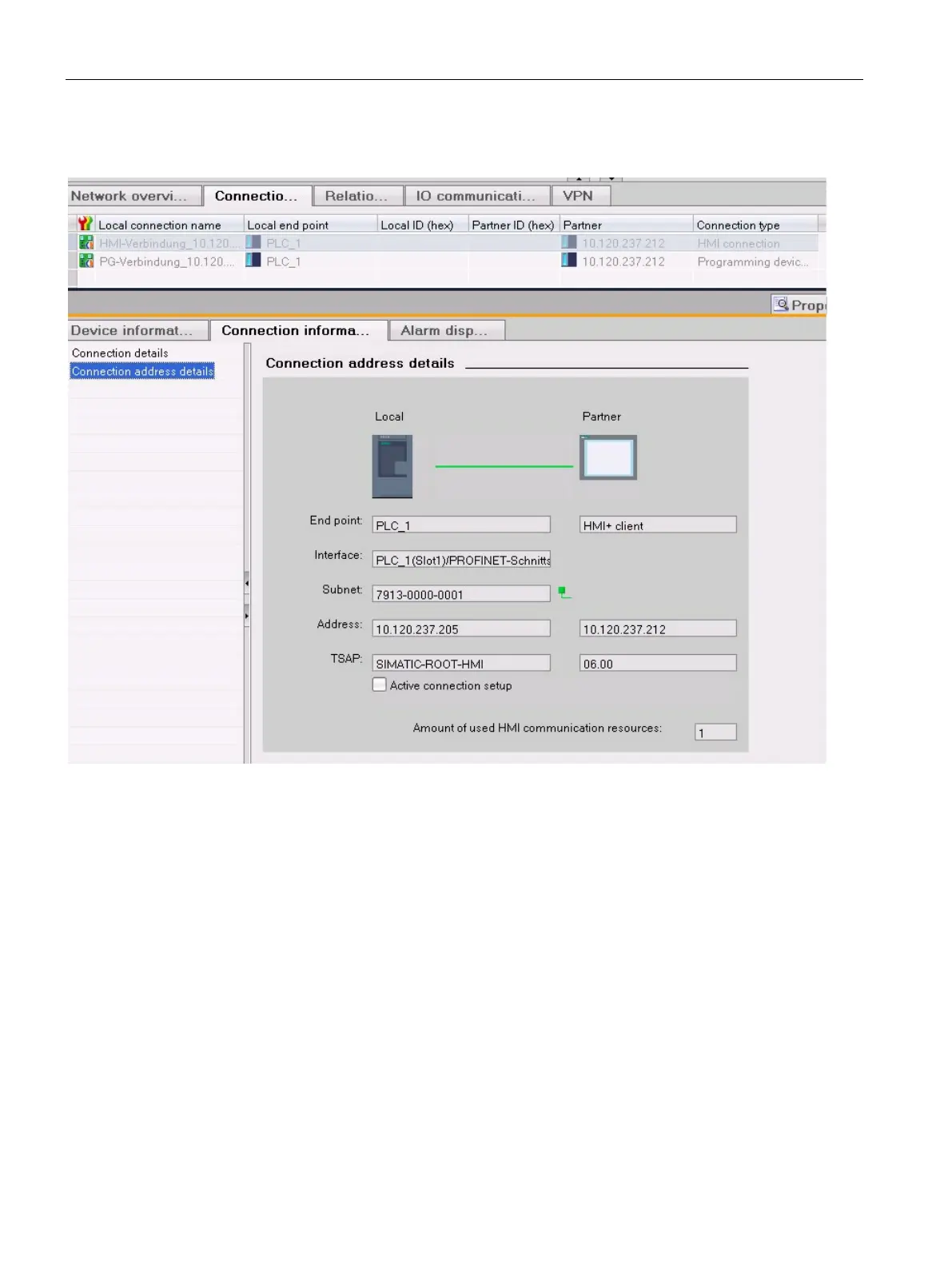

"Connection information" tab: Address details
Figure 12-3 Diagnostics of connections - address details
Diagnostics via web server
You can evaluate diagnostic information from the CPU using a web browser via the
integrated web server of a CPU.
On the "Communication" Web page, you will find the following information about
communication via PROFINET in various tabs:
● Information on the PROFINET interfaces of the CPU (for example addresses, subnets,
physical properties).
● Information on the quality of the data transfer (for example number of data packets
sent/received error-free).
● Information about the allocation/availability of connection resources.
● The "Connection status" page is similar to the online view in STEP 7 and also provides an
overview of all connections with detail view.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
