Siemens SIMATIC ET 200SP Function Manual

Communication with the redundant system S7-1500R/H
13.1 System IP addresses
Communication
328 Function Manual, 11/2019, A5E03735815-AH
Communication via the system IP addresses X1 and X2
If the CPUs of the redundant system S7-1500R/H have two PROFINET interfaces (X1 and
X2), you can use the a system IP address for each PROFINET interface. PROFINET
devices which are connected to the interfaces X1 of the CPUs communicate via the
system IP address X1. PROFINET devices which are connected to the interfaces X2 of the
CPUs communicate via the system IP address X2.

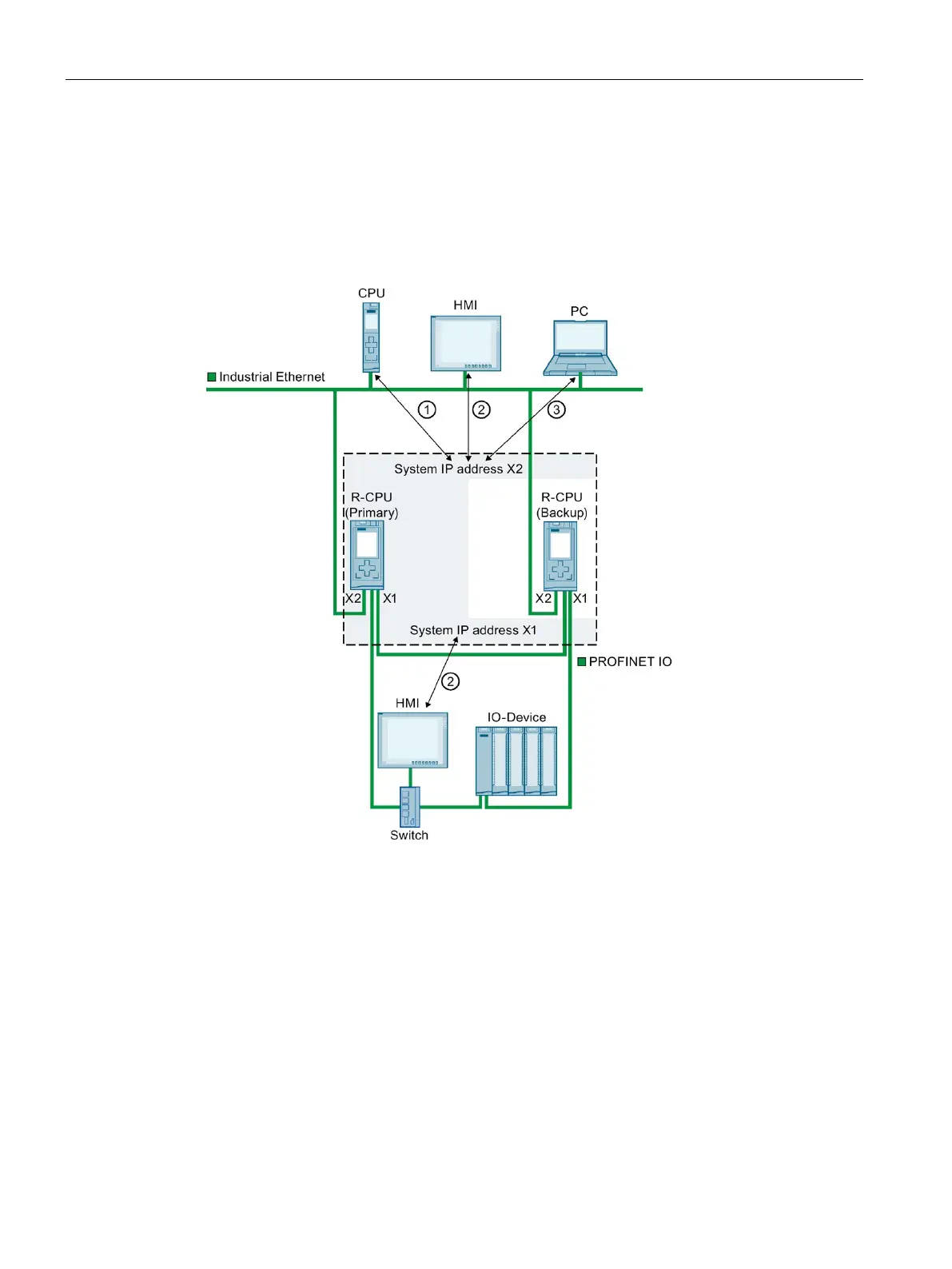

①
Open User Communication between the S7-1500R/H redundant system and a different CPU.
②
HMI communication with the S7-1500R/H redundant system
③
Open User Communication between the S7-1500R/H redundant system and a PC
Figure 13-3 Example: Communication of the S7-1515R redundant system via the system IP
addresses X1 and X2

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
