Siemens SIMATIC ET 200SP Function Manual

Open User Communication
6.7 Setting up communication with Modbus TCP
Communication
Function Manual, 11/2019, A5E03735815-AH
85
3. Select the required instruction, for example MB_CLIENT, from the "Instructions" task
card, "Communication" area, "Other", "MODBUS TCP" and drag it to a network of OB1.
4. Assign the parameters of the MB_CLIENT or MB_SERVER instruction. Observe the
following rules:
An IPv4 server address must be specified for each MB_CLIENT connection.
Each MB_CLIENT or MB_SERVER connection must use a unique instance DB with one
of the data structures TCON_IP_v4, TCON_QDN or TCON_Configured.
Each connection requires a unique connection ID. The connection ID and instance DB
belong together in pairs and must be unique for each connection.

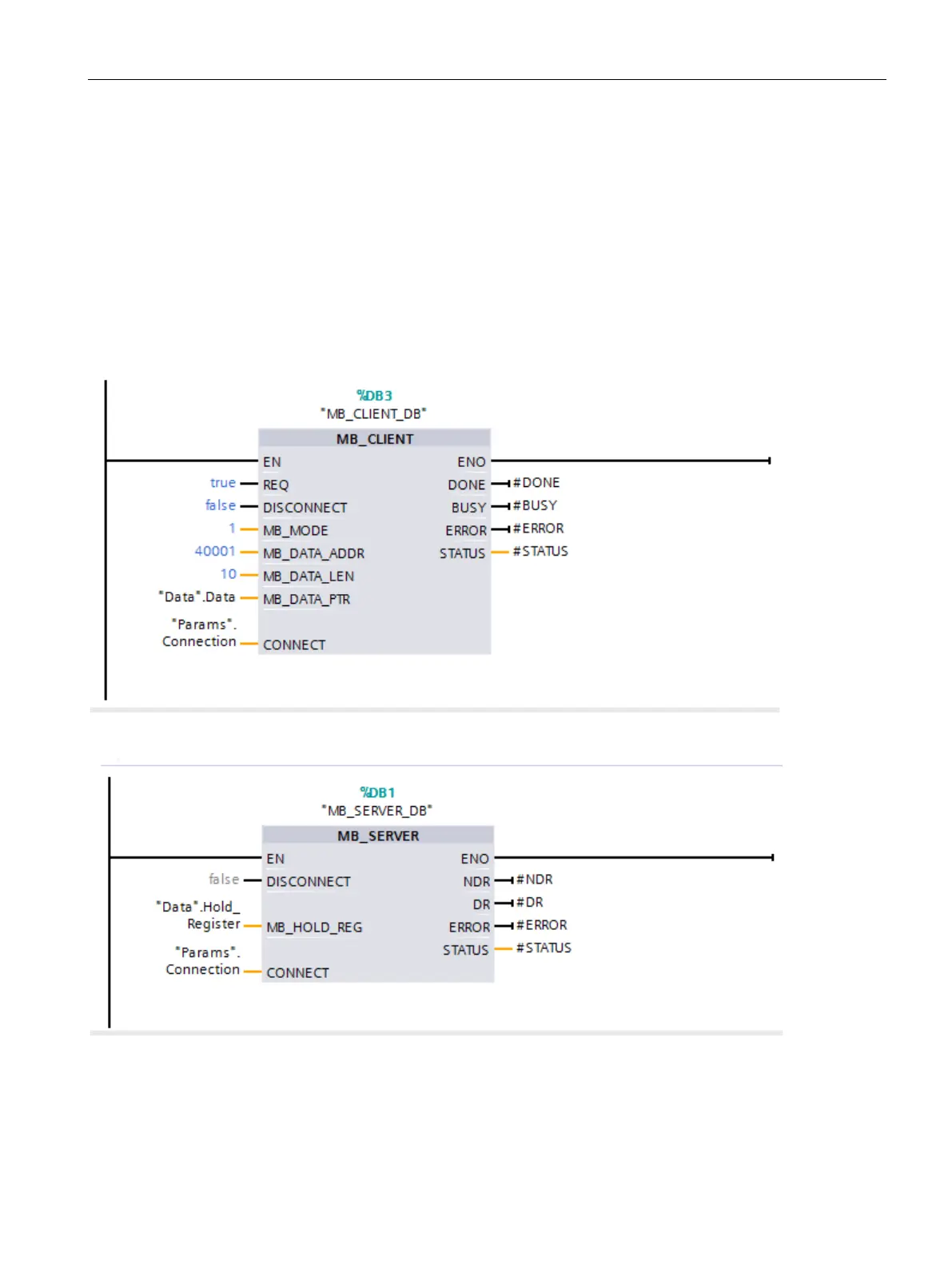

Figure 6-9 MB_CLIENT
Figure 6-10 MB_SERVER
5. Download the hardware configuration and user program to the CPU.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
