Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
105

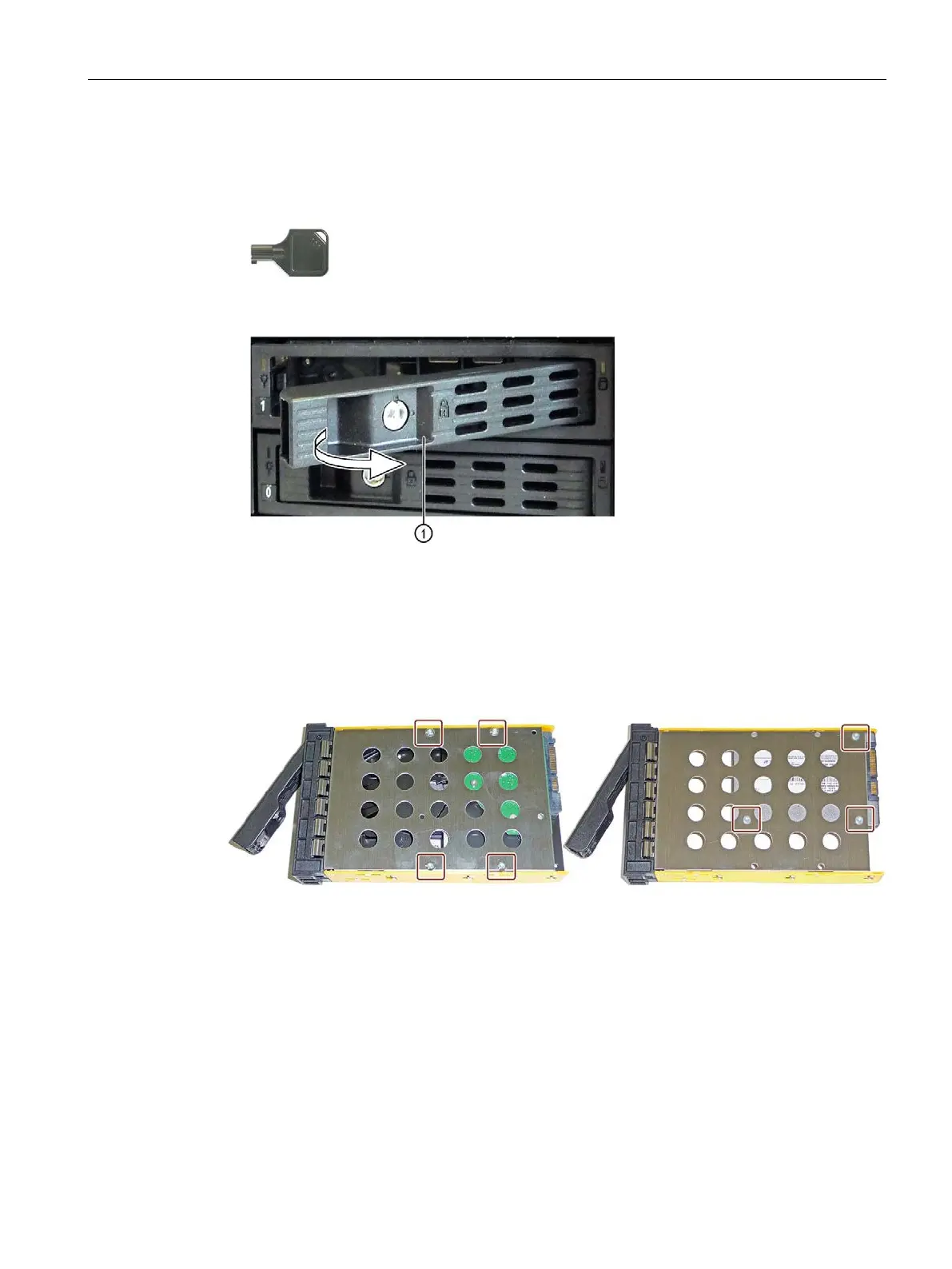

Procedure
1. Open the front panel (Page 63).
2. Open the lock of the removable tray with the appropriate key.
3. Reach into the notch
in the bracket of the removable tray and pull out the bracket in
the direction of the arrow up to a slight resistance.
The removable tray is pushed out of the drive cage slightly levering.
4. Now grip the removable tray from the front in the middle at the top and bottom, and pull
the removable tray completely out of the device.
5. Loosen the highlighted screws on the bottom of the removable tray and remove the drive.
The figure on the left shows an HDD as the drive and the figure on the right shows an
SSD.
6. Carefully insert the new drive into the removable tray.
Take care not to touch the contacts of the drive when you do this.
7. Fasten the new drive with the screws to the base of the removable tray.
Only use the original screws.
8. Carefully insert the removable tray into the drive cage of the device again.
9. Fold the tray bracket out of the removable tray as far as it will go and slide the removable
tray fully into the drive cage.
Ensure that the removable tray fits tightly in the drive cage.
