Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC847E
58 Operating Instructions, 10/2018, A5E43920357-AA
3.3.6
Securing the cables
The strain relief provided is used to prevent accidental loosening of the interface cables from
the device.
Requirement
● I/O devices are connected to the respective interfaces.
● TORX T10 screwdriver
Procedure

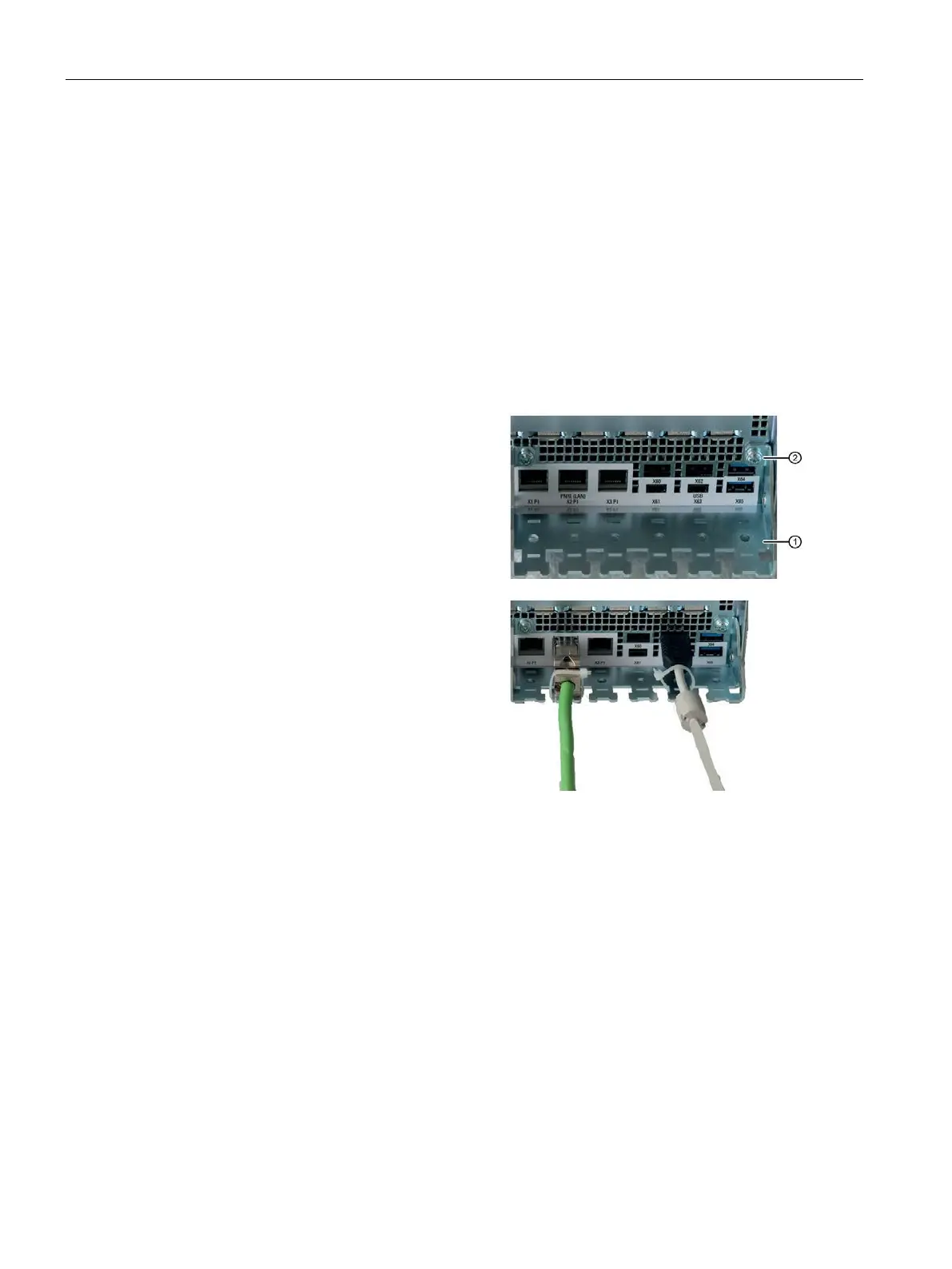

1.
Screw the strain relief
① onto the de-
vice with the fastening screw
②.
2.
Insert the detachable cable ties in the
respective openings of the strain relief
and fasten the
cables with the cable
ties.
