5.4 Operating RAID systems
SIMATIC IPC847E
74 Operating Instructions, 10/2018, A5E43920357-AA
Installing the hardware RAID adapter card
If you have ordered a device with hardware RAID system, the hardware RAID adapter card
is already installed in the delivery state.
If you want to subsequently operate your device as a hardware RAID system, you need to
install a hardware RAID adapter card.
● 4 GB main memory
● T10 screwdriver
● Components for installing the hardware RAID adapter card. Information on these
components can be obtained from your local SIEMENS representative.

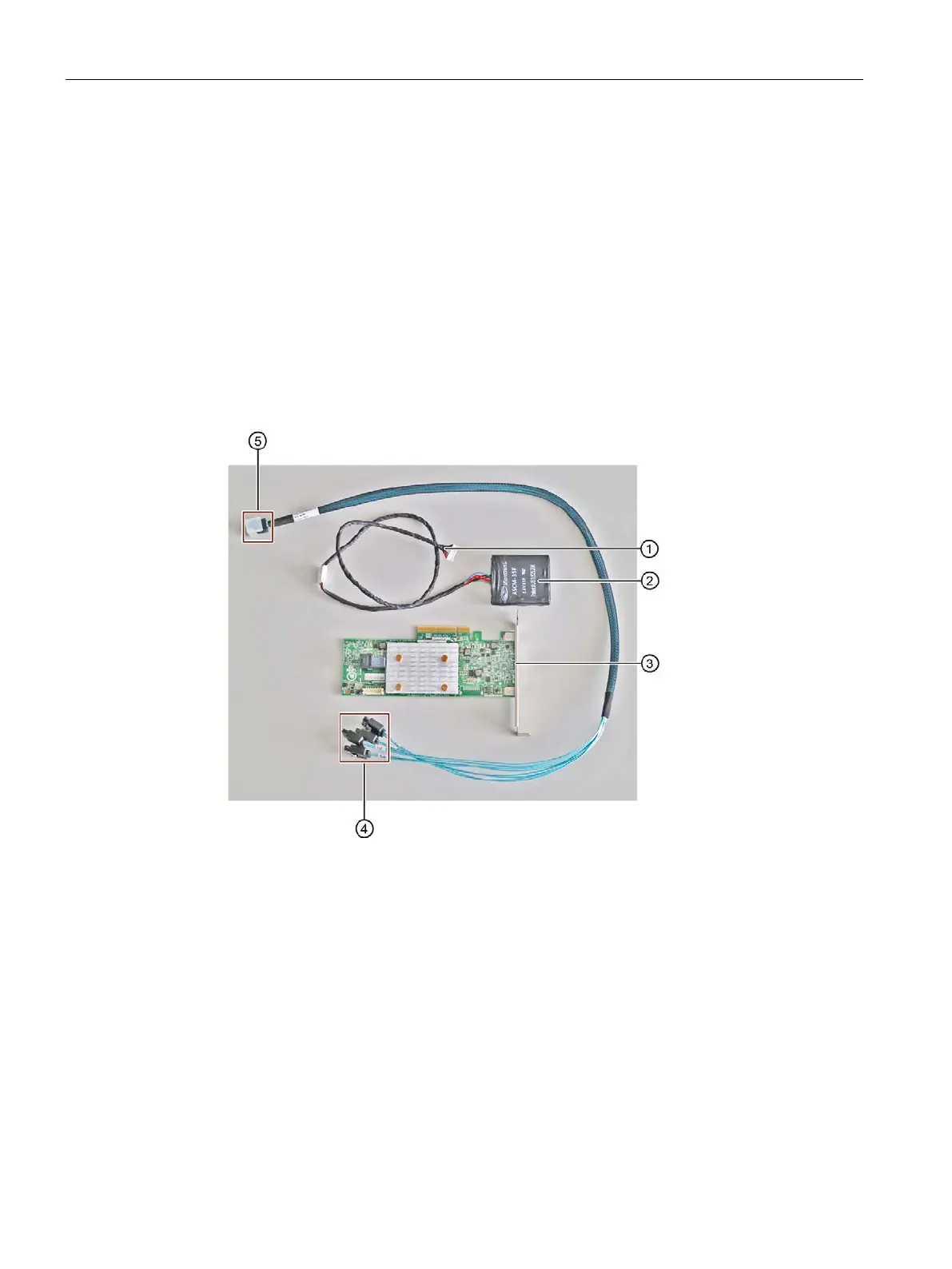

Capacitor block cable with plug
Hardware RAID adapter card
"Microsemi Adaptec SmartRAID 3151-4i ("Controller", "Host Bus Adapter")"
Adapter cable: Numbered connections to the drives
Adapter cable: Connection to the hardware RAID adapter card
