1.4 External design of the device
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
19
1.4.4

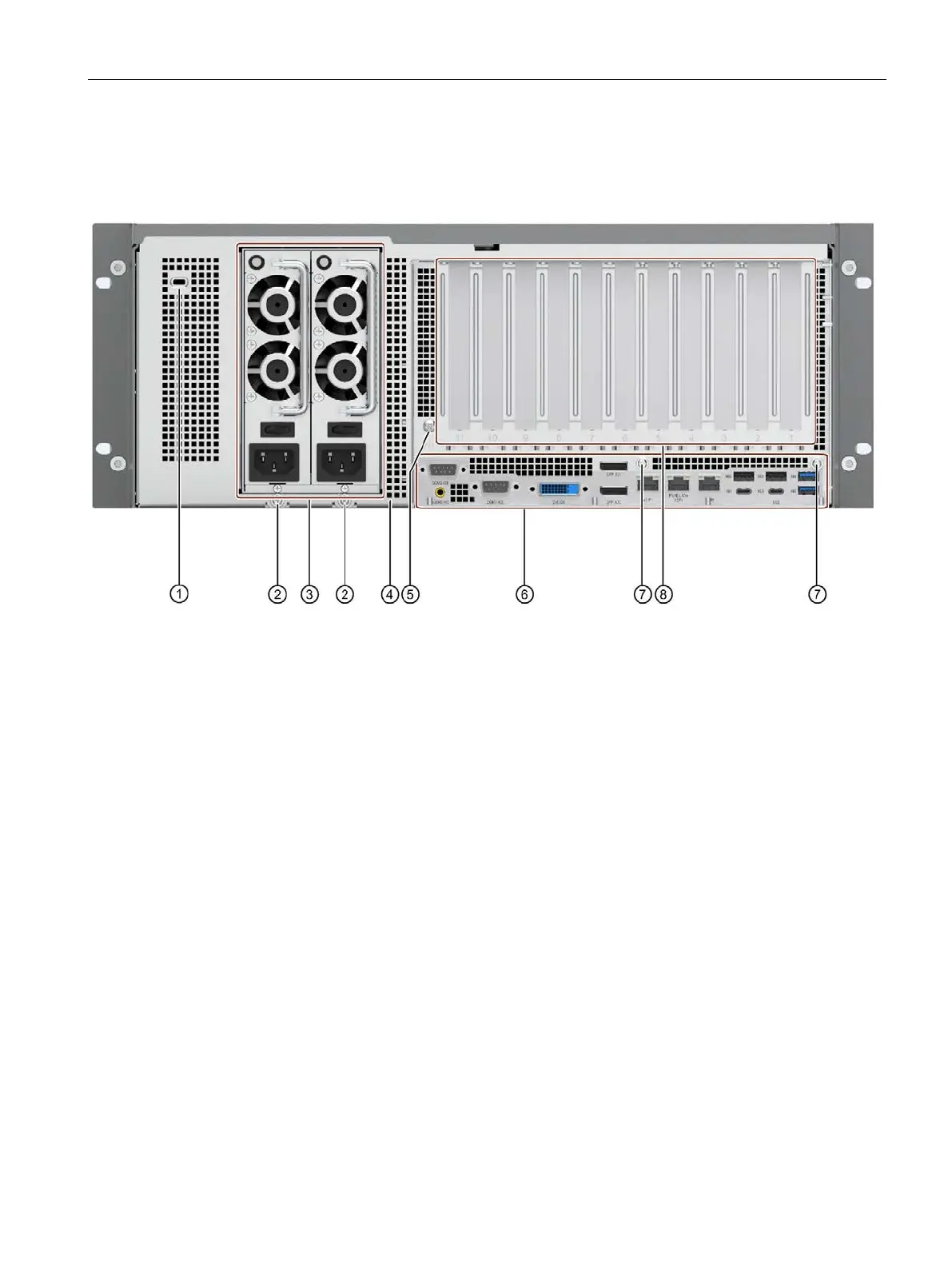

Rear of the device
①
Opening, prepared for Kensington lock
②
Fixing screws for strain reliefs
③
Power supply connections
(Page 22) (here: redundant power supply)
④
Air outlet
⑤
Connection for functional ground, see "
Connection of equipotential bonding line
(Page 50)"
⑥
Interfaces
(Page 20)
⑦
Fixing screws for strain relief (here: redundant power supply)
⑧
S
lots for expansion cards on the bus board (Page 182)
