SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
163
Dimension drawings
9
9.1
Dimension drawing of the device
Note
IEC 60297-3-100
The
systems meets the requirements for 4 HE according to IEC 60297-3-100.

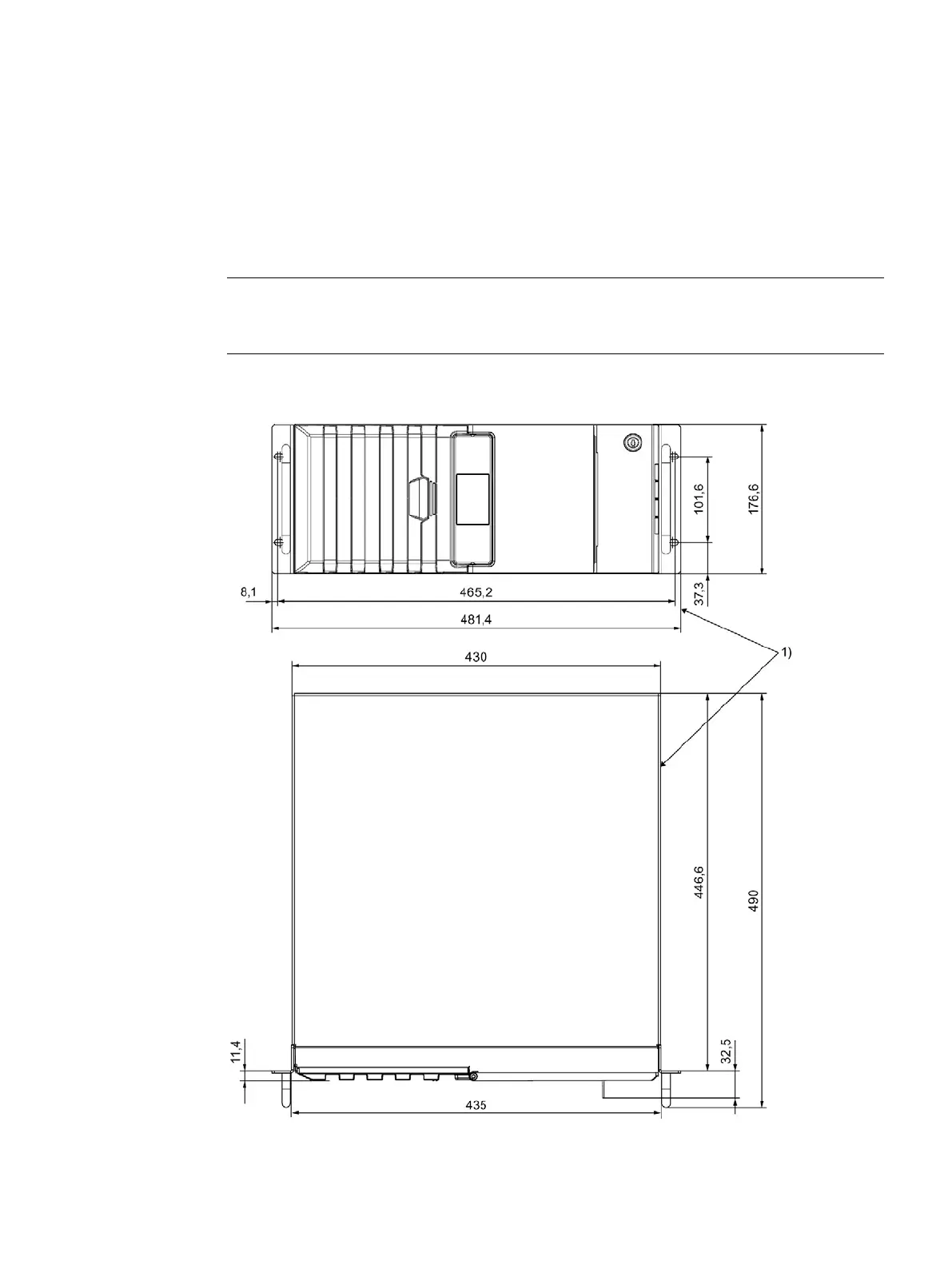

Front view and top view
1) At top when installed vertically. All dimensions in mm.
