Dimension drawings
9.4 Dimension drawing of the telescope rails
SIMATIC IPC847E
166 Operating Instructions, 10/2018, A5E43920357-AA
9.4
Dimension drawing of the telescope rails

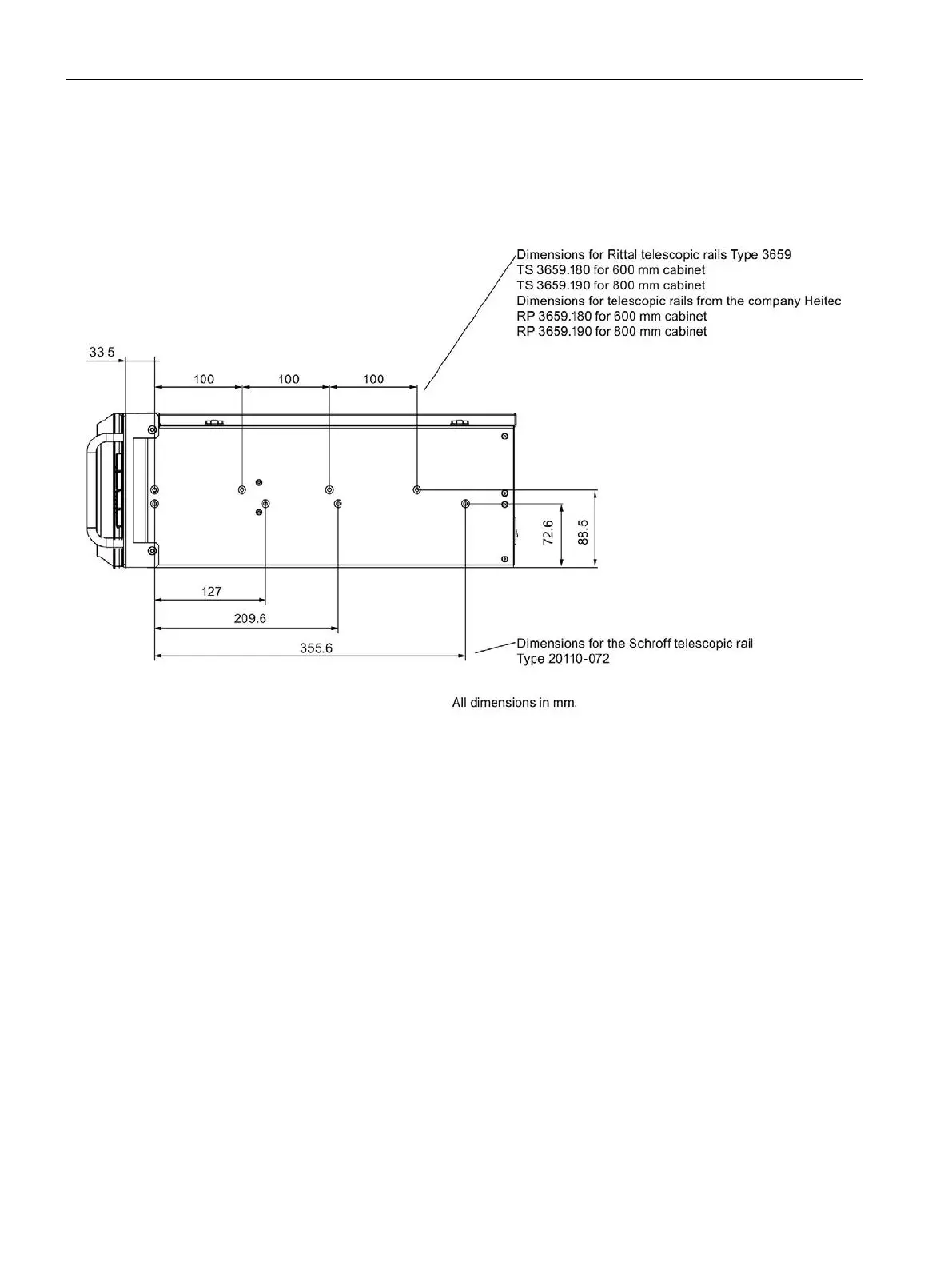

Dimensions for bore holes for telescopic rails
