Device maintenance and repair
7.3 Removing and installing hardware
SIMATIC IPC847E
132 Operating Instructions, 10/2018, A5E43920357-AA
Changing the front fan
Requirement
● The device is fully disconnected from the line voltage, see "Switching off the device
(Page 60)".
● The fan cover has been removed; see "Remove the fan cover (Page 131)".
● An original spare part, that is a front fan of the same type.

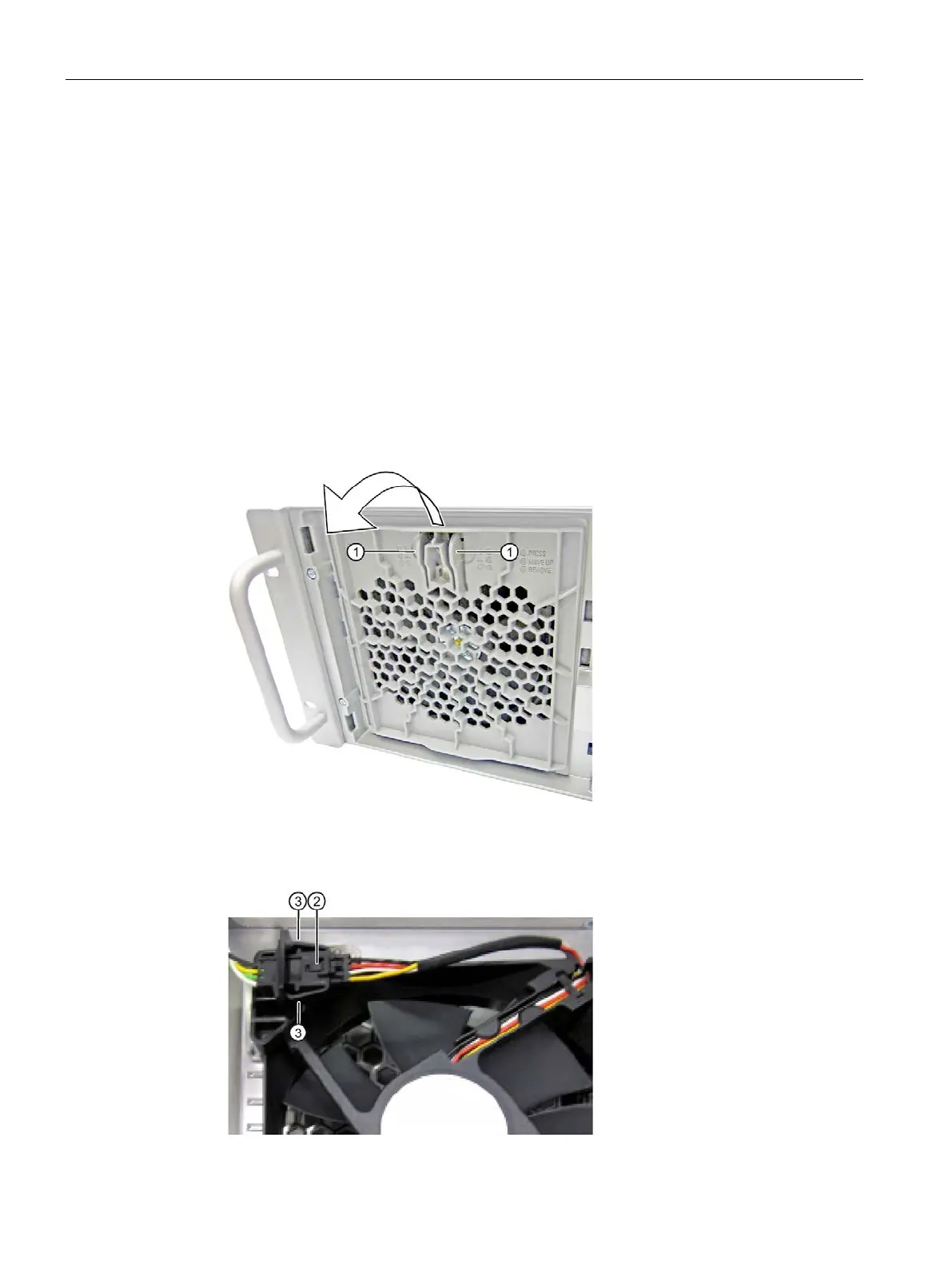

1. Press the locks ① together and keep them pressed.
2. Lift the fan support slightly upwards and remove it to the front from the front of the
enclosure.
3. Put down the fan support with the openings facing down (fan is above).
4. Press on the clip on the small fan cable plug connector
② and remove the connector
from the larger adapter plug,
