7.3 Removing and installing hardware
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
133

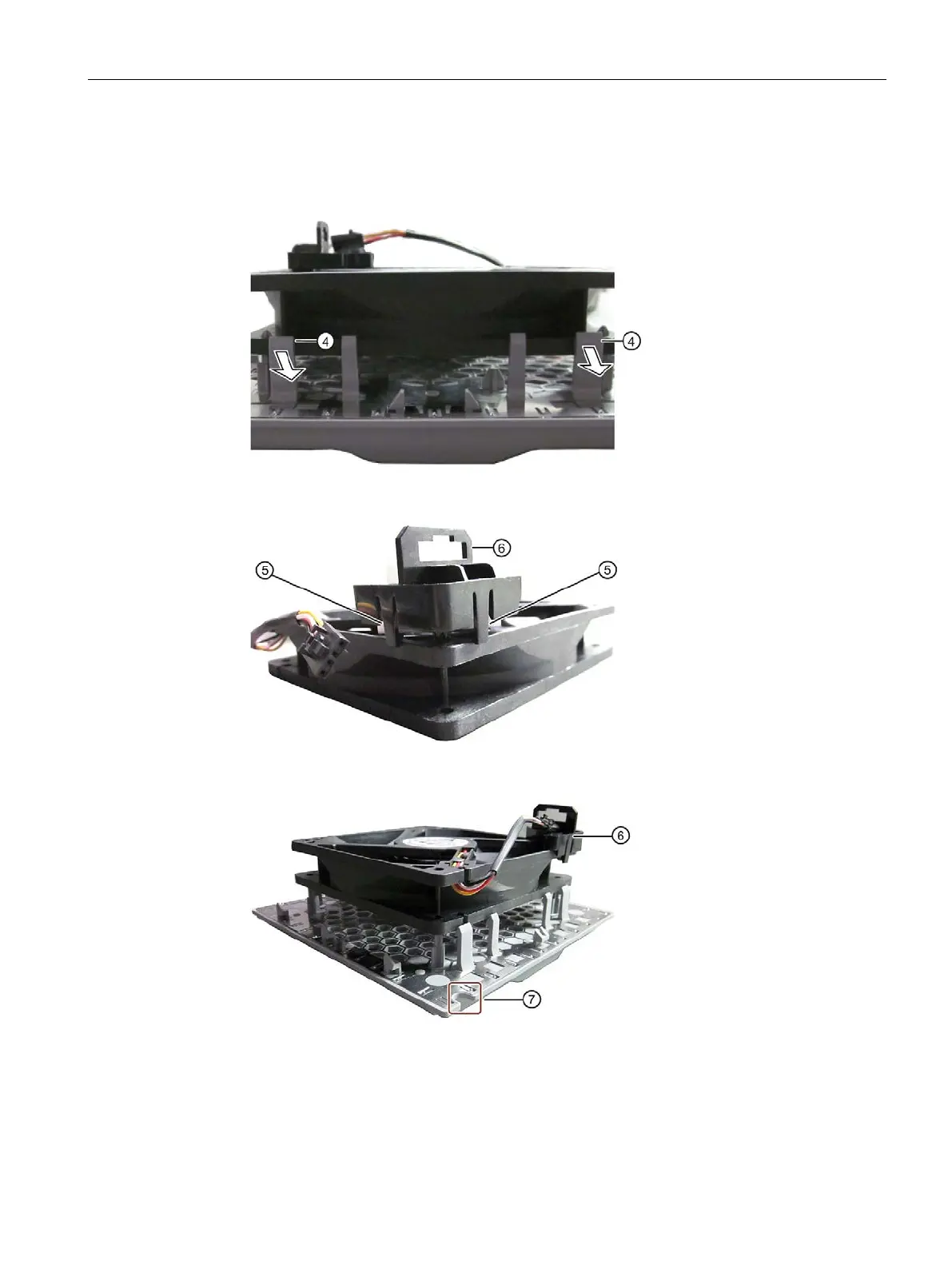

5. Press on the side of the clips ③ and loosen the adapter plug from the cable holder.
6. Loosen the locking latches
④ of the fan support one after the other at the front and rear
and remove the fan.
7. Loosen the locking latches
⑤ of the holder for the adapter plugs ⑥ and remove the
holder.
8. Take the new fan and place the holder for the adapter plug
⑥ on the new fan as seen in
the figure and snap the holder into place.
9. Then place the new fan on the fan support.
Use the highlighted positions as a guide. Notch in fan support
⑦ and holder for adapter
plug
⑥.
10. Snap the fan into place at the locking latches of the fan support
④.
