Dimension drawings
9.3 Dimension drawing of the expansion cards
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
165
9.3
Dimension drawing of the expansion cards
① L
Length of expansion card
Device with standard enclosure: 312
All dimensions in mm

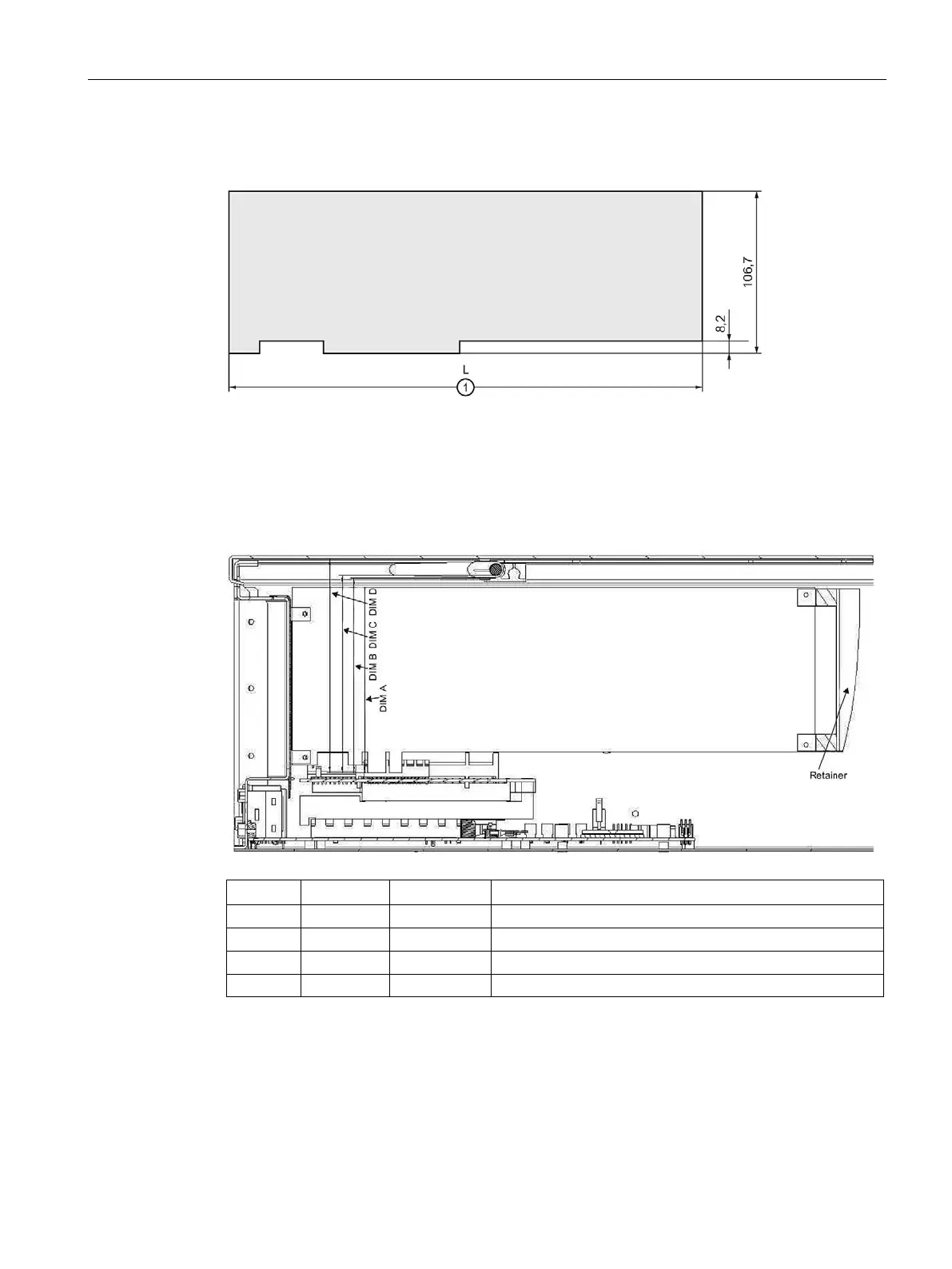

The figure below shows the maximum size of the PCI/PCI Express expansion card that can
be installed, without slot bracket and retainer.
PCI
PCIe
Meaning
DIM A
106.68 mm
111.15 mm
Lower edge of expansion card to upper edge of module
DIM B
111.94 mm
116.4 mm
Lower edge of expansion card to lower edge of retainer
DIM C 113.44 mm 117.9 mm Lower edge of expansion card to retainer
DIM D
123.54 mm
128.0 mm
Lower edge of expansion card to bottom of device cover
