1.4 External design of the device
SIMATIC IPC847E
16 Operating Instructions, 10/2018, A5E43920357-AA
1.4
External design of the device
1.4.1

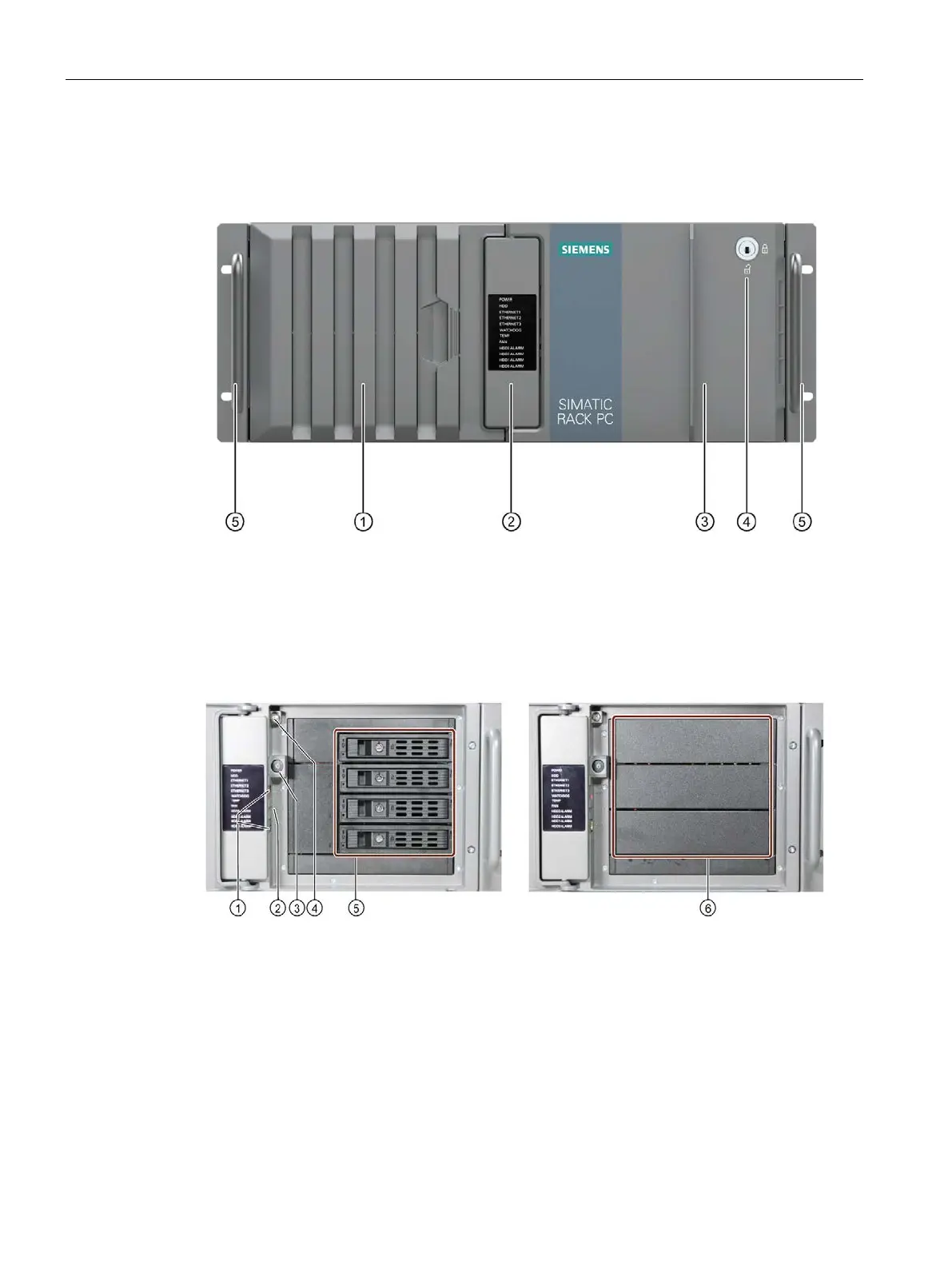

Front panel
①
Fan cover of front fan with openings for ventilation of the device (locked by front door)
②
System status displays (Page 25)
③
Front door: lockable, protection against unauthorized access
④
Lock
•
Key vertical: open
• Key horizontal: closed
⑤
19" mounting bracket
①
USB ports
②
Reset button
③
On/off button
④
Locking screw of the enclosure cover
⑤
Removable drive bays
⑥
Drive bays
See also
Interfaces (Page 20)
Operator controls (Page 23)
