Product description
1.4 External design of the device
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
27
1.4.7.2

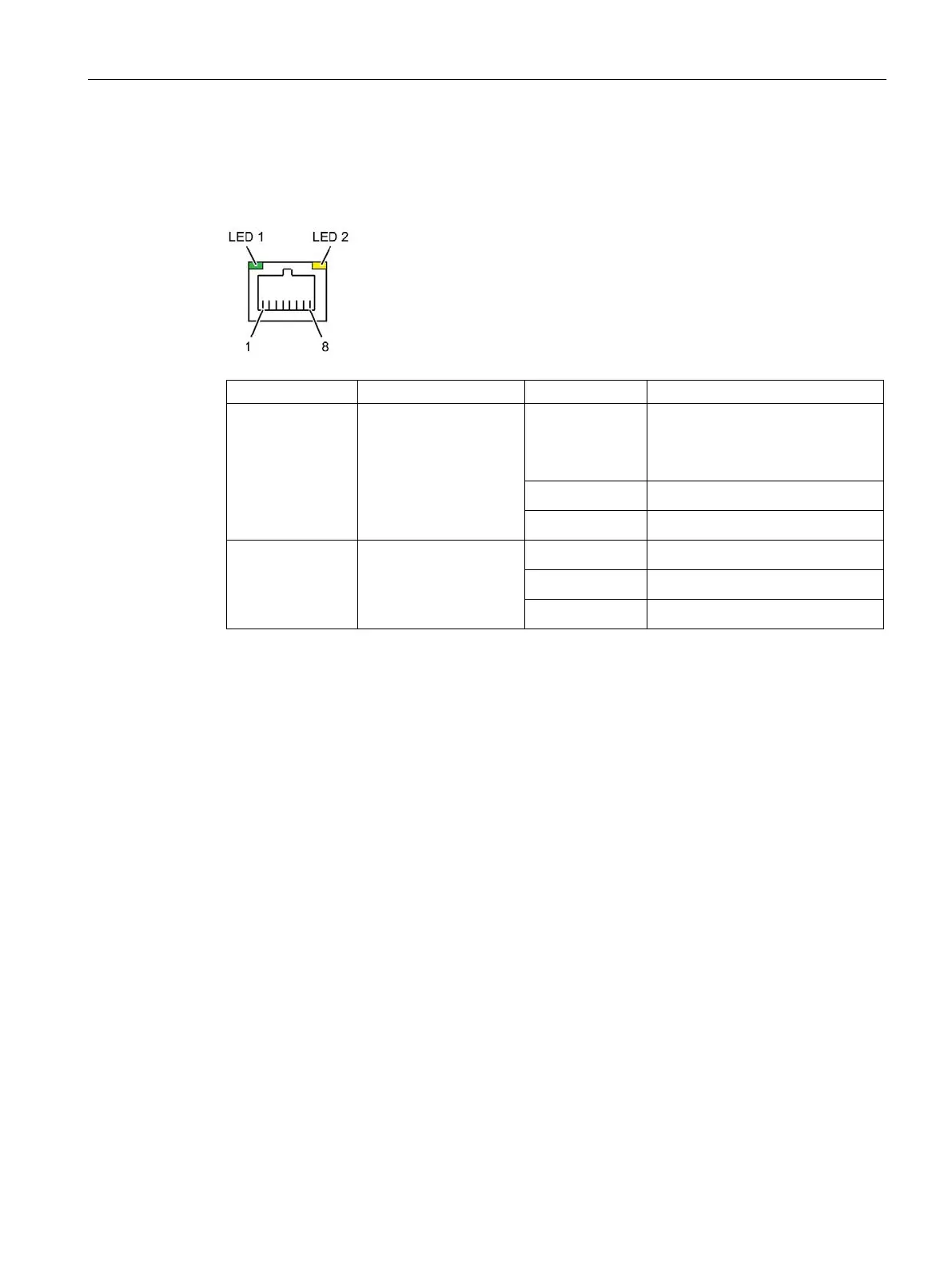

Status display of the Ethernet interface
The Ethernet interfaces are numbered on the enclosure to identify them clearly.
The numbering by the operating system can differ.
Status display
Meaning
Status
Meaning of the status
LED 1 Connection status OFF
• No cable connected
• Cable disabled
• Interface disabled
GREEN
• Active cable connected
GREEN flashing
• Data transfer active
LED 2 Data transmission rate OFF
• 10 Mbps
GREEN
• 100 Mbps
YELLOW
• 1000 Mbps
