Product description
1.4 External design of the device
SIMATIC IPC847E
Operating Instructions, 10/2018, A5E43920357-AA
17
1.4.2
Drive cage type A
The drive cage type A is located behind the front door.
Drives can be installed here in removable trays and are therefore easily accessible from the
outside, without opening the device.
The removable trays can be locked, thus protecting the drives from unauthorized access.

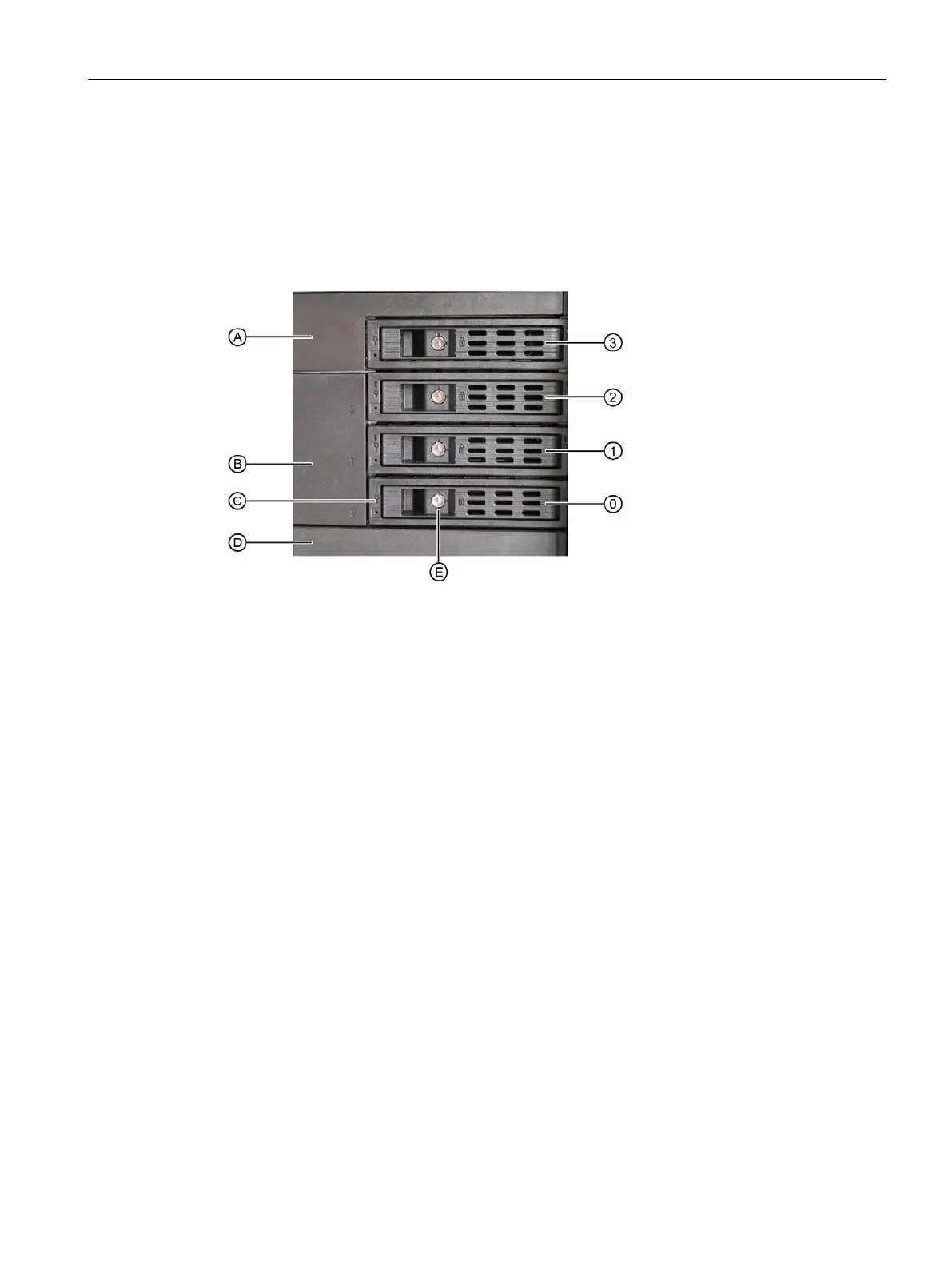

Mounting locations
(0)
Mounting l
oca-
tion 0
Mounting location for 3.5" or 2.5" drive in the removable tray or for
5.25" drive or components
(1)
Mounting
loca-
tion 1
Mounting location for 3.5" or 2.5" drive in the removable tray
(2)
Mounting l
oca-
tion 2
Mounting location for 3.5" or 2.5" drive in the removable tray
(3)
Mounting l
oca-
tion 3
Mounting location for 3.5" or 2.5" drive in the removable tray
Components
(A)
Cover or drive cover
(B)
Blanking plate
(C)
Removable tray
(D)
Cover
(E)
Lock of the removable tray
Additional information
Technical notes and information on the rated conditions are available in the section Drives in
drive cage type A / side panel (Page 100).
