6.6 Drives
SIMATIC IPC847E
100 Operating Instructions, 10/2018, A5E43920357-AA
6.6
Drives
6.6.1
Drives in drive cage type A / side panel
6.6.1.1
Permissible expansion for temperature range 0 to 40 °C
Note
Also read the information in
Mounting types (Page 47).
You can install the following drives in the Type A drive cage at various mounting locations.
You can find information on the mounting locations under:
● Drive cage type A (Page 17)
Installation options

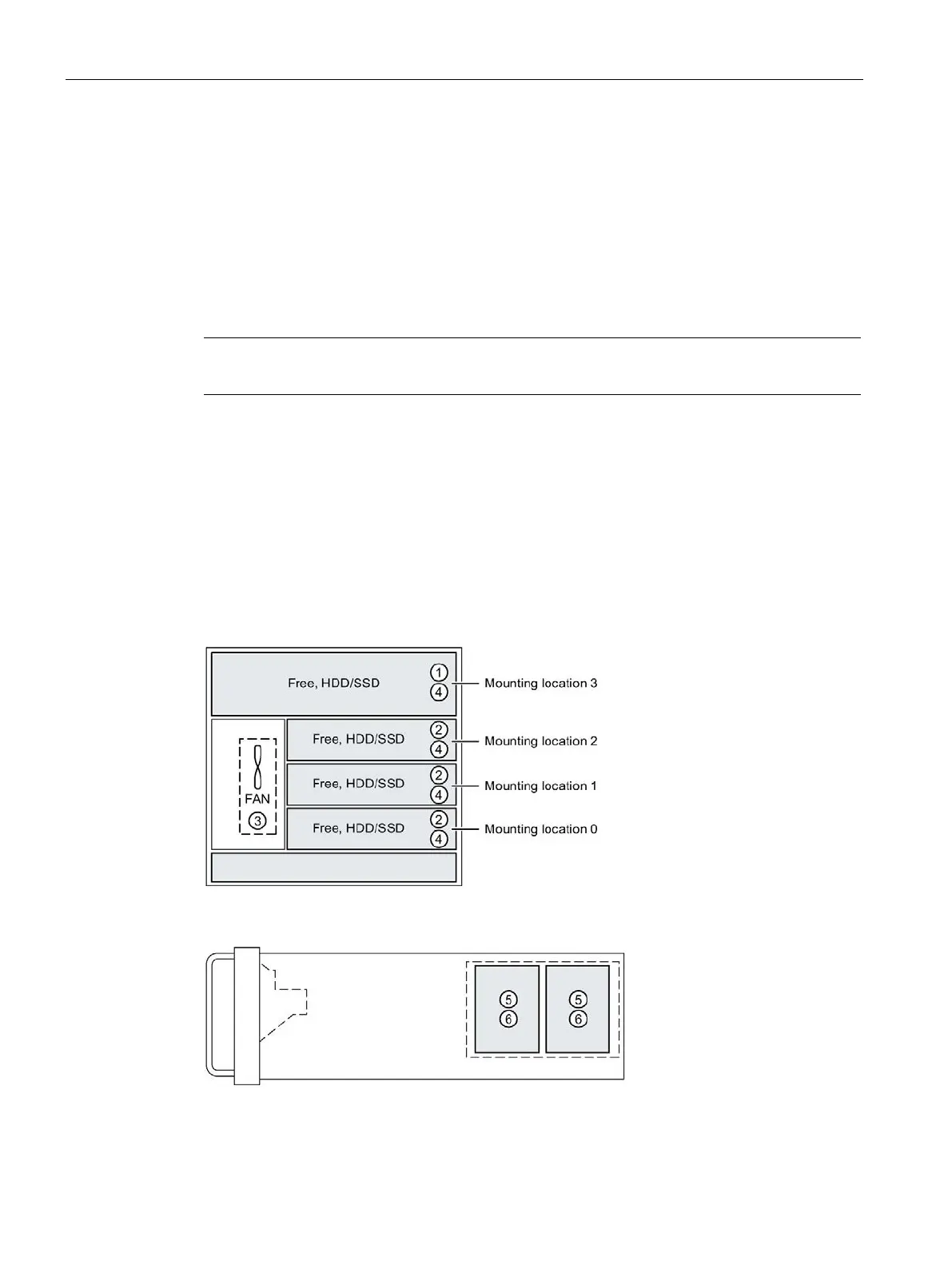

The following representations give you an overview of the installation options for drives.
①
Drive in removable tray via
5.25" adapter
②
Drive in removable tray
③
Fan on drive cage type A. The
fan is only required when more
than two drives are installed.
④
Drive type "SATA, SATA E
n-
terprise and SAS Enterprise" is
possible
⑤
Additional drive mou
nt-
ed on the right side
panel on the drive bay
plate.
⑥
Drive type "SATA,
SATA
-Enterprise" is
possible
